Angle seat valve 2 1/2 NPT stainless steel 2/2 NC up to 5.6 bar VZXA-B-TS7-2 1/2"-M2-V14T-5.6-M-90-26-V4 - Festo 8060554
For steam, compressed air and other process media, the angle seat valve VZXA-B-TS7-2 1/2"-M2-V14T-5.6-M-90-26-V4 opens and closes lines with 2 1/2 NPT connection. Medium pressure 0 to 5.6 bar, Kv 77.9 m³/h, media from -10 to 180 °C. Control function: closed via spring force, N/C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The angle seat valve VZXA-B-TS7-2 1/2"-M2-V14T-5.6-M-90-26-V4 switches media up to 5.6 bar in on/off operation, the inclined seat keeps the flow path open. The Kv value is 77.9 m³/h.
Benefits at a glance
- Medium pressure 0 to 5.6 bar
- Flow rate Kv 77.9 m³/h
- Safety Integrity Level SIL 2
- Media from -10 to 180 °C
- Actuator size 90 mm with 26 mm stroke
- Housing in cast stainless steel ASTM A351-CF3M
Applications
Festo lists the following media for VZXA-B-TS7-2 1/2"-M2-V14T-5.6-M-90-26-V4: vapour, mineral oil-based hydraulic fluid, inert gases, mineral oil, water, filtered compressed air, grade of filtration 200 µm, neutral fluids. Installation is possible in any position. The VZXA type 8060554 is approved for ATEX zones 1, 2, 21 and 22.
Technical data
| Feature | Value |
|---|---|
| Type | VZXA-B-TS7-2 1/2"-M2-V14T-5.6-M-90-26-V4 |
| Festo part number | 8060554 |
| Design | Poppet valve with diaphragm actuator |
| Type of actuation | Pneumatic |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Line connection | Threaded coupling 2 1/2 NPT to ANSI/ASME B 1.20.1 |
| Valve function | 2/2 |
| Flow direction | Non-reversible |
| Medium pressure | 0 to 5.6 bar |
| Type of reset | Mechanical spring |
| Type of piloting | Externally actuated |
| Pneumatic connection | Female thread G1/8 |
| Operating pressure | 5 to 7 bar |
| Medium | Vapour, Mineral oil-based hydraulic fluid, Inert gases, Mineral oil, Water, Filtered compressed air, grade of filtration 200 µm, Neutral fluids |
| Direction of flow | Below valve seat, for gaseous and liquid media |
| Control of medium | On/off operation |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Media temperature | -10 to 180 °C |
| Ambient temperature | 0 to 60 °C |
| Flow rate Kv | 77.9 m³/h |
| Outdoor applications | Weather-protected application areas Class C1 based on IEC 60654-1 |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material process valve housing | Cast stainless steel |
| Material number process valve housing | ASTM A351-CF3M |
| Material seals | NBR |
| Material spindle seal | PTFE |
| Material seat seal | PTFE |
| Product weight | 10700 g |
| Approval | CRN |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Certificate issuing authority | TÜV 968/V 1039.01/20 |
| Safety Integrity Level (SIL) | SIL 2 |
| Probability of Failure per Hour (PFH) | 1.36E-7 |
| Probability of Failure on Demand (PFD) | 5.95E-4 |
| Size of drive | 90 mm |
| Stroke | 26 mm |

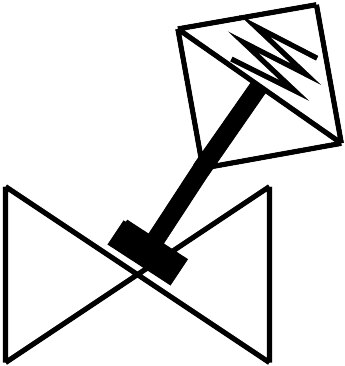

| Control function | Closed via spring force, N/C |
| Position detection | Via mechanical indicator |
| Material drive housing | Cast stainless steel |
| Material number drive housing | 1.4408 |
| Storage temperature | -10 to 60 °C |
| Degree of protection | IP65, IP67 |
| Material piston rod | High-alloy stainless steel |
| Material cover | Cast stainless steel |
| Manufacturer | Festo |
| Hersteller-Nr | VZXA-B-TS7-2 1/2"-M2-V14T-5.6-M-90-26-V4 |
| EAN | 4052568435868 |
| Zolltarifnummer | 84818073 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Thread | NPT 2 1/2 |
| Stroke [mm] | 26 |
| Seal material | NBR |
| Housing material | Stainless steel |
| Function | 2/2 |
| Actuation type | pneumatic |
| Medientemperatur [°C] | -10 bis 180 |
| Series | VZXA |
