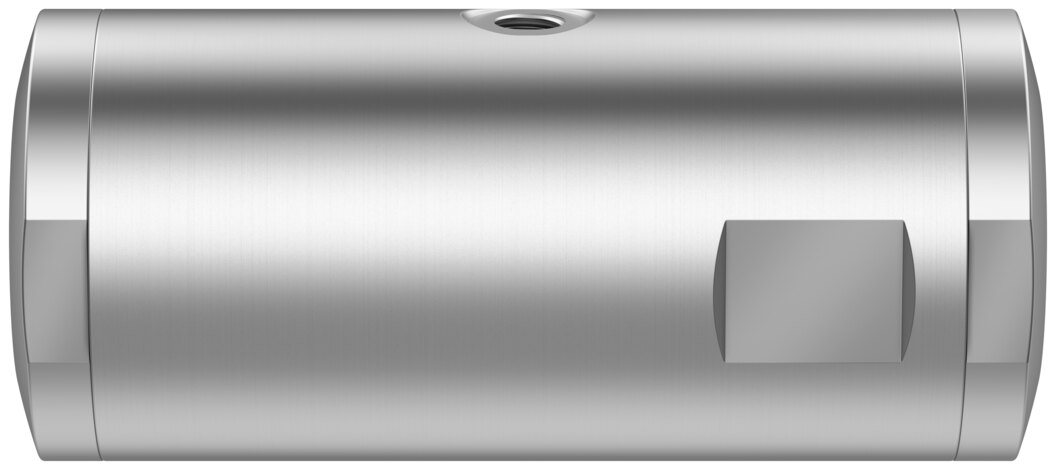

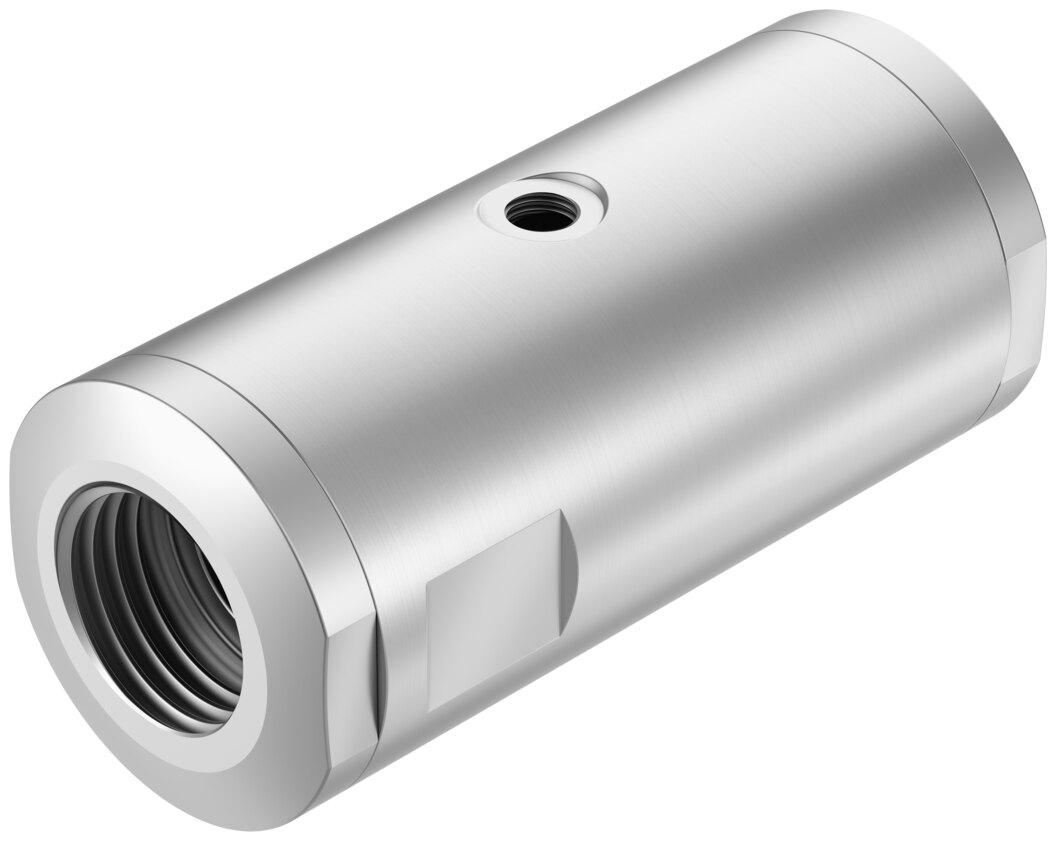

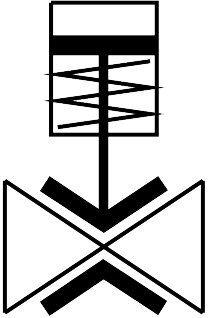

Pneumatic pinch valve 2/2 NO G1 DN 25 stainless steel VZQA-C-M22U-25-GG-V4V4E-4-EXA - Festo 3968929

Festo ✓ Original product Brand new

The pinch valve VZQA-C-M22U-25-GG-V4V4E-4-EXA shuts off the DN 25 passage via an EPDM sleeve, without internals in the flow path. Connection G1, medium pressure 0 to 4 bar. Pilot pressure 1 to 6.5 bar.

Net
€550.71
excl. VAT
Item FES-3968929
Manufacturer no. VZQA-C-M22U-25-GG-V4V4E-4-EXA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The pinch valve VZQA-C-M22U-25-GG-V4V4E-4-EXA shuts off media via an elastic sleeve, the free DN 25 passage has no internals in the flow path. It is normally open, the Kv value is 18 m³/h.

Key advantages

  • Medium pressure 0 to 4 bar
  • Kv value 18 m³/h in DN 25
  • Media temperature -5 to 90 °C
  • Switching times 250 ms on and 250 ms off
  • Housing in high-alloy stainless steel 1.4404
  • Pilot pressure (operating pressure) 1 to 6.5 bar

Applications

Festo lists the following media for VZQA-C-M22U-25-GG-V4V4E-4-EXA: compressed air to ISO 8573-1:2010 [-:-:1], water. Any mounting position. For potentially explosive areas in zones 0, 1, 2, 20, 21 and 22 (ATEX). Suitable for use with food: see supplementary material information. Suitable for battery production with reduced Cu/Zn/Ni values (F1a).

Technical data

FeatureValue
TypeVZQA-C-M22U-25-GG-V4V4E-4-EXA
Festo part number3968929
DesignPinch valve, pneumatically actuated
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveG1
Nominal size DN25
Valve function2/2-way, single solenoid, open
Flow directionReversible
Medium pressure0 to 4 bar
Note on the medium pressureUse in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media flow.
Operating pressure1 to 6.5 bar
Nominal pressure PN10
Differential pressure2.5 bar
Burst pressure16 bar
Overload pressure7.8 bar
Type of resetRebound resilience
Type of pilotingExternally actuated
Auxiliary pilot air port 12G1/8
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:1]
MediumCompressed air to ISO 8573-1:2010 [-:-:1], Water
Max. viscosity4000 mm²/s
Media temperature-5 to 90 °C
Ambient temperature-5 to 60 °C
Storage temperature5 to 20 °C
Flow rate Kv18 m³/h
Switching time on250 ms
Switching time off250 ms
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Material housingHigh-alloy stainless steel
Material number housing1.4404
Material housing coverHigh-alloy stainless steel
Material sealsFluoro rubber
Material shut-off elementEPDM
Product weight1227 g
Explosion protectionZone 0 (ATEX), Zone 1 (ATEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Suitable for use with foodSee supplementary material information
Material bowlPPS
Weight1.2 kg
ManufacturerFesto
Hersteller-NrVZQA-C-M22U-25-GG-V4V4E-4-EXA
EAN4052568477288
Zolltarifnummer84818073
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4404
ThreadG 1
Nominal size DN [mm]25
Nominal pressure PN [bar]10
Seal materialFPM
Housing materialStainless steel 1.4404
Function2/2 open monostable
Actuation typepneumatic
Medientemperatur [°C]-5 bis 90
SeriesVZQA
