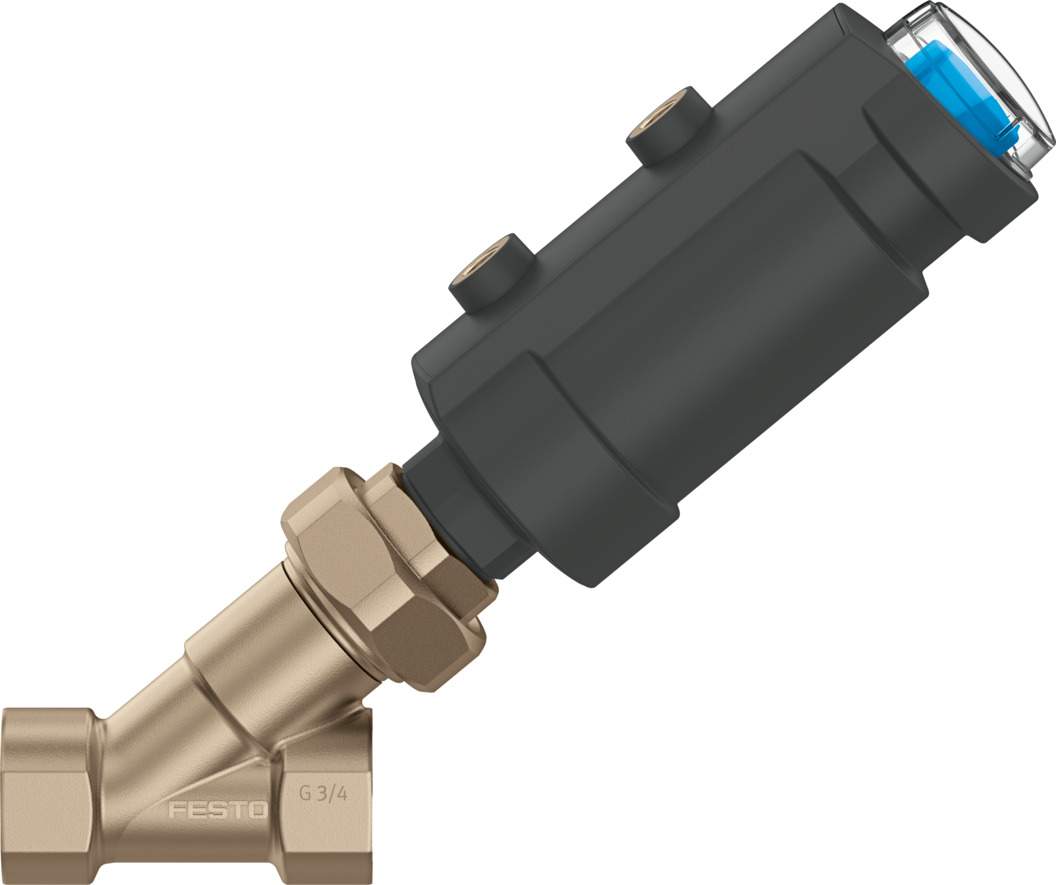

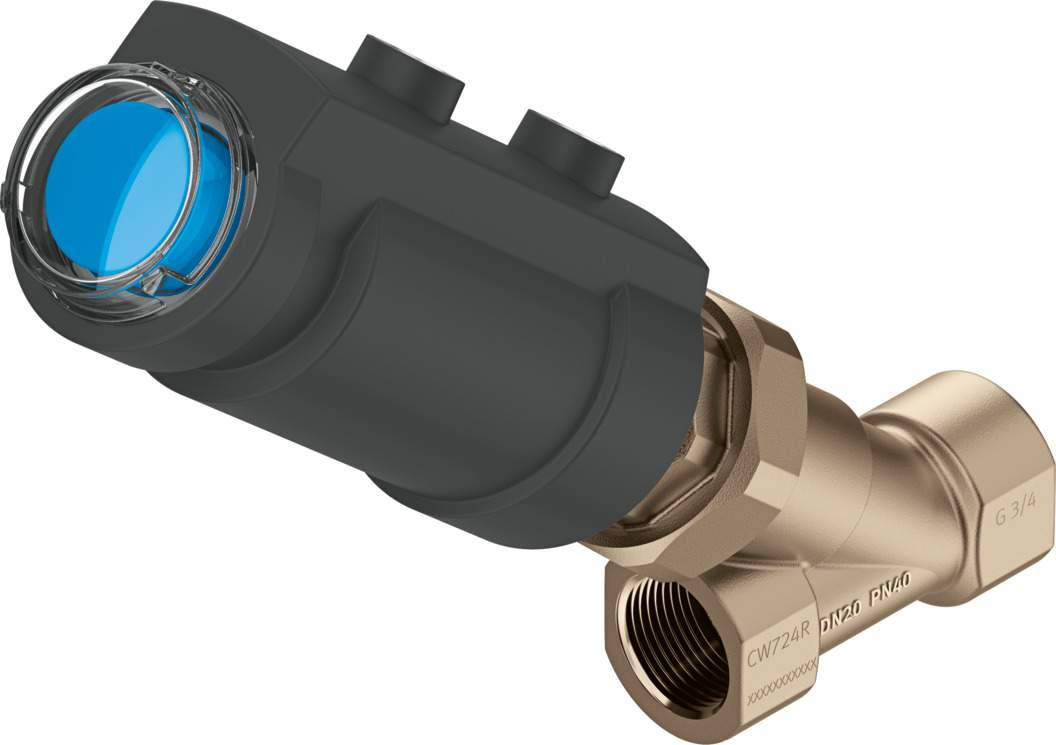

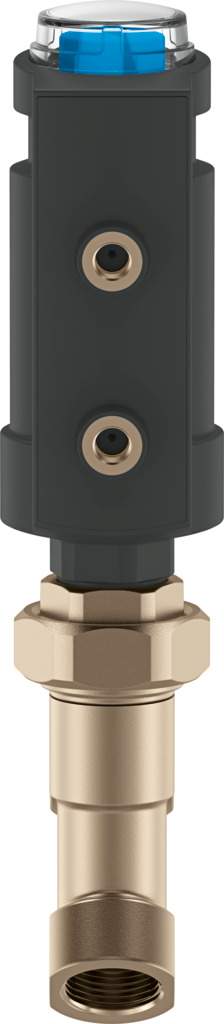

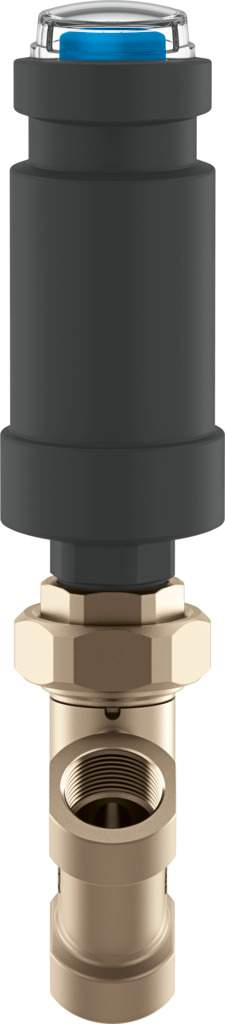

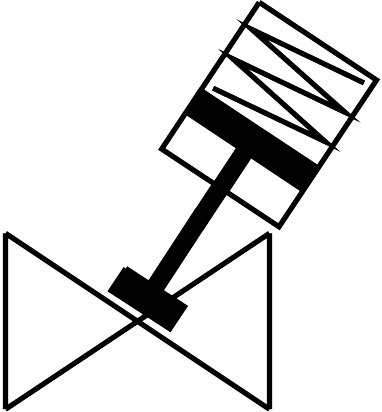

Angle seat valve G1/2 brass 2/2 NC up to 16 bar VZXA-A-TS6-13-M6-B1T-16-K-46-17-PR-PM - Festo 8111583
The angle seat valve VZXA-A-TS6-13-M6-B1T-16-K-46-17-PR-PM with piston drive opens and closes lines with G1/2 connection. Medium pressure 0 to 16 bar, Kv 4.9 m³/h, media from -10 to 60 °C. Control function: closed via reduced spring force, N/C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The angle seat valve VZXA-A-TS6-13-M6-B1T-16-K-46-17-PR-PM switches media up to 16 bar in on/off operation, the inclined seat keeps the flow path open. The Kv value is 4.9 m³/h.
Benefits at a glance
- Medium pressure 0 to 16 bar
- Flow rate Kv 4.9 m³/h
- Housing in brass CW724R
- Media temperature -10 to 60 °C
- Actuator size 46 mm with 17 mm stroke
- Degree of protection IP65, IP67
Applications
Approved media: vapour, inert gases, filtered compressed air, grade of filtration 200 µm. Any mounting position.
Technical data
| Feature | Value |
|---|---|
| Type | VZXA-A-TS6-13-M6-B1T-16-K-46-17-PR-PM |
| Festo part number | 8111583 |
| Design | Poppet valve with piston drive |
| Type of actuation | Pneumatic |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Line connection | Threaded coupling G1/2 to DIN ISO 228 |
| Valve function | 2/2 |
| Flow direction | Non-reversible |
| Medium pressure | 0 to 16 bar |
| Type of reset | Mechanical spring |
| Type of piloting | Externally actuated |
| Pneumatic connection | Female thread G1/8 |
| Operating pressure | 5 to 7 bar |
| Medium | Vapour, Inert gases, Filtered compressed air, grade of filtration 200 µm |
| Direction of flow | Above valve seat, for gaseous media |
| Control of medium | On/off operation |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Media temperature | -10 to 60 °C |
| Ambient temperature | 0 to 60 °C |
| Flow rate Kv | 4.9 m³/h |
| Outdoor applications | Weather-protected application areas Class C1 based on IEC 60654-1 |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material process valve housing | Brass |
| Material number process valve housing | CW724R |
| Material seals | Fluoro rubber |
| Material spindle seal | PTFE |
| Material seat seal | PTFE |
| Product weight | 1096 g |
| Size of drive | 46 mm |
| Stroke | 17 mm |
| Control function | Closed via reduced spring force, N/C |
| Position detection | Via mechanical indicator |
| Material drive housing | Reinforced PA |
| Storage temperature | -10 to 60 °C |
| Degree of protection | IP65, IP67 |
| Material piston rod | High-alloy stainless steel |
| Material cover | Reinforced PA |
| Manufacturer | Festo |
| Hersteller-Nr | VZXA-A-TS6-13-M6-B1T-16-K-46-17-PR-PM |
| EAN | 4052568550509 |
| Zolltarifnummer | 84818073 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Brass |
| Thread | G 1/2 |
| Stroke [mm] | 17 |
| Seal material | FPM |
| Housing material | Brass |
| Function | 2/2 |
| Actuation type | pneumatic |
| Medientemperatur [°C] | -10 bis 60 |
| Series | VZXA |
