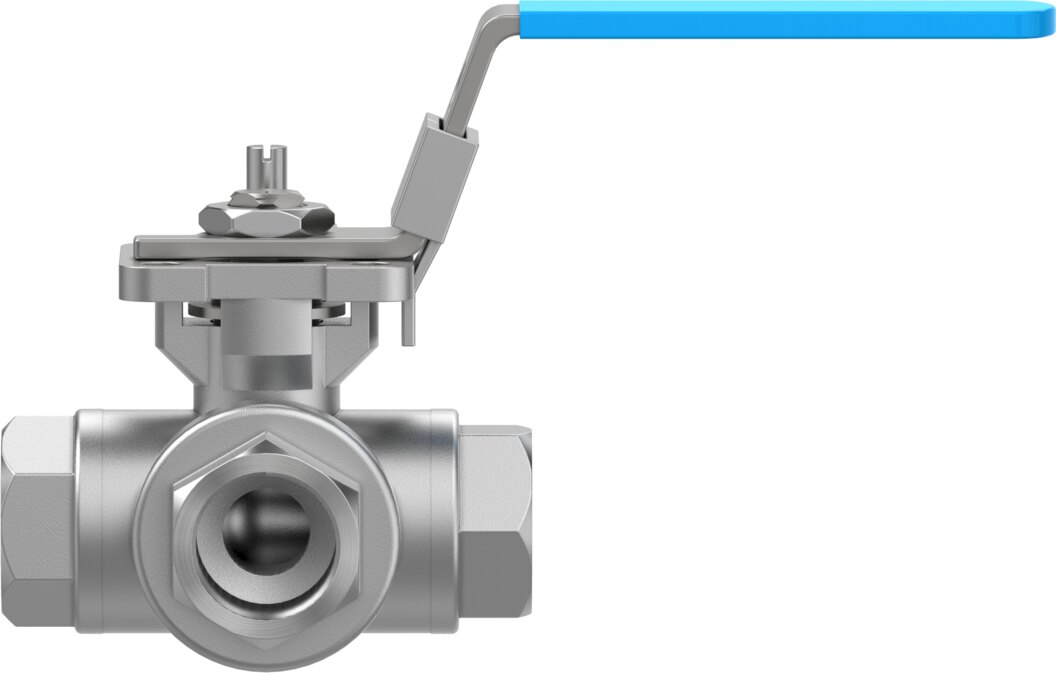

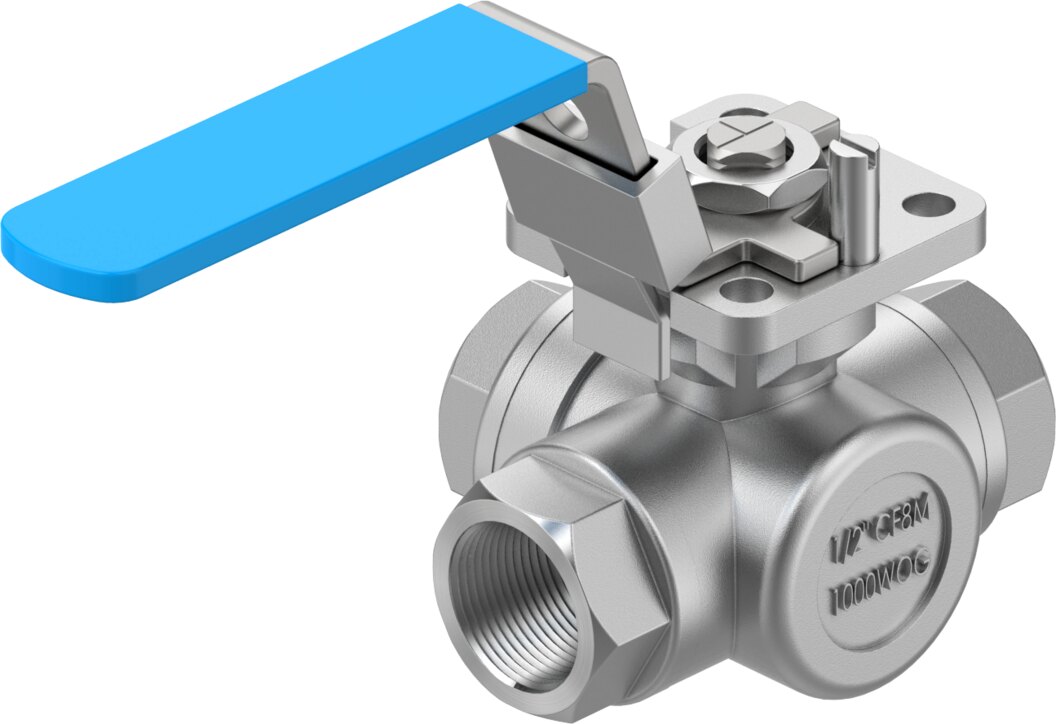

3-way ball valve T-port stainless steel 1/2 NPT DN 15 PN 63 VZBE-1/2-T-63-F-3T-F04-M-V15V15 - Festo 8096953

Festo ✓ Original product Brand new

Shut-off and diverting in DN 15 lines up to PN 63: the 3-way ball valve with T-bore VZBE-1/2-T-63-F-3T-F04-M-V15V15 in cast stainless steel with connection 1/2 NPT. It accepts a quarter turn actuator via the F04 flange pattern to ISO 5211. Media from -20 to 200 °C.

Net
€140.67
excl. VAT
Item FES-8096953
Manufacturer no. VZBE-1/2-T-63-F-3T-F04-M-V15V15
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For process lines DN 15 up to PN 63, the 3-way ball valve with T-bore VZBE-1/2-T-63-F-3T-F04-M-V15V15 provides shut-off with 1/2 NPT connection and ISO 5211 flange.

Key advantages

  • Valve rated for nominal pressure PN 63
  • Housing and ball in cast stainless steel 1.4408
  • Media temperature -20 to 200 °C
  • ATEX explosion protection for zones 1, 2, 21 and 22
  • Mounting flange F04 to ISO 5211 for direct actuator mounting
  • Breakaway torque 9.6 Nm at nominal pressure as basis for actuator sizing

Applications

Suitable for vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Mounting position is freely selectable. ATEX explosion protection: zones 1, 2, 21 and 22. For automation, size the quarter turn actuator according to the breakaway torque.

Technical data

FeatureValue
TypeVZBE-1/2-T-63-F-3T-F04-M-V15V15
Festo part number8096953
DesignT-bore
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve1/2 NPT
Switching position indicatorSlot direction = flow direction
Flange hole patternF04
Inside diameter12.7 mm
Nominal size DN15
Valve function3/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN9.6 Nm
Based on standardISO 5211
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20 to 200 °C
Flow rate Kv T hole angled2.8 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408
Material seat sealPTFE
Material sealsPTFE
Material ballCast stainless steel
Material number ball1.4408
Material shaftHigh-alloy stainless steel
Material number shaft1.4401
Product weight700 g
ApprovalCRN
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
ManufacturerFesto
Hersteller-NrVZBE-1/2-T-63-F-3T-F04-M-V15V15
EAN4052568453558
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
ThreadNPT 1/2
Nominal size DN [mm]15
Nominal pressure PN [bar]63
Seal materialPTFE
Housing materialStainless steel 1.4408
Function3/2
Actuation typeMechanical
Medientemperatur [°C]-20 bis 200
NormISO 5211
SeriesVZBE
