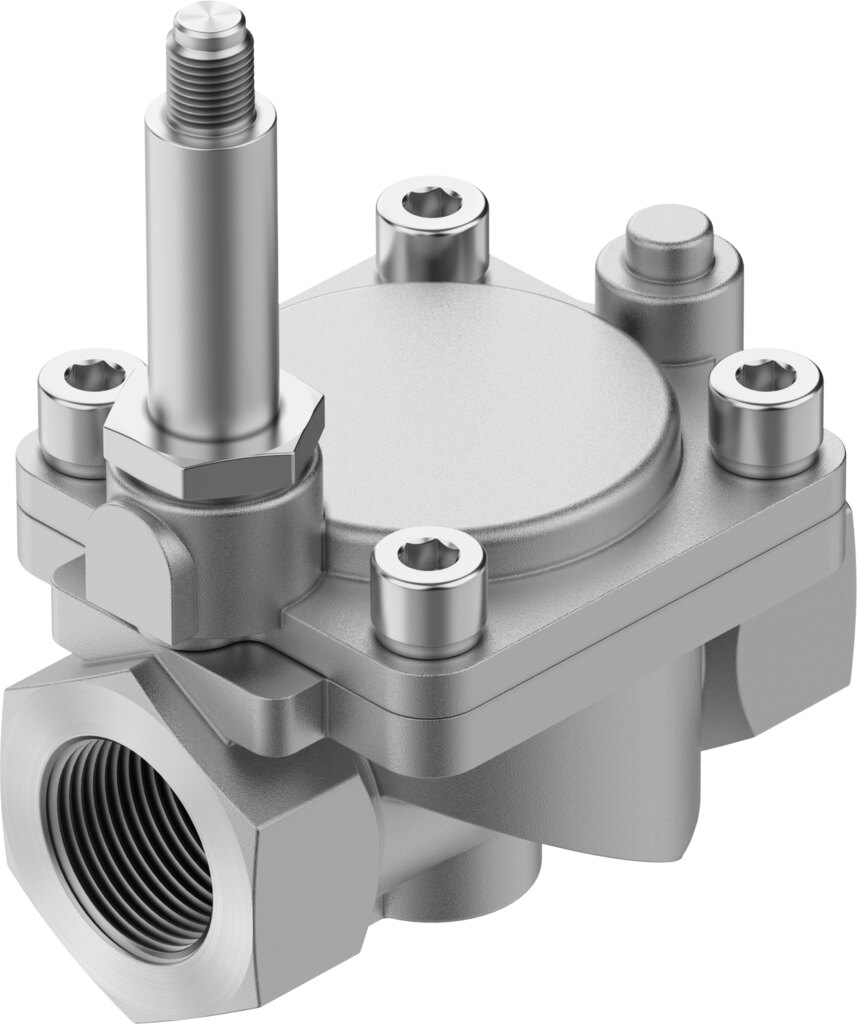

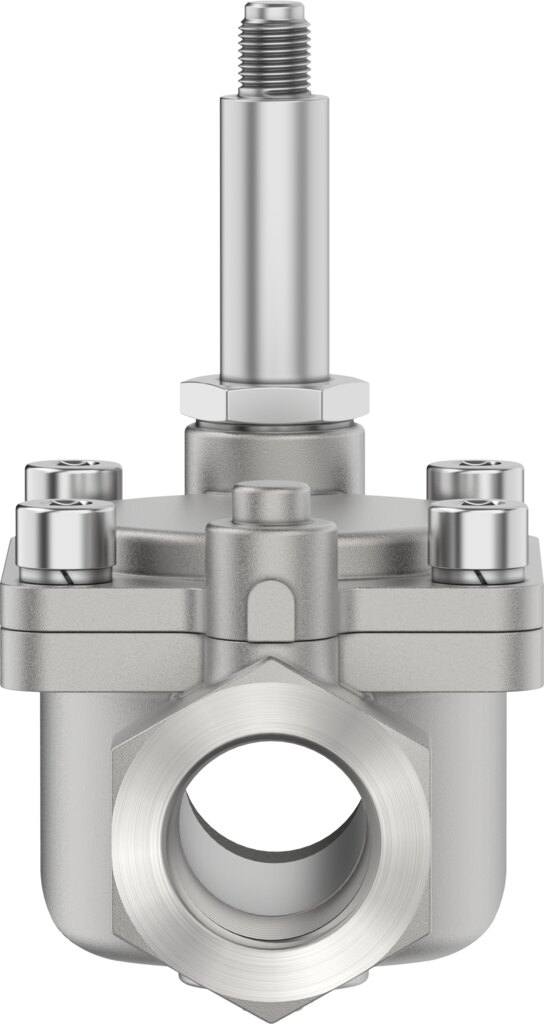

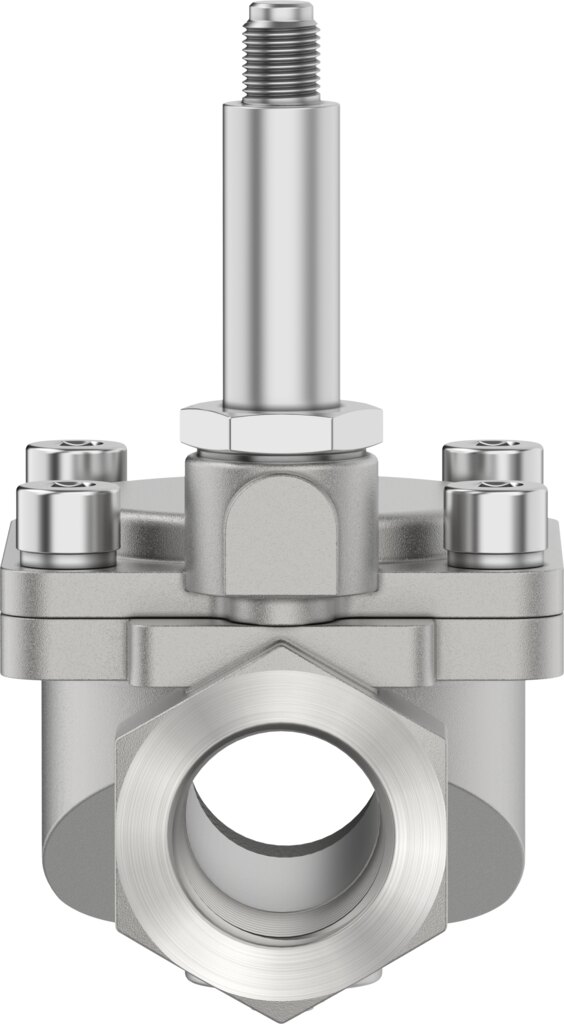

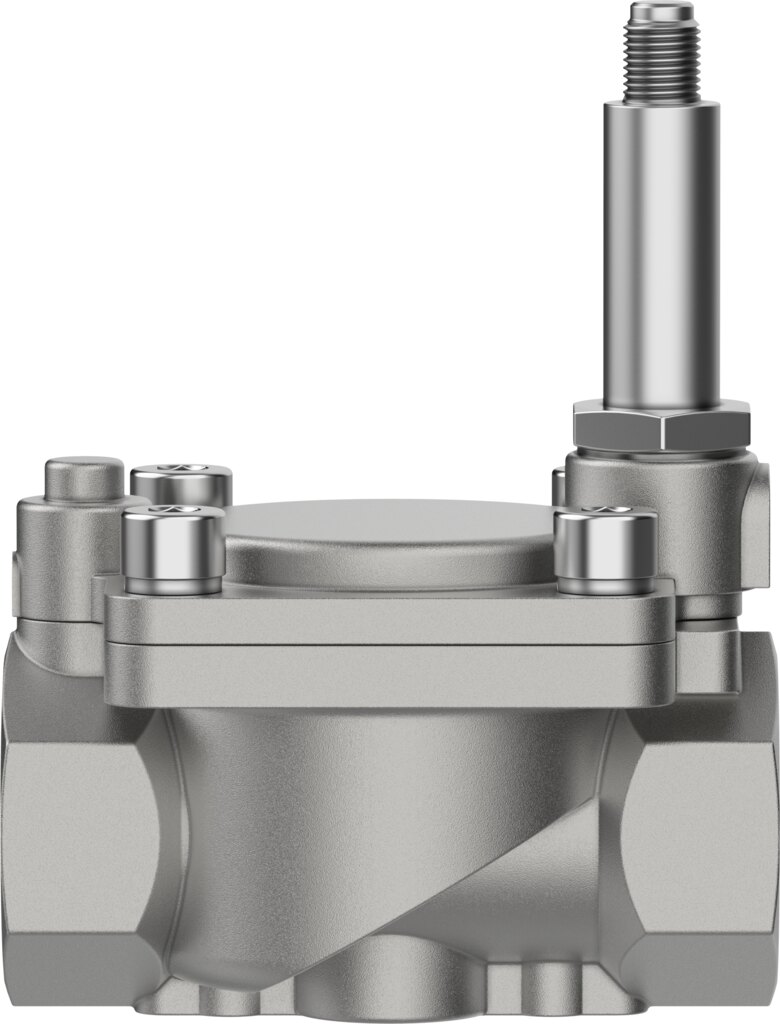

2/2-way solenoid valve NC, 3/4 NPT, nominal size 25 mm, stainless steel, NBR seals, coil sold separately VZWM-L-M22C-N34-F5-R1 - Festo 546173

Festo ✓ Original product Brand new

The Festo solenoid valve VZWM-L-M22C-N34-F5-R1 switches compressed air, inert gases, water and neutral liquids in the range 0.5 to 10 bar. Flow rate Kv 8.5 m³/h, standard nominal flow rate 10000 l/min, port 3/4 NPT. Housing cast stainless steel, NBR seals.

Net
€332.75
excl. VAT
Item FES-546173
Manufacturer no. VZWM-L-M22C-N34-F5-R1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

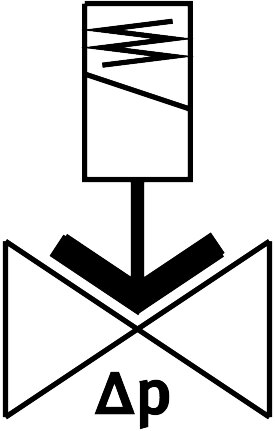

The solenoid valve VZWM-L-M22C-N34-F5-R1 switches compressed air, inert gases, water and neutral liquids at medium pressure for gases 0.5 to 10 bar and reaches a flow rate Kv of 8.5 m³/h. As a servo-controlled diaphragm valve, the VZWM-L-M22C-N34-F5-R1 needs a pressure differential of at least 0.5 bar.

Benefits

  • Servo-controlled: medium pressure for gases 0.5 to 10 bar, minimum pressure differential 0.5 bar
  • Flow rate Kv 8.5 m³/h, standard nominal flow rate 10000 l/min
  • Switching time 15 ms on, 12 ms off
  • Solenoid coil type MH available separately as an accessory
  • Housing material cast stainless steel, seals NBR

Applications

Approved media for the VZWM-L-M22C-N34-F5-R1: compressed air, inert gases, water and neutral liquids. Liquids up to 22 mm²/s viscosity. Installation of the VZWM-L-M22C-N34-F5-R1: inline installation, mounting position preferably upright. Permissible for the VZWM-L-M22C-N34-F5-R1: ambient temperature -10 to 60 °C, medium temperature -10 to 60 °C.

Technical data

FeatureValue
TypeVZWM-L-M22C-N34-F5-R1
Festo part number546173
DesignDiaphragm valve, servo-controlled
Type of actuationElectrical
Sealing principleSoft
Mounting positionPreferably upright
Type of mountingInline installation
Fitting connection3/4 NPT
Electrical connectionSolenoid coil type MH-..., coil can be ordered as an accessory
Nominal size25 mm
Valve function2/2-way, single solenoid, closed
Flow directionNon-reversible
MediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Water, Neutral fluids
Medium pressure, liquid media0.5 to 6 bar
Medium pressure, gaseous media0.5 to 10 bar
Burst pressure40 bar
Overload pressure35 bar
Pressure differential0.5 bar
Type of pilotingPiloted
Max. viscosity22 mm²/s
Medium temperature-10 to 60 °C
Medium temperature, liquid media5 to 50 °C
Ambient temperature-10 to 60 °C
Flow rate Kv8.5 m³/h
Standard nominal flow rate (to DIN 1343)10000 l/min
Switching time on15 ms
Switching time on, liquid media420 ms
Switching time off12 ms
Switching time off, liquid media950 ms
B value0.5
C value39 l/sbar
Note on materialsRoHS compliant
PWIS conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4581
Material sealsNBR
Material armature tubeHigh-alloy steel
CE marking (see declaration of conformity)To EU Pressure Equipment Directive
UKCA marking (see declaration of conformity)To UK Pressure Equipment Regulations
Corrosion resistance class CRC3 - High corrosion stress
Max. tightening torque, cover screw30 Nm
Max. tightening torque, connecting thread200 Nm
Max. tightening torque, coil fastening2 Nm
Weight1.2 kg
ManufacturerFesto
Hersteller-NrVZWM-L-M22C-N34-F5-R1
EAN4052568352349
Zolltarifnummer84818087
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4581
ThreadNPT 3/4
Nominal size DN [mm]25
Seal materialNBR
Housing materialStainless steel 1.4581
Function2/2 closed monostable
Flow rate [l/min]10000
Actuation typeElectrical
Medientemperatur [°C]-10 bis 60
SeriesVZWM
Betriebsdruck max [bar]10
Pneumatic connectionNPT 3/4
Temperaturbereich-10-60 °C
Temperature (max.)60
