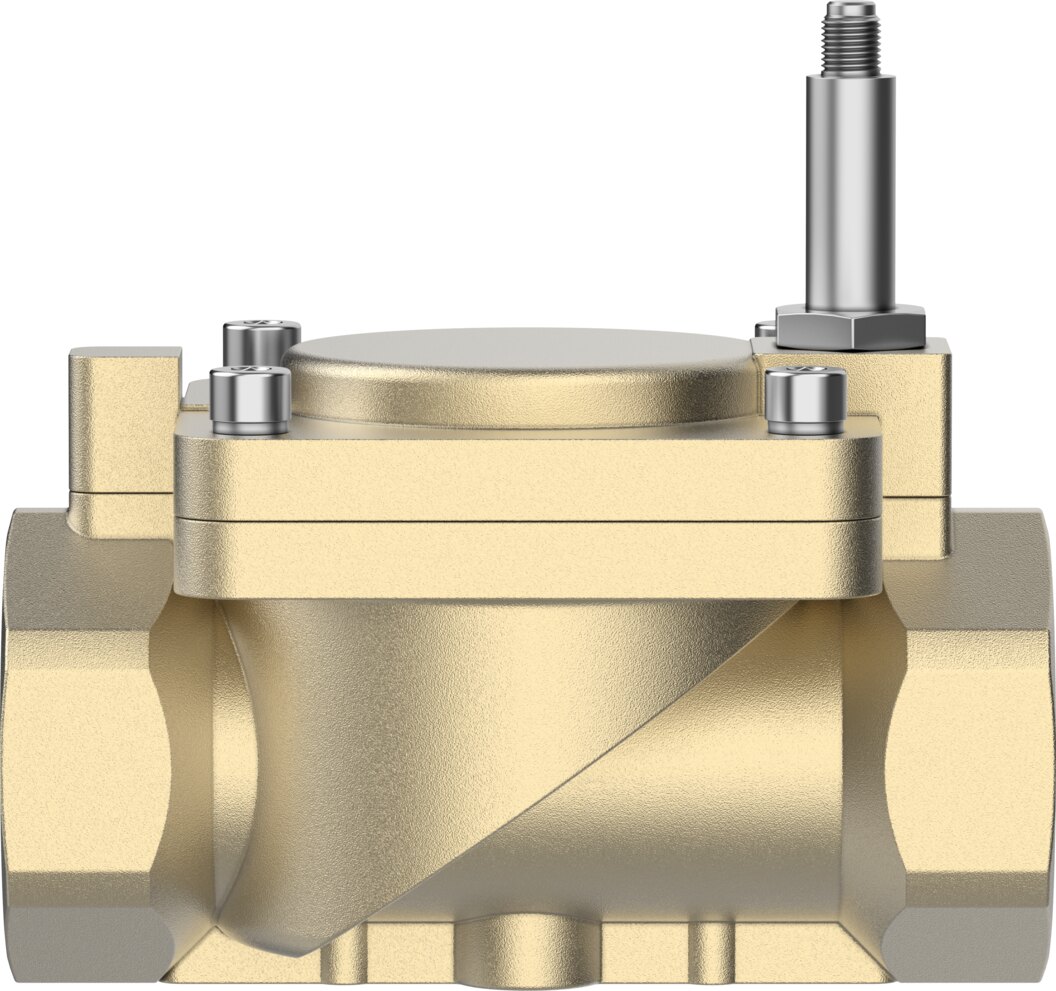

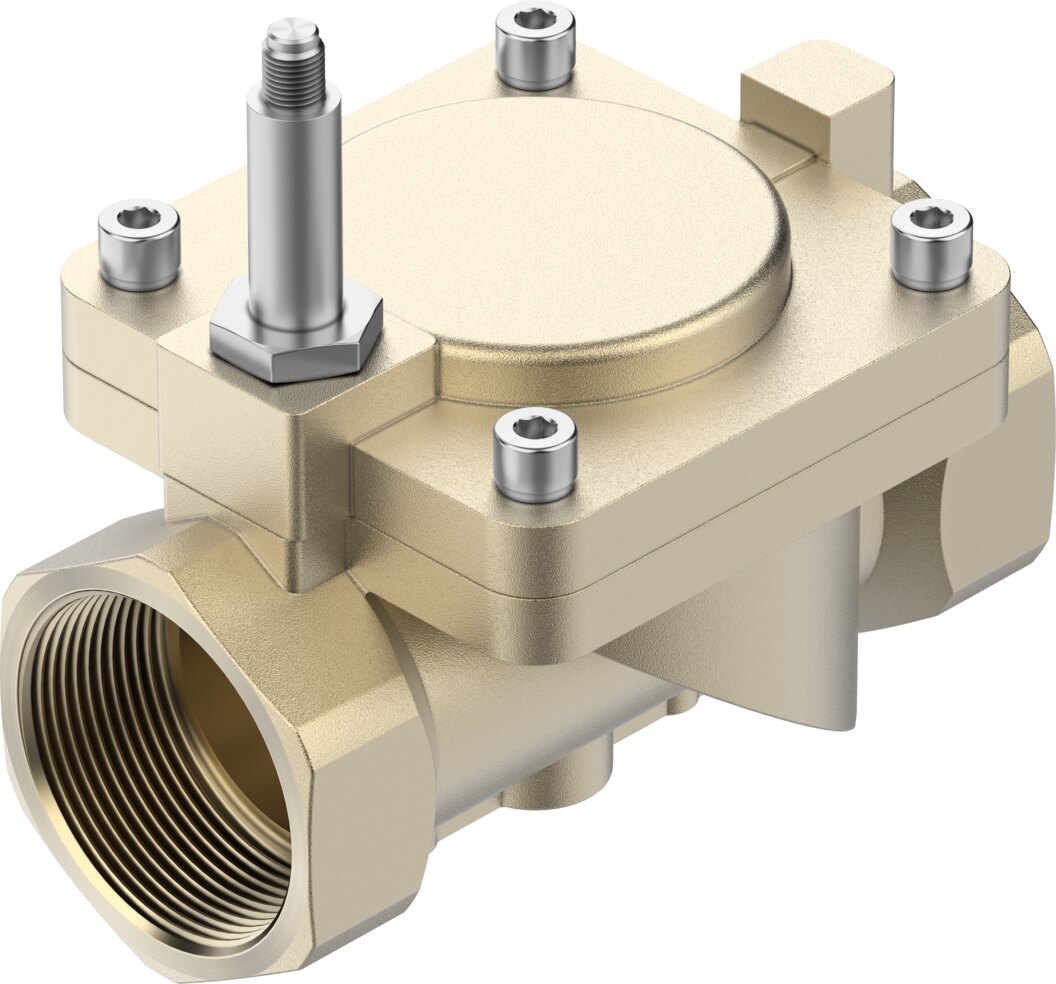

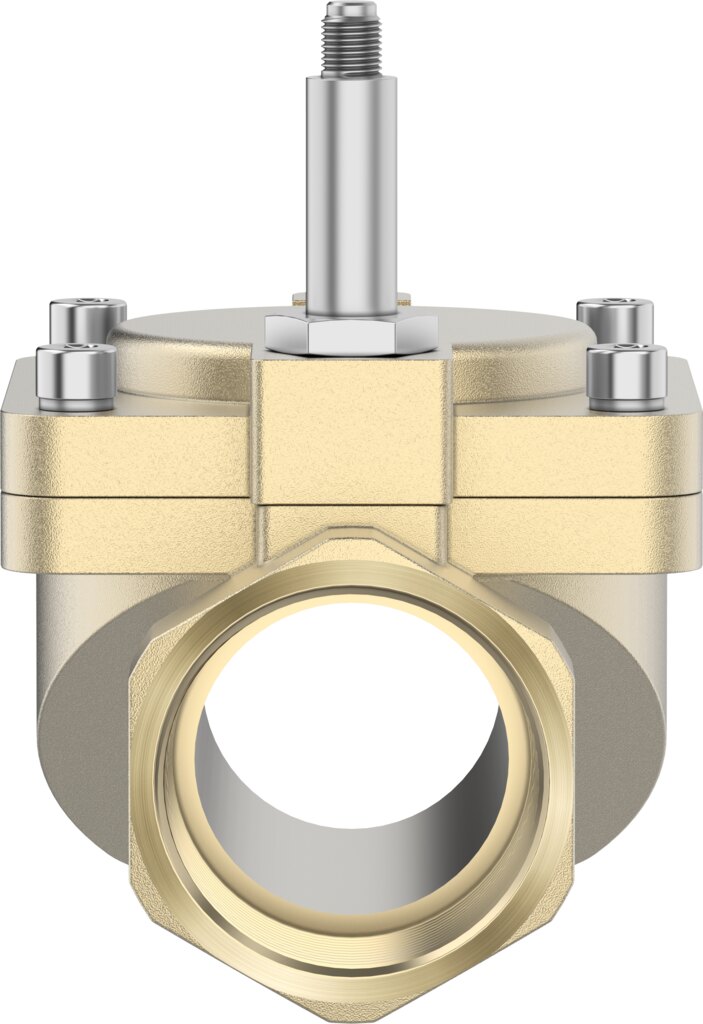

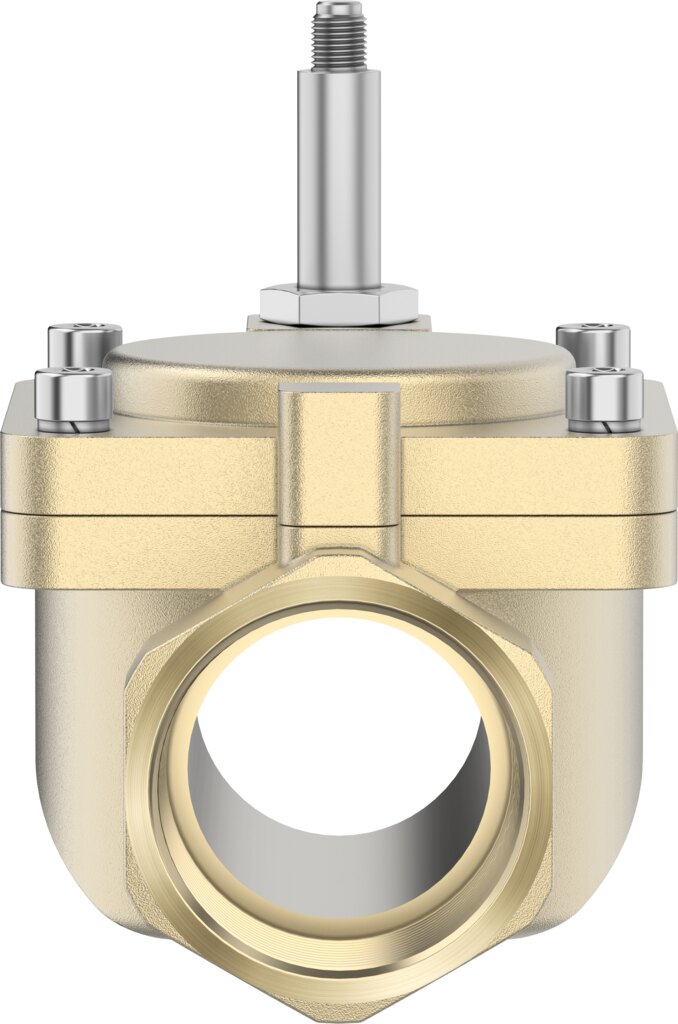

2/2-way solenoid valve NC, 2 NPT, nominal size 50 mm, brass, NBR seals, coil sold separately VZWM-L-M22C-N2-F5 - Festo 546161

Festo ✓ Original product Brand new

The Festo solenoid valve VZWM-L-M22C-N2-F5 switches compressed air, inert gases, water and neutral liquids in the range 0.7 to 10 bar. Flow rate Kv 39 m³/h, standard nominal flow rate 31000 l/min, port 2 NPT. Housing brass, NBR seals.

Net
€377.94
excl. VAT
Item FES-546161
Manufacturer no. VZWM-L-M22C-N2-F5
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

31000 l/min standard nominal flow rate at medium pressure for gases 0.7 to 10 bar: the solenoid valve VZWM-L-M22C-N2-F5 opens in 62 ms and closes in 21 ms. As a servo-controlled diaphragm valve, the VZWM-L-M22C-N2-F5 needs a pressure differential of at least 0.7 bar.

Benefits

  • Servo-controlled: medium pressure for gases 0.7 to 10 bar, minimum pressure differential 0.7 bar
  • Flow rate Kv 39 m³/h, standard nominal flow rate 31000 l/min
  • Switching time 62 ms on, 21 ms off
  • Solenoid coil type MH available separately as an accessory
  • Housing material brass, seals NBR

Use and installation

Approved media for the VZWM-L-M22C-N2-F5: compressed air, inert gases, water and neutral liquids. Liquids up to 22 mm²/s viscosity. Installation of the VZWM-L-M22C-N2-F5: inline installation, mounting position preferably upright. Permissible for the VZWM-L-M22C-N2-F5: ambient temperature -10 to 60 °C, medium temperature -10 to 60 °C.

Technical data

FeatureValue
TypeVZWM-L-M22C-N2-F5
Festo part number546161

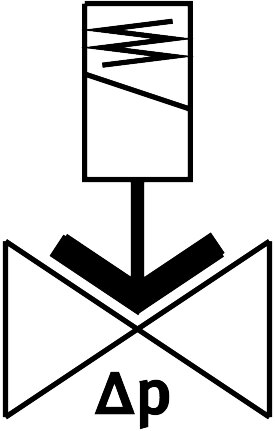

DesignDiaphragm valve, servo-controlled
Type of actuationElectrical
Sealing principleSoft
Mounting positionPreferably upright
Type of mountingInline installation
Fitting connection2 NPT
Electrical connectionSolenoid coil type MH-..., coil can be ordered as an accessory
Nominal size50 mm
Valve function2/2-way, single solenoid, closed
Flow directionNon-reversible
MediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Water, Neutral fluids
Medium pressure, liquid media0.7 to 6 bar
Medium pressure, gaseous media0.7 to 10 bar
Burst pressure40 bar
Overload pressure25 bar
Pressure differential0.7 bar
Type of pilotingPiloted
Max. viscosity22 mm²/s
Medium temperature-10 to 60 °C
Medium temperature, liquid media5 to 50 °C
Ambient temperature-10 to 60 °C
Flow rate Kv39 m³/h
Standard nominal flow rate (to DIN 1343)31000 l/min
Switching time on62 ms
Switching time on, liquid media2100 ms
Switching time off21 ms
Switching time off, liquid media2800 ms
B value0.68
C value110 l/sbar
Note on materialsRoHS compliant
PWIS conformityVDMA24364 zone III
Material housingBrass
Material number housing2.0402
Material sealsNBR
Material armature tubeHigh-alloy steel
CE marking (see declaration of conformity)To EU Pressure Equipment Directive
UKCA marking (see declaration of conformity)To UK Pressure Equipment Regulations
Corrosion resistance class CRC1 - Low corrosion stress
Max. tightening torque, cover screw30 Nm
Max. tightening torque, connecting thread620 Nm
Max. tightening torque, coil fastening2 Nm
Weight4.5 kg
ManufacturerFesto
Hersteller-NrVZWM-L-M22C-N2-F5
EAN4052568352301
Zolltarifnummer84818087
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialBrass
ThreadNPT 2
Nominal size DN [mm]50
Seal materialNBR
Housing materialBrass
Function2/2 closed monostable
Flow rate [l/min]31000
Actuation typeElectrical
Medientemperatur [°C]-10 bis 60
SeriesVZWM
Betriebsdruck max [bar]10
Temperaturbereich-10-60 °C
Temperature (max.)60
