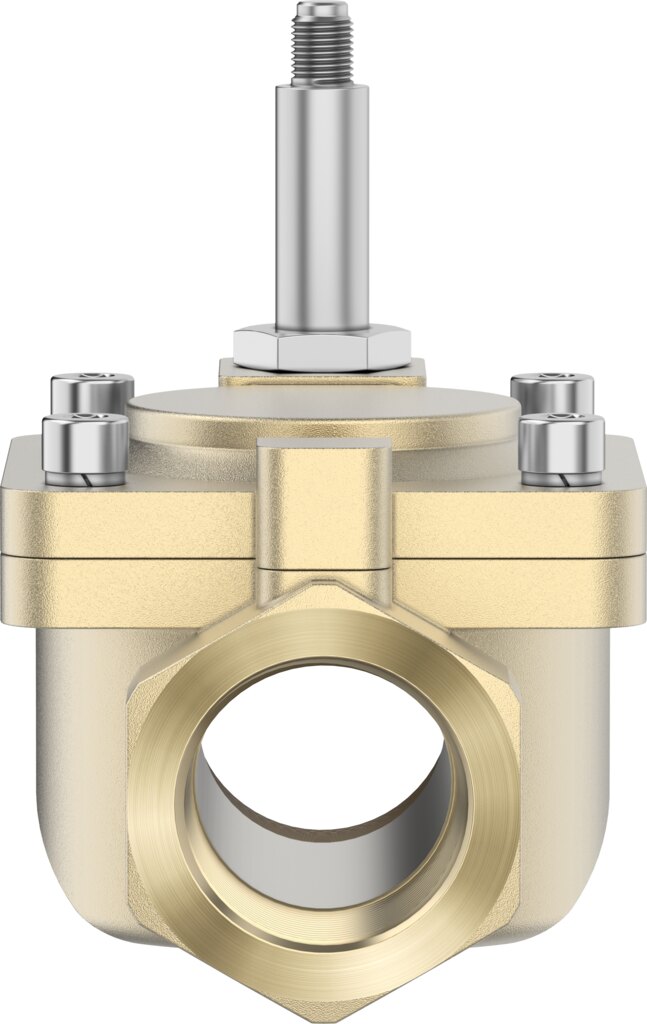

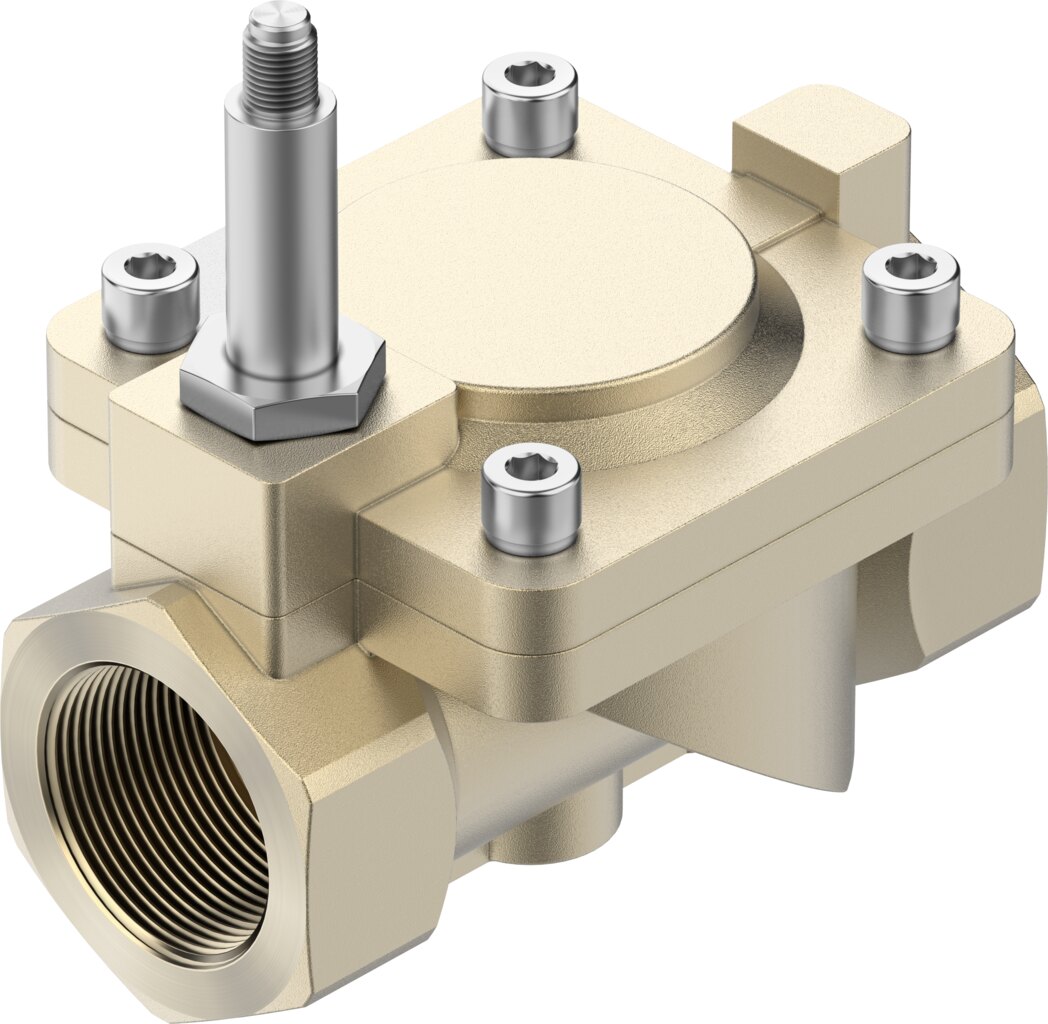

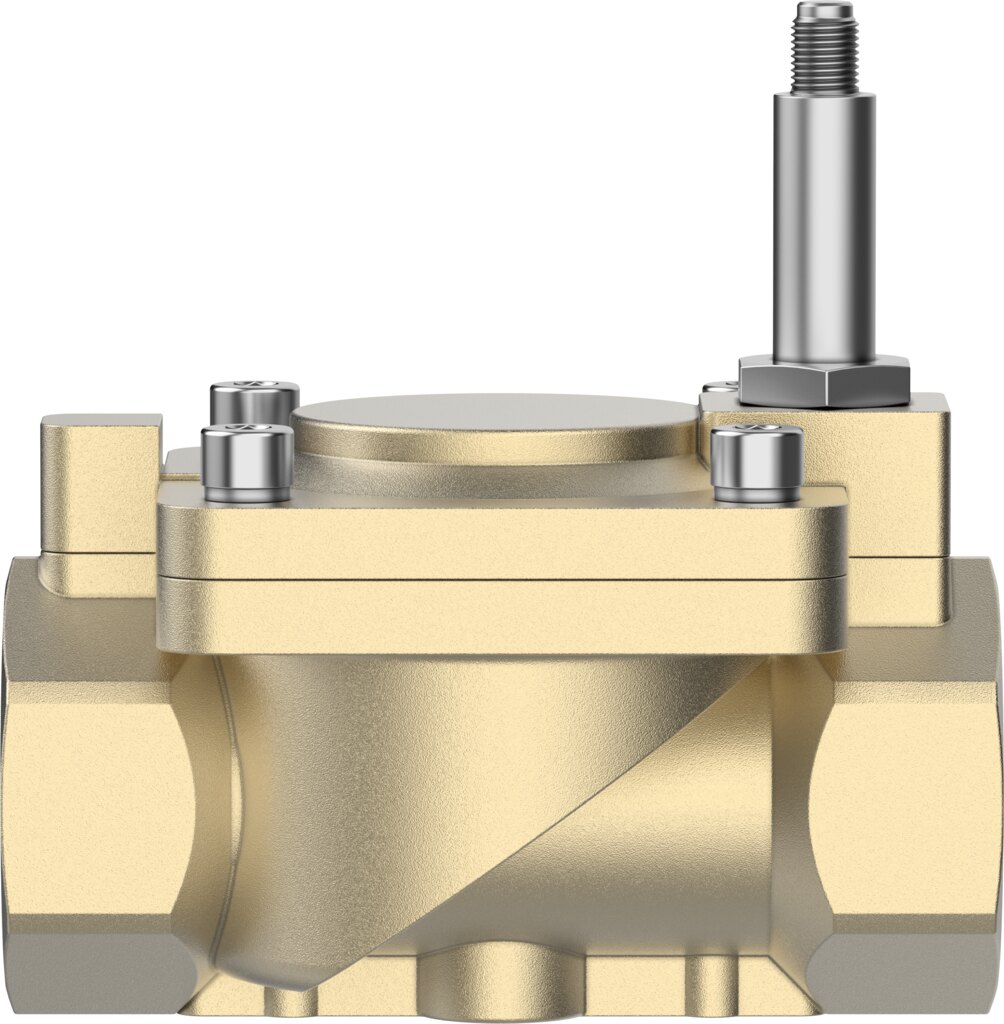

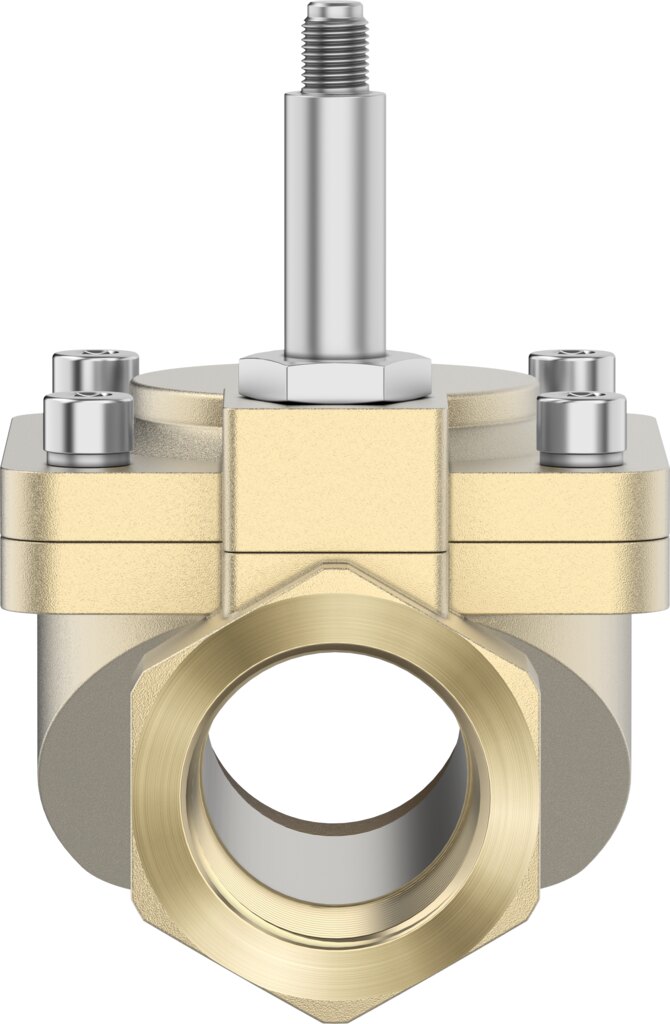

Solenoid valve VZWM-L-M22C-N114-F5 - Festo 546159
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | Diaphragm valve, servo-controlled |
|---|---|
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Preferably upright |
| Type of mounting | Inline installation |
| Connection Process valve | 1 1/4 NPT |
| Electrical connection | Solenoid coil type MH-... , coil can be ordered as an accessory |
| Nominal size | 40 mm |

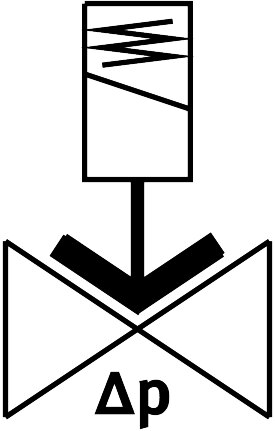

| Valve function | 2/2-way, single solenoid, closed |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Water, Neutral fluids |
| Medium pressure,valve for liquid media | 0.7 ... 6 bar |
| Medium pressure,valve for gaseous media | 0.7 ... 10 bar |
| Burst pressure | 40 bar |
| Overload pressure | 40 bar |
| Pressure difference | 0.7 bar |
| Type of piloting | Piloted |
| Max. viscosity | 22 mm²/s |
| Media temperature | -10 ... 60 °C |
| Media temperature for fluids | 5 ... 50 °C |
| Ambient temperature | -10 ... 60 °C |
| Flow rate Kv | 21.3 m³/h |
| Standard nominal flow rate (standardised to DIN 1343) | 24000 l/min |
| Switching time on | 26 ms |
| Switch-on time for fluids | 1400 ms |
| Switching time off | 20 ms |
| Switch-off time for fluids | 1900 ms |
| b value | 0.6 |
| C value | 75 l/sbar |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | Brass |
| Material number housing | 2,0402 |
| Material seals | NBR |
| Material plunger tube | High-alloy steel |
| Product weight | 2700 g |
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive |
| UKCA marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Max. tightening torque for cover screw | 30 Nm |
| Max. tightening torque for connecting thread | 450 Nm |
| Max. tightening torque for coil fastening | 2 Nm |
| Weight | 3 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZWM-L-M22C-N114-F5 |
| EAN | 4052568352288 |
| Zolltarifnummer | 84818087 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
