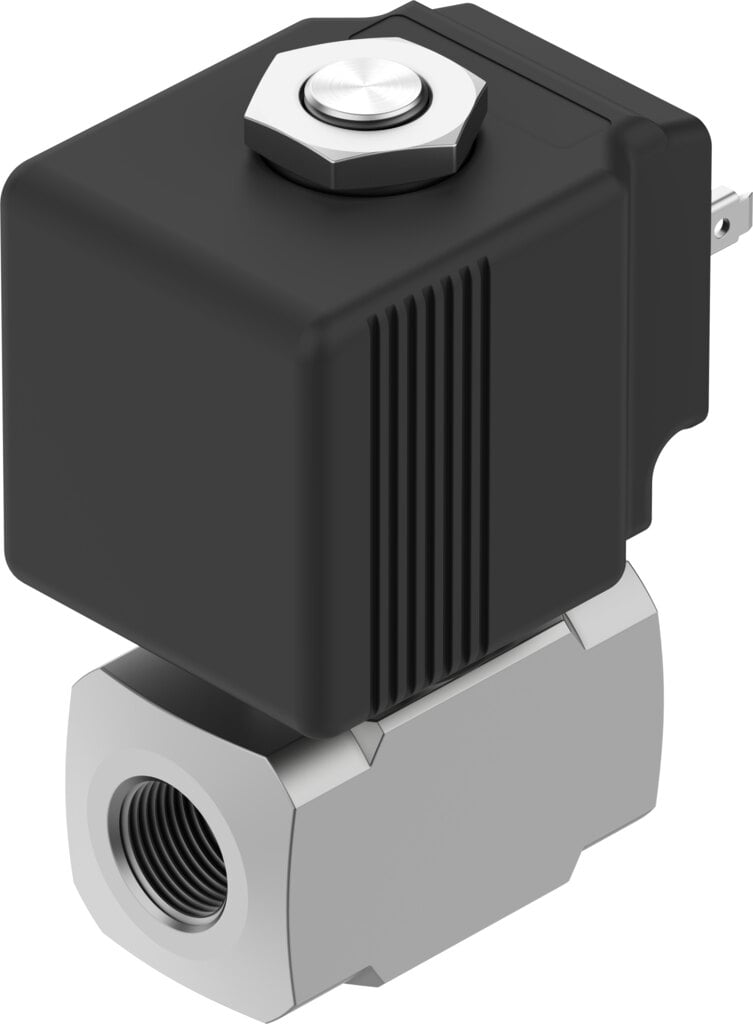

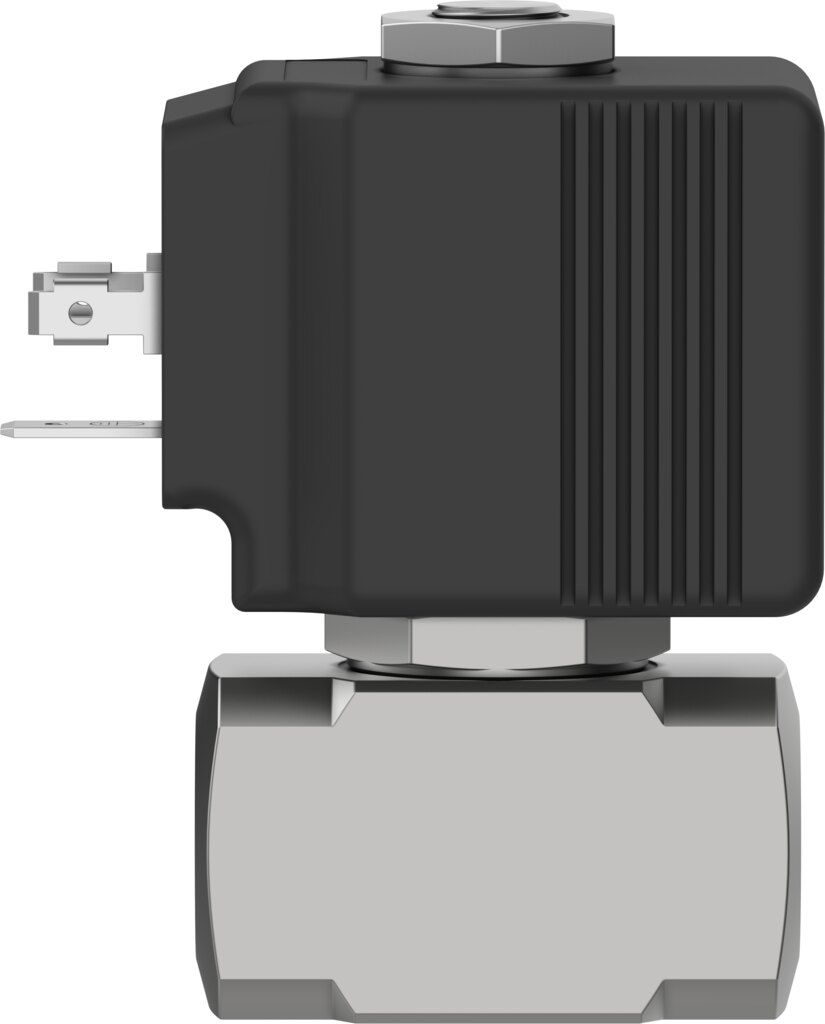

Solenoid valve 2/2-way NC 1/4 NPT nominal size 5.2 mm up to 10 bar stainless steel 110 V AC VZWD-B-L-M22C-M-N14-52-V-36-2A-A1-10-R1 - Festo 8214428
For compressed air, water, mineral oil and inert gases up to 10 bar: the direct-acting poppet valve opens without minimum pressure. At nominal size 5.2 mm it reaches Kv 0.47 m³/h, the housing is made of stainless steel 1.4305.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where media up to 10 bar have to be switched without minimum pressure differential, the solenoid valve VZWD-B-L-M22C-M-N14-52-V-36-2A-A1-10-R1 is the fit: direct-acting, normally closed, stainless steel housing.
Benefits
- Switches from 0 bar pressure differential, direct-acting without minimum pressure
- Medium pressure 0 to 10 bar
- Flow rate Kv 0.47 m³/h
- Housing in stainless steel 1.4305, corrosion resistance class CRC 3
- Switching times 8 ms on and 25 ms off
- Media temperature -10 to 140 °C, viscosity up to 25 mm²/s
Applications
The VZWD-B-L-M22C-M-N14-52-V-36-2A-A1-10-R1 is designed for compressed air, water, mineral oil and inert gases as well as neutral liquids up to 140 °C media temperature. Installed directly in the line, any orientation. Plug to EN 175301-803, square design. Ambient temperature -10 to 80 °C.
Technical data
| Feature | Value |
|---|---|
| Type | VZWD-B-L-M22C-M-N14-52-V-36-2A-A1-10-R1 |
| Festo part number | 8214428 |
| Design | Directly actuated poppet valve |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection process valve | 1/4 NPT |
| Electrical connection | Plug, to EN 175301-803, square design |
| Nominal size | 5.2 mm |
| Valve function | 2/2-way, single solenoid, closed |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request |
| Pressure difference | 0 bar |
| Characteristic coil data | 110 V AC: 50/60 Hz, pick-up power 40 VA, holding power 30 VA |
| Insulation material class | H |
| Permissible voltage fluctuations | +15% / -10% |
| Duty cycle | 100% |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Medium pressure | 0 to 10 bar |
| Maximum viscosity | 25 mm²/s |
| Media temperature | -10 to 140 °C |
| Ambient temperature | -10 to 80 °C |
| Flow rate Kv | 0.47 m³/h |
| Switching time on | 8 ms |
| Switching time off | 25 ms |
| Note on materials | RoHS compliant |
| Material housing | High-alloy stainless steel |
| Material number housing | 1.4305 |
| Material seals | FPM |
| CE mark (see declaration of conformity) | To EU EMC Directive, to EU Low Voltage Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, to UK regulations for electrical equipment |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VZWD-B-L-M22C-M-N14-52-V-36-2A-A1-10-R1 |
| EAN | 4052568787561 |
| Zolltarifnummer | 84818073 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel 1.4305 |
| Thread | NPT 1/4 |
| Nominal size DN [mm] | 5,2 |
| Seal material | FPM |
| Housing material | Stainless steel 1.4305 |
| Function | 2/2 closed monostable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -10 bis 140 |
| Norm | DIN EN 175301-803 |
| Operating voltage | 110 V AC |
| Betriebsdruck max [bar] | 10 |
| Protection rating | IP65 |
