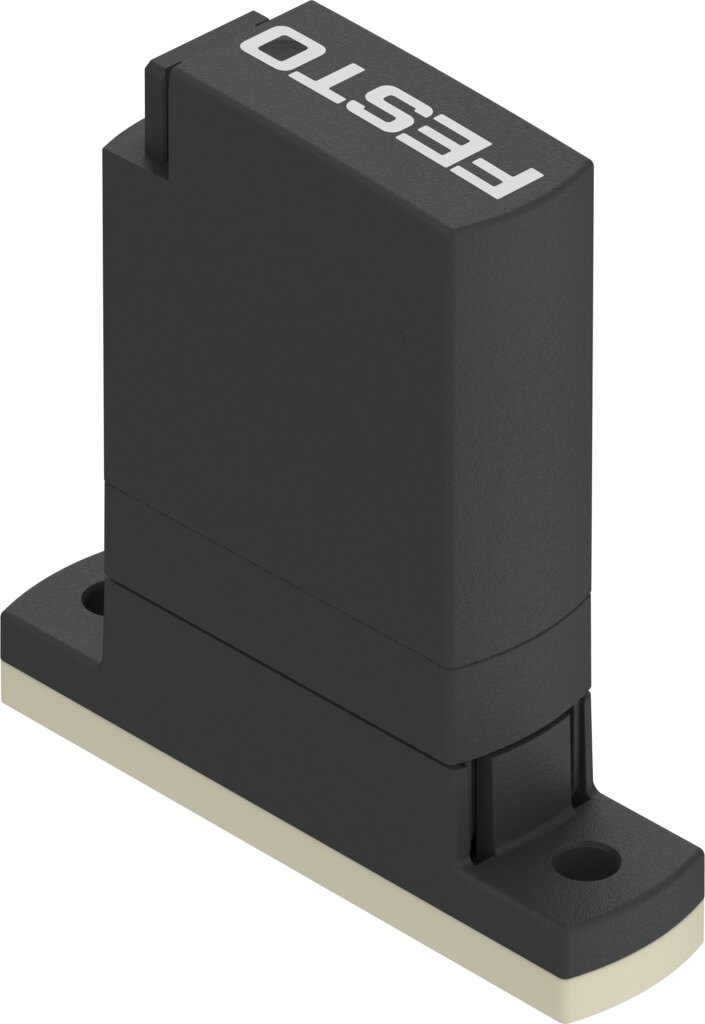

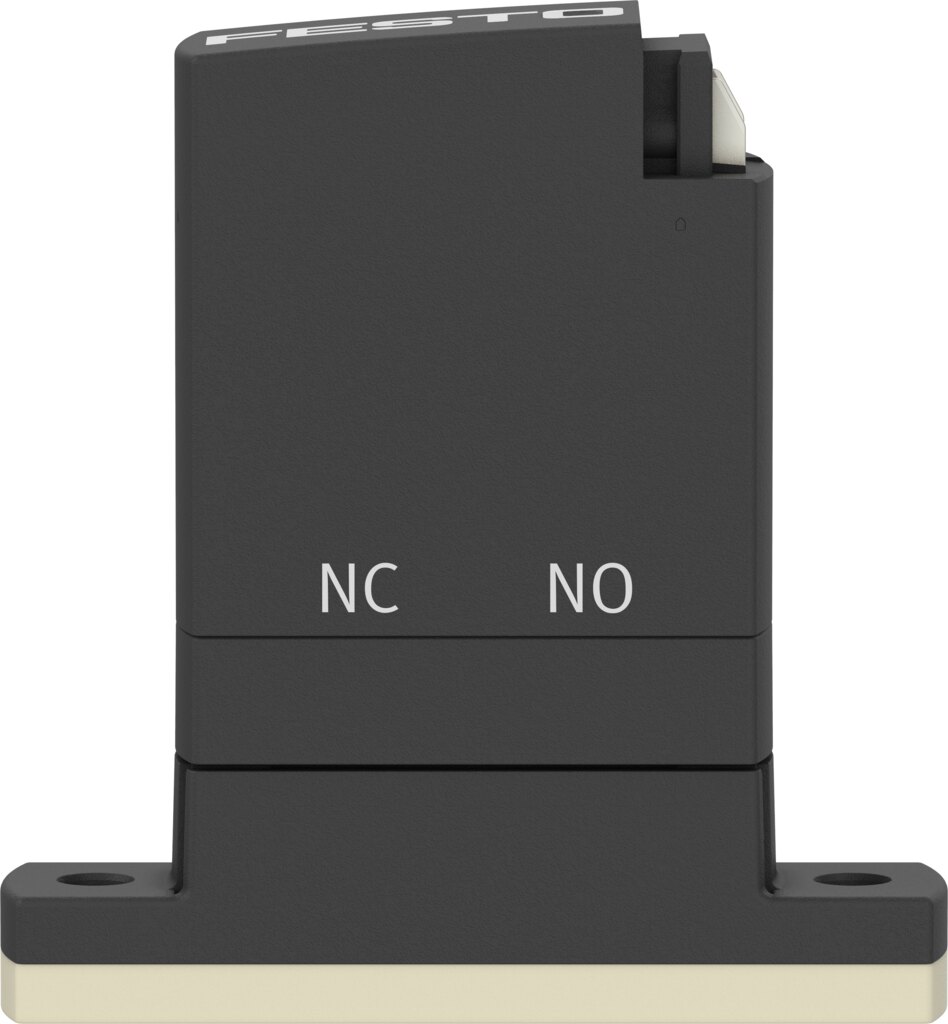

Media separated solenoid valve VYKA-F7-M22C-12-PF-5YQ7 - Festo 8170086

Name: Media separated solenoid valve VYKA-F7-M22C-12-PF-5YQ7 - Festo 8170086
Brand: Festo
SKU: FES-8170086
Price: 124.20 EUR
Availability: InStock

Festo ✓ Original product Brand new

Net

€124.20

excl. VAT

Item FES-8170086

Manufacturer no. VYKA-F7-M22C-12-PF-5YQ7

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Technical data

Design	Rocker valve with diaphragm seal
Sealing principle	Soft
Material in contact with the medium	FFPM, PEEK
Valve function	2/2-way, single solenoid, closed
Nominal size	1.2 mm
Flow direction	Reversible with restrictions
Type of actuation	Electrical
Type of piloting	Direct
Type of reset	Mechanical spring
Manual override	None
Mounting position	Any
Type of mounting	Via through-hole for M2 screw
Electrical connection 1, connection type	Socket
Electrical connection 1, connector system	Plug pattern Q7
Electrical connection 1, number of connections/cores	2
Electrical connection 1, connection pattern	00997312
Size	7
Grid dimension	7.5 mm
Fluid connection	Flange
Medium	Liquid media, Gaseous media
Note on the medium	Observe resistance of materials that come into contact with the media, Maximum particle size 5 µm
Internal volume	18 µl fluid chamber valve, 24 µl valve with fluid connections
Media temperature for fluids	15 ... 50 °C
Medium temperature gaseous media	15 ... 50 °C
Ambient temperature	15 ... 50 °C
Storage temperature	-20 ... 70 °C
Medium pressure	-0.5 ... 2 bar
Note on the medium pressure	IN: -0.25 – 2 bar / -0.025 – 0.2 MPa / -3.625 – 29 psi, OUT: -0.5 - 0.5 bar / -0.05 - 0.05 MPa / -7.25 - 7.25 psi
Pressure difference	2 bar
Burst pressure	23 bar
Operational voltage range DC	12 ... 26 V
Note on operational voltage range DC	With electrical sub-base VAVE-K1-…
Permissible voltage fluctuations	+/-10%
Electrical power consumption	3.5 W
Information on power consumption	Low-current phase 0.3 W, high-current phase 3.5 W for 60 ms, in combination with VAVE-K1-…
Characteristic coil data	12 - 26 V DC: low-current phase 0.06 W, high-current phase 2.2 W
Insulation material class	B
Duty cycle	100% in conjunction with holding current reduction, Observe the notes on operating the solenoid valves.
Max. switching frequency	6 Hz
Note on switching frequency	Dependent on the ambient temperature and installation state, At 100% duty cycle depending on ambient temperature and installation condition. Higher switching frequencies possible with duty cycle < 100%.
Switch-on time for fluids	9 ms
Switching time on gaseous media	9 ms
Note on switching time	Switching time depends on medium, temperature, medium pressure and individual operating conditions, The switching behaviour of the FFPM can be slower at temperatures below room temperature
Standard nominal flow rate (standardised to DIN 1343)	10 l/min
Note on standard nominal flow rate	In case of a pressure drop of 1 -> 0 bar (gaseous media)
Flow rate Kv	0.3 l/min
Note on flow rate Kv	For water as medium, Pressure difference 1 bar
Water flow rate at max. operating pressure	0.45 l/min
Material housing	Reinforced PA, PEEK, Reinforced PPA
Material membrane	FFPM
Material seals	FFPM
Note on materials	RoHS compliant
LABS (PWIS) conformity	VDMA24364 zone III
Product weight	10.9 g
Degree of protection	IP40
Note on degree of protection	In mounted state
Instructions on use	For indoor use only
Corrosion resistance class CRC	0 - No corrosion stress
Weight	0.018 kg
Manufacturer	Festo
Hersteller-Nr	VYKA-F7-M22C-12-PF-5YQ7
EAN	4052568962302
Zolltarifnummer	84818087
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
