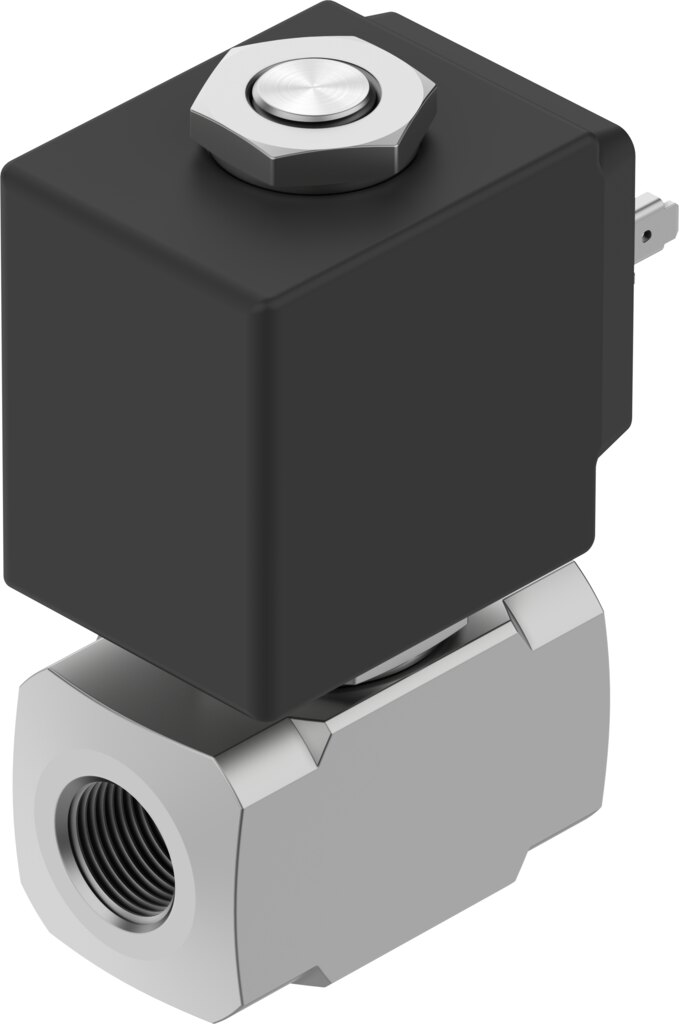

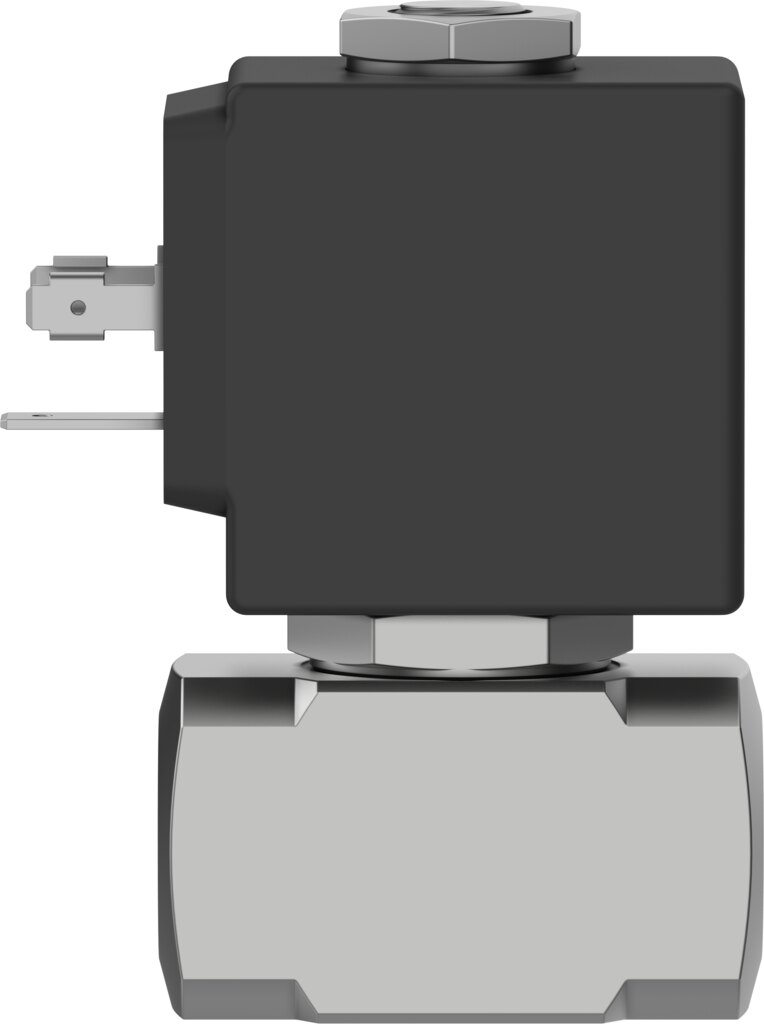

Solenoid valve 2/2-way NC 1/4 NPT nominal size 4 mm up to 8 bar stainless steel 220/230 V AC VZWD-B-L-M22C-M-N14-40-V-30-3A-A1-8-R1 - Festo 8214418

Festo ✓ Original product Brand new

Direct-acting 2/2-way solenoid valve, normally closed, for media up to 8 bar and 140 °C. Stainless steel housing 1.4305, nominal size 4 mm, Kv 0.36 m³/h. It is actuated by a coil 220/230 V AC (50/60 Hz) with 15 VA holding power.

Net
€127.32
excl. VAT
Item FES-8214418
Manufacturer no. VZWD-B-L-M22C-M-N14-40-V-30-3A-A1-8-R1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With nominal size 4 mm and Kv 0.36 m³/h, the VZWD-B-L-M22C-M-N14-40-V-30-3A-A1-8-R1 is a normally closed 2/2-way valve for compressed air, water, mineral oil and inert gases. It switches directly, even without pressure differential, and seals up to 8 bar.

Benefits

  • Switches from 0 bar pressure differential, direct-acting without minimum pressure
  • Medium pressure 0 to 8 bar
  • Flow rate Kv 0.36 m³/h
  • Housing in stainless steel 1.4305, corrosion resistance class CRC 3
  • Switching times 8 ms on and 25 ms off
  • Media temperature -10 to 140 °C, viscosity up to 25 mm²/s

Applications

Typical media for valve 8214418: compressed air, water, mineral oil, inert gases and neutral liquids at up to 140 °C. Installed directly in the line, any orientation. Plug to EN 175301-803, square design. Ambient temperature -10 to 80 °C.

Technical data

FeatureValue
TypeVZWD-B-L-M22C-M-N14-40-V-30-3A-A1-8-R1
Festo part number8214418
DesignDirectly actuated poppet valve
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection process valve1/4 NPT
Electrical connectionPlug, to EN 175301-803, square design
Nominal size4 mm
Valve function2/2-way, single solenoid, closed
Manual overrideNone
Flow directionNon-reversible
MediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request
Pressure difference0 bar
Characteristic coil data220/230 V AC: 50/60 Hz, pick-up power 20 VA, holding power 15 VA
Insulation material classF
Permissible voltage fluctuations+15% / -10%
Duty cycle100%
Type of resetMechanical spring
Type of pilotingDirect
Medium pressure0 to 8 bar
Maximum viscosity25 mm²/s
Media temperature-10 to 140 °C
Ambient temperature-10 to 80 °C
Flow rate Kv0.36 m³/h
Switching time on8 ms
Switching time off25 ms
Note on materialsRoHS compliant
Material housingHigh-alloy stainless steel
Material number housing1.4305
Material sealsFPM
CE mark (see declaration of conformity)To EU EMC Directive, to EU Low Voltage Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, to UK regulations for electrical equipment
Degree of protectionIP65
Corrosion resistance class CRC3 - high corrosion stress
ManufacturerFesto
Hersteller-NrVZWD-B-L-M22C-M-N14-40-V-30-3A-A1-8-R1
EAN4052568786663
Zolltarifnummer84818073
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4305
ThreadNPT 1/4
Nominal size DN [mm]4
Seal materialFPM
Housing materialStainless steel 1.4305
Function2/2 closed monostable
Actuation typeElectrical
Medientemperatur [°C]-10 bis 140
NormDIN EN 175301-803
Betriebsdruck max [bar]8
Protection ratingIP65
