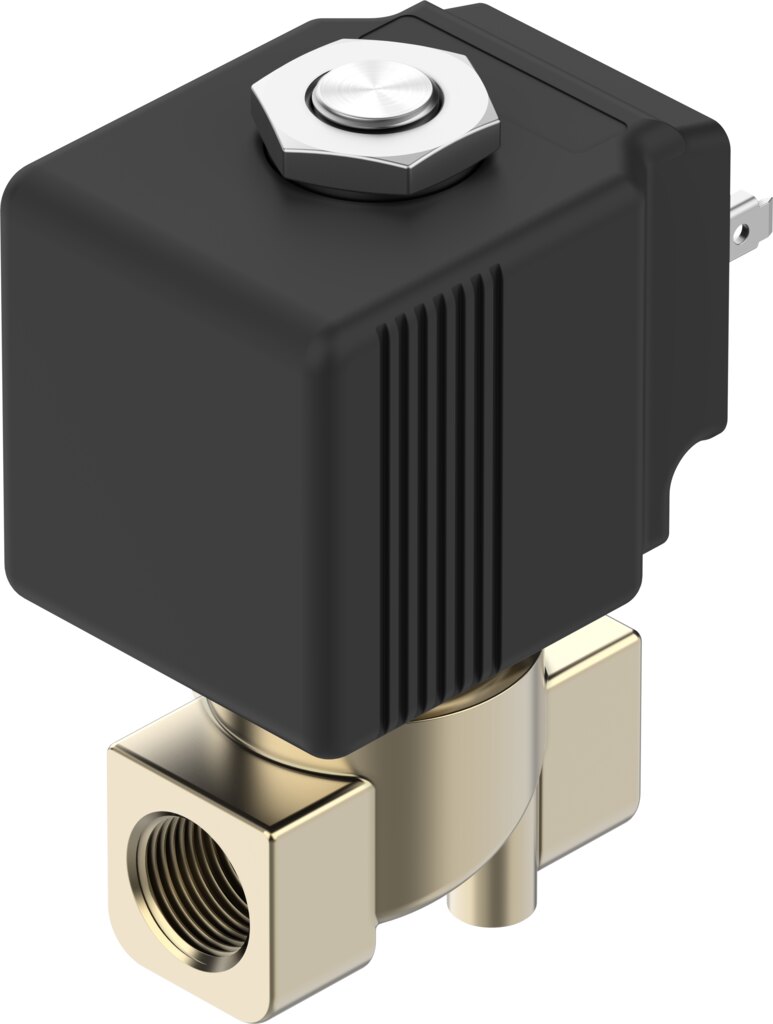

2/2-way solenoid valve NPT 1/4 DN 2 mm brass 220/230 V AC VZWD-B-L-M22C-M-N14-20-V-36-3A-A1-50 - Festo 8214594
For shut-off and dosing of water, oil or gas up to 50 bar: the VZWD opens directly, without minimum pressure, in 8 ms. NPT 1/4 port, DN 2 mm, Kv 0.1 m³/h, 220/230 V AC coil, brass body, FPM seals.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo solenoid valve VZWD-B-L-M22C-M-N14-20-V-36-3A-A1-50 is a directly actuated 2/2-way poppet valve, normally closed, for media up to 50 bar. Because the solenoid opens the seat directly, it works from 0 bar pressure difference, with a flow rate of Kv 0.1 m³/h.
Benefits
- Switches from 0 bar: directly actuated, no minimum pressure difference, medium pressure 0 to 50 bar
- Fast response: switching time 8 ms on, 25 ms off
- Hot media: media temperature -10 to 140 °C, FPM seals
- Proven body: brass CW617N, CRC 1 for environments with low corrosion stress
- Easy installation: inline mounting in any position, plug to EN 175301-803, IP65
Applications
Typical applications include cooling and flushing circuits, lubrication and oil supply lines and gas lines in machines and test rigs. The NPT 1/4 connection screws directly into the line.
Technical data
| Feature | Value |
|---|---|
| Order code | VZWD-B-L-M22C-M-N14-20-V-36-3A-A1-50 |
| Part number | 8214594 |
| Design | Directly actuated poppet valve |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Process valve connection | NPT 1/4 |
| Electrical connection | Plug, To EN 175301-803, Square design |
| Nominal size | 2 mm |
| Valve function | 2/2-way, single solenoid, closed |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request |
| Pressure difference | 0 bar |
| Characteristic coil data | 220/230 V AC, 50/60 Hz, pick-up power 40 VA, holding power 30 VA |
| Insulation material class | H |
| Permissible voltage fluctuations | +15% / -10% |
| Duty cycle | 100% |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Medium pressure | 0 to 50 bar |
| Maximum viscosity | 25 mm²/s |
| Media temperature | -10 to 140 °C |
| Ambient temperature | -10 to 80 °C |
| Flow rate Kv | 0.1 m³/h |
| Switching time on | 8 ms |
| Switching time off | 25 ms |
| Note on materials | RoHS compliant |
| Material housing | Brass |
| Material number housing | CW617N |
| Material seals | Fluoro rubber |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Manufacturer | Festo |
| Hersteller-Nr | VZWD-B-L-M22C-M-N14-20-V-36-3A-A1-50 |
| EAN | 4052568789220 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Brass |
| Thread | NPT 1/4 |
| Nominal size DN [mm] | 2 |
| Seal material | FPM |
| Function | 2/2 closed monostable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -10 bis 140 |
| Norm | DIN EN 175301-803 |
| Operating voltage | 230 V AC |
| Series | VZWD |
| Betriebsdruck max [bar] | 50 |
| Pneumatic connection | NPT 1/4 |
| Protection rating | IP65 |
| Temperature (max.) | 80 |
