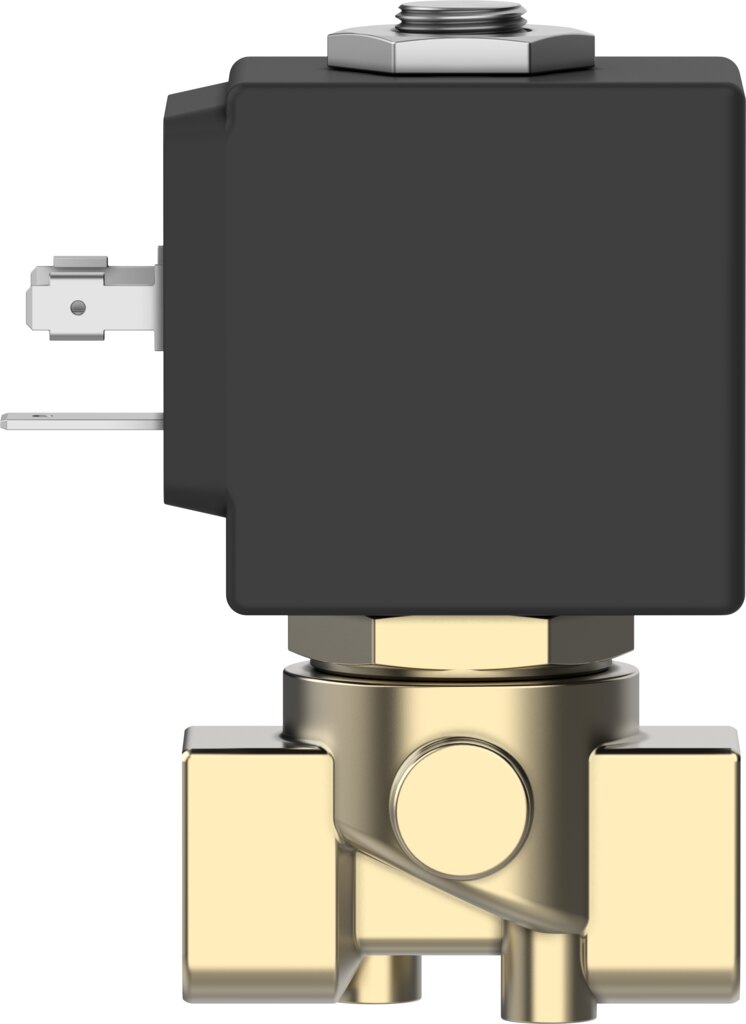

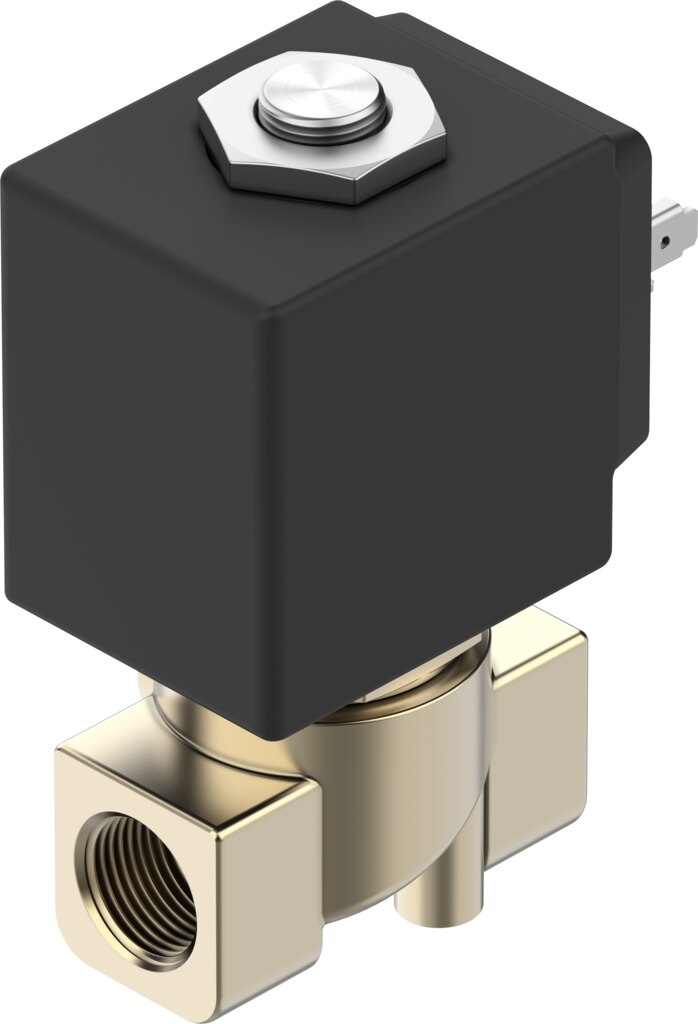

2/2-way solenoid valve NPT 1/4 DN 3 mm brass 110 V AC VZWD-B-L-M22C-M-N14-30-V-30-2A-A1-15 - Festo 8214465

Festo ✓ Original product Brand new

For shut-off and dosing of water, oil or gas up to 15 bar: the VZWD opens directly, without minimum pressure, in 8 ms. NPT 1/4 port, DN 3 mm, Kv 0.25 m³/h, 110 V AC coil, brass body, FPM seals.

Net
€62.94
excl. VAT
Item FES-8214465
Manufacturer no. VZWD-B-L-M22C-M-N14-30-V-30-2A-A1-15
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Where water, mineral oil or inert gases at up to 15 bar must be shut off reliably, the Festo solenoid valve VZWD-B-L-M22C-M-N14-30-V-30-2A-A1-15 switches directly via its solenoid. It needs no pressure difference and opens even in an unpressurised system, with Kv 0.25 m³/h at 3 mm nominal size.

Benefits

  • Fast response: switching time 8 ms on, 25 ms off
  • Hot media: media temperature -10 to 140 °C, FPM seals
  • Continuous duty: 100% duty cycle, 110 V AC coil (20 VA pick-up, 15 VA holding), insulation class F
  • Proven body: brass CW617N, CRC 1 for environments with low corrosion stress
  • Easy installation: inline mounting in any position, plug to EN 175301-803, IP65

Applications

Typical applications include cooling and flushing circuits, lubrication and oil supply lines and gas lines in machines and test rigs. The NPT 1/4 connection screws directly into the line.

Technical data

FeatureValue
Order codeVZWD-B-L-M22C-M-N14-30-V-30-2A-A1-15
Part number8214465
DesignDirectly actuated poppet valve
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Process valve connectionNPT 1/4
Electrical connectionPlug, To EN 175301-803, Square design
Nominal size3 mm
Valve function2/2-way, single solenoid, closed
Manual overrideNone
Flow directionNon-reversible
MediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request
Pressure difference0 bar
Characteristic coil data110 V AC, 50/60 Hz, pick-up power 20 VA, holding power 15 VA
Insulation material classF
Permissible voltage fluctuations+15% / -10%
Duty cycle100%
Type of resetMechanical spring
Type of pilotingDirect
Medium pressure0 to 15 bar
Maximum viscosity25 mm²/s
Media temperature-10 to 140 °C
Ambient temperature-10 to 80 °C
Flow rate Kv0.25 m³/h
Switching time on8 ms
Switching time off25 ms
Note on materialsRoHS compliant
Material housingBrass
Material number housingCW617N
Material sealsFluoro rubber
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Degree of protectionIP65
Corrosion resistance class CRC1 - Low corrosion stress
ManufacturerFesto
Hersteller-NrVZWD-B-L-M22C-M-N14-30-V-30-2A-A1-15
EAN4052568787936
Zolltarifnummer84818079
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialBrass
ThreadNPT 1/4
Nominal size DN [mm]3
Seal materialFPM
Function2/2 closed monostable
Actuation typeElectrical
Medientemperatur [°C]-10 bis 140
NormDIN EN 175301-803
Operating voltage110 V AC
SeriesVZWD
Betriebsdruck max [bar]15
Pneumatic connectionNPT 1/4
Protection ratingIP65
Temperature (max.)80
