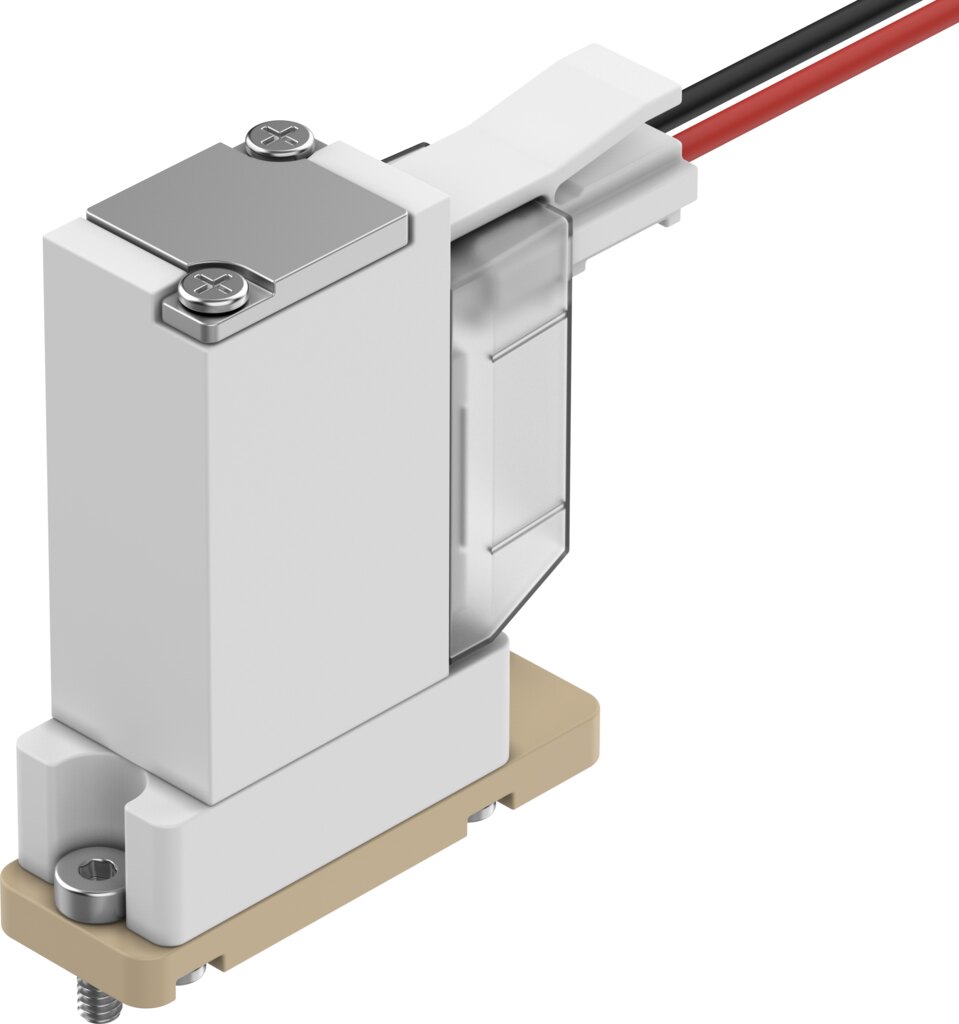

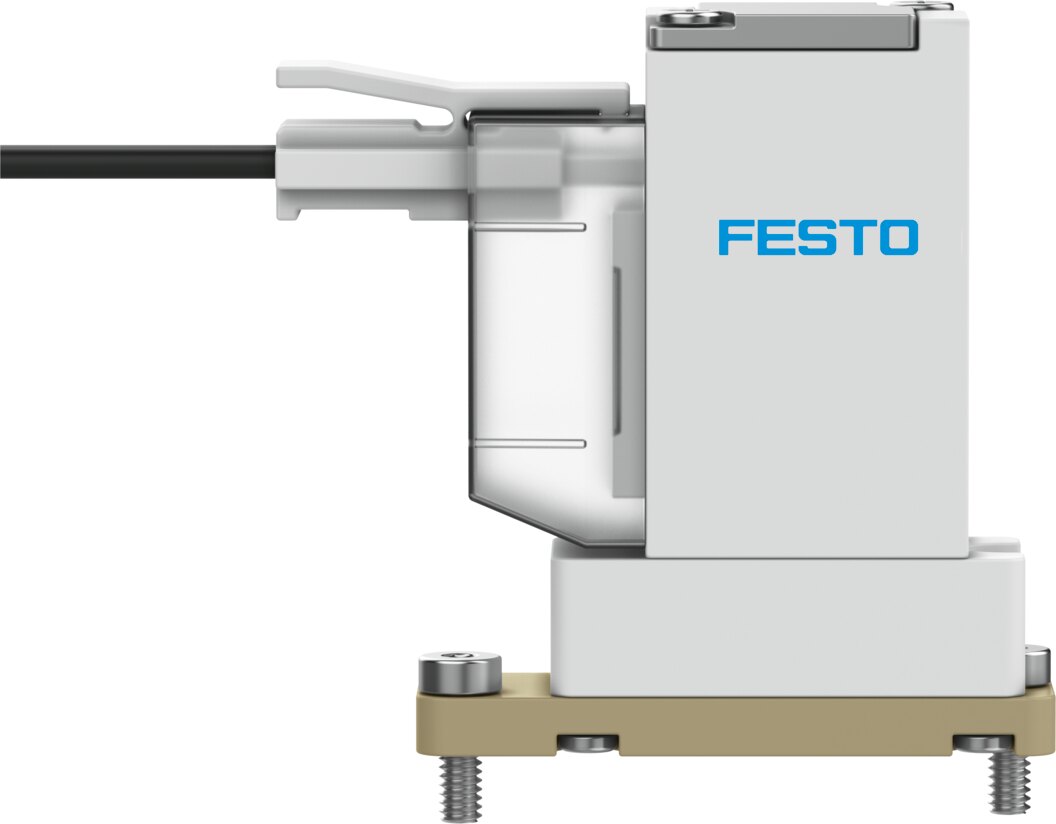

Media separated solenoid valve 2/2-way NC nominal size 1.6 mm FFPM diaphragm 24 V DC VYKB-F10-M22C-16-PF-1HPA - Festo 8122806
Media separated switching: the FFPM diaphragm keeps liquid or gas away from the actuator, nominal size 1.6 mm. Medium pressure -0.75 to 1 bar, vacuum included, Kv 0.034 m³/h, internal volume 35 µl. Coil 24 V DC with 3.7 W high-current and 1 W low-current phase.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Inside the VYKB-F10-M22C-16-PF-1HPA, a rocker mechanism works behind a diaphragm made of FFPM. This keeps the actuator separate from the medium, the valve function is 2/2-way, normally closed, the nominal size 1.6 mm.
Benefits
- Wetted materials PEEK, diaphragm and seals in FFPM
- Medium pressure -0.75 to 1 bar, overload pressure 3 bar
- Flow rate Kv 0.034 m³/h, standard nominal flow rate 18 l/min
- Internal volume 35 µl
- Switching time 20 ms, switching frequency up to 2 Hz
- Size 10, flange connection
Applications
Typical for dosing and analysis technology with media from 0 to 50 °C. Check the resistance of the wetted materials. Mounting via through-hole for M2 screw, degree of protection IP40.
Technical data
| Feature | Value |
|---|---|
| Type | VYKB-F10-M22C-16-PF-1HPA |
| Festo part number | 8122806 |
| Design | Rocker valve with diaphragm seal |
| Sealing principle | Soft |
| Material in contact with the medium | PEEK |
| Valve function | 2/2-way, single solenoid, closed |
| Nominal size | 1.6 mm |
| Flow direction | Non-reversible |
| Type of actuation | Electrical |
| Type of piloting | Direct |
| Type of reset | Mechanical spring |
| Manual override | None |
| Mounting position | Any |
| Type of mounting | Via through-hole for M2 screw |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connector system | Plug pattern HP |
| Size | 10 |
| Fluid connection | Flange |
| Medium | Liquid media, gaseous media |
| Note on the medium | Observe resistance of materials that come into contact with the media, maximum particle size 5 µm |
| Internal volume | 35 µl |
| Media temperature | 0 to 50 °C |
| Media temperature for fluids | 0 to 50 °C |
| Ambient temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Medium pressure | -0.75 to 1 bar |
| Overload pressure | 3 bar |
| Operational voltage range DC | 24 V |
| Permissible voltage fluctuations | ± 10% |
| Characteristic coil data | 24 V DC: low-current phase 1 W, high-current phase 3.7 W |
| Duty cycle | 100% |
| Maximum switching frequency | 2 Hz |
| Note on switching frequency | Dependent on the ambient temperature and installation state |
| Switching time on | 20 ms |
| Switching time on gaseous media | 20 ms |
| Switching time off | 20 ms |
| Switching time off gaseous media | 20 ms |
| Standard nominal flow rate (standardised to DIN 1343) | 18 l/min |
| Note on standard nominal flow rate | In case of a pressure drop of 1 - 0 bar (gaseous media) |
| Flow rate Kv | 0.034 m³/h |
| Note on flow rate Kv | For water as medium, pressure difference 1 bar |
| Material housing | PEEK |
| Material membrane | FFPM |
| Material seals | FFPM |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP40 |
| Corrosion resistance class CRC | 0 - no corrosion stress |
| CE mark (see declaration of conformity) | To EU EMC Directive, in accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Weight (price list) | 0.026 kg |
| Weight | 0.026 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VYKB-F10-M22C-16-PF-1HPA |
| EAN | 4052568556716 |
| Zolltarifnummer | 84818087 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 1,6 |
| Seal material | FFKM |
| Function | 2/2 closed monostable |
| Flow rate [l/min] | 18 |
| Actuation type | Electrical |
| Medientemperatur [°C] | 0 bis 50 |
| Operating voltage | 24 V DC |
| Betriebsdruck max [bar] | 1 |
| Pneumatic connection | Flange |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
