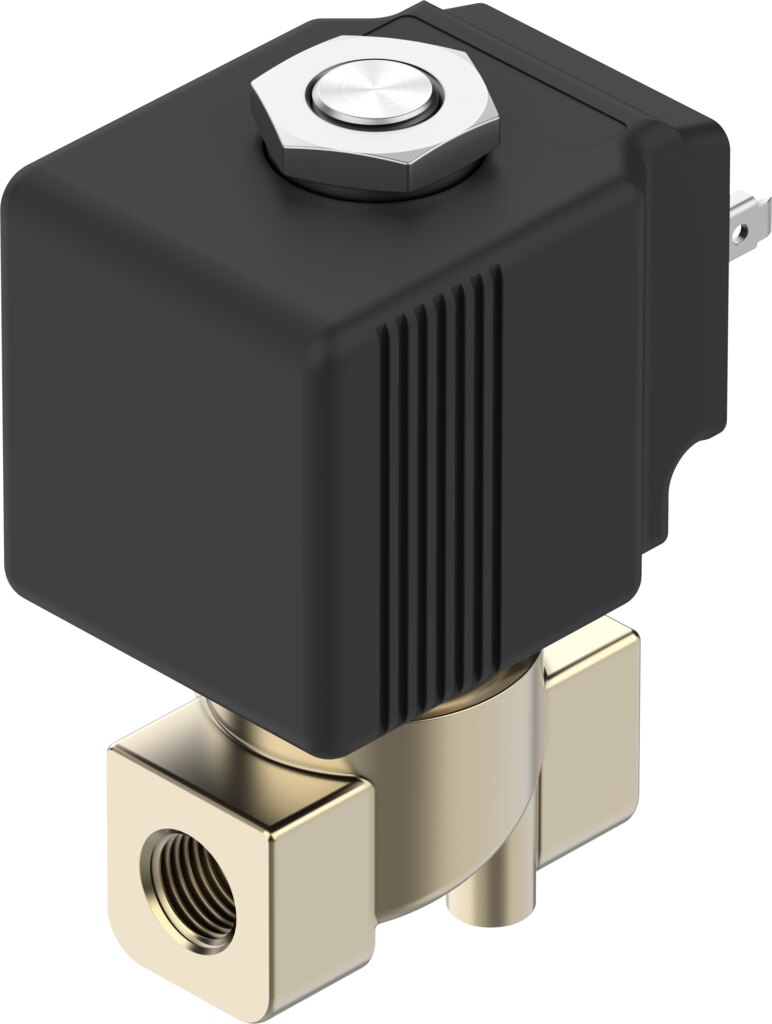

Solenoid valve 2/2-way NC G1/8 nominal size 2 mm up to 50 bar brass 110 V AC VZWD-B-L-M22C-M-G18-20-V-36-2A-A1-50 - Festo 8214430

Festo ✓ Original product Brand new

Normally closed poppet valve with G1/8 port that opens from 0 bar pressure differential and works up to 50 bar. Brass housing CW617N, nominal size 2 mm, Kv 0.1 m³/h. It is actuated by a coil 110 V AC (50/60 Hz) with 30 VA holding power.

Net
€65.78
excl. VAT
Item FES-8214430
Manufacturer no. VZWD-B-L-M22C-M-G18-20-V-36-2A-A1-50
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VZWD-B-L-M22C-M-G18-20-V-36-2A-A1-50 opens and closes lines with G1/8 ports for pressures up to 50 bar. As a direct-acting poppet valve with 2 mm nominal size it needs no pilot pressure to switch, so it also works from 0 bar pressure differential.

Benefits

  • Switches from 0 bar pressure differential, direct-acting without minimum pressure
  • Medium pressure 0 to 50 bar
  • Flow rate Kv 0.1 m³/h
  • Housing in brass CW617N, corrosion resistance class CRC 1
  • Switching times 8 ms on and 25 ms off
  • Media temperature -10 to 140 °C, viscosity up to 25 mm²/s

Applications

Typical media for valve 8214430: compressed air, water, mineral oil, inert gases and neutral liquids at up to 140 °C. Installed directly in the line, any orientation. Plug to EN 175301-803, square design. Ambient temperature -10 to 80 °C.

Technical data

FeatureValue
TypeVZWD-B-L-M22C-M-G18-20-V-36-2A-A1-50
Festo part number8214430
DesignDirectly actuated poppet valve
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection process valveG1/8
Electrical connectionPlug, to EN 175301-803, square design
Nominal size2 mm
Valve function2/2-way, single solenoid, closed
Manual overrideNone
Flow directionNon-reversible
MediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request
Pressure difference0 bar
Characteristic coil data110 V AC: 50/60 Hz, pick-up power 40 VA, holding power 30 VA
Insulation material classH
Permissible voltage fluctuations+15% / -10%
Duty cycle100%
Type of resetMechanical spring
Type of pilotingDirect
Medium pressure0 to 50 bar
Maximum viscosity25 mm²/s
Media temperature-10 to 140 °C
Ambient temperature-10 to 80 °C
Flow rate Kv0.1 m³/h
Switching time on8 ms
Switching time off25 ms
Note on materialsRoHS compliant
Material housingBrass
Material number housingCW617N
Material sealsFPM
CE mark (see declaration of conformity)To EU EMC Directive, to EU Low Voltage Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, to UK regulations for electrical equipment
Degree of protectionIP65
Corrosion resistance class CRC1 - low corrosion stress
ManufacturerFesto
Hersteller-NrVZWD-B-L-M22C-M-G18-20-V-36-2A-A1-50
EAN4052568826697
Zolltarifnummer84818079
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialBrass
ThreadG 1/8
Nominal size DN [mm]2
Seal materialFPM
Housing materialBrass CW617N
Function2/2 closed monostable
Actuation typeElectrical
Medientemperatur [°C]-10 bis 140
NormDIN EN 175301-803
Operating voltage110 V AC
Betriebsdruck max [bar]50
Protection ratingIP65
