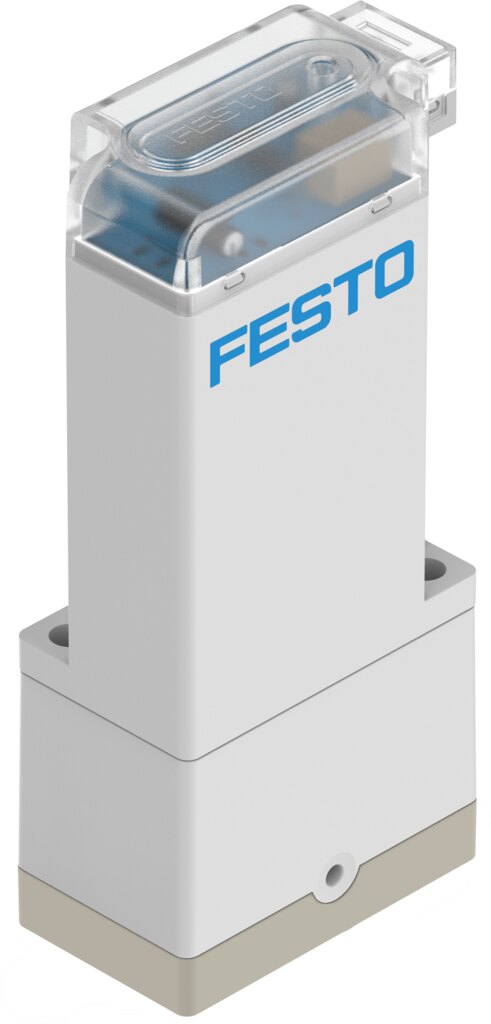

Media separated solenoid valve 3/2-way nominal size 2 mm EPDM diaphragm 12 to 24 V DC VYKC-F16-M32-20-PE-H2R - Festo 8172698

Festo ✓ Original product Brand new

Media separated switching: the EPDM diaphragm keeps liquid or gas away from the actuator, nominal size 2 mm. Medium pressure -0.75 to 2 bar, vacuum included, Kv 0.046 m³/h. Coil 12 to 24 V DC with 5.5 W high-current and 1.4 W low-current phase.

Net
€90.94
excl. VAT
Item FES-8172698
Manufacturer no. VYKC-F16-M32-20-PE-H2R
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The media separated solenoid valve VYKC-F16-M32-20-PE-H2R switches liquid and gaseous media as a 3/2-way valve. A rocker with a diaphragm seal made of EPDM separates the fluid chamber from the solenoid, so the medium only contacts EPDM and PEEK.

Benefits

  • Wetted materials PEEK, diaphragm and seals in EPDM
  • Medium pressure -0.75 to 2 bar, burst pressure 20 bar
  • Flow rate Kv 0.046 m³/h, standard nominal flow rate 62 l/min
  • Switching time 13 ms, switching frequency up to 4 Hz
  • Size 16 with grid dimension 17 mm, flange connection

Applications

Typical for dosing and analysis technology with media from 0 to 50 °C. Check the resistance of the wetted materials. Mounting with through-hole for M2.5 screw, degree of protection IP40.

Technical data

FeatureValue
TypeVYKC-F16-M32-20-PE-H2R
Festo part number8172698
DesignRocker valve with diaphragm seal
Sealing principleSoft
Material in contact with the mediumPEEK
Suitable for use with foodSee supplementary material information
Valve function3/2-way, monostable, open/closed
Nominal size2 mm
Flow directionReversible
Type of actuationElectrical
Type of pilotingDirect
Type of resetMechanical spring
Manual overrideNone
Mounting positionAny
Type of mountingWith through-hole for M2.5 screw
Electrical connection 1, connection typeCable with plug
Electrical connection 1, connector systemPlug pattern H
Electrical connection 1, connection pattern00995622
Size16
Grid dimension17 mm
Fluid connectionFlange
MediumLiquid media, gaseous media
Note on the mediumObserve resistance of materials that come into contact with the media, maximum particle size 5 µm
Media temperature0 to 50 °C
Media temperature for fluids0 to 50 °C
Ambient temperature0 to 50 °C
Storage temperature-20 to 70 °C
Medium pressure-0.75 to 2 bar
Burst pressure20 bar
Total leakage0.004 l/h
Operational voltage range DC12 to 24 V
Permissible voltage fluctuations± 10%
Information on power consumptionLow-current phase 1.4 W, high-current phase 5.5 W for 100 ms
Characteristic coil data12 - 24 V DC: low-current phase 1.4 W, high-current phase 5.5 W
Insulation material classB
Duty cycle100% in conjunction with holding current reduction, observe the notes on operating the solenoid valves
Maximum switching frequency4 Hz
Note on switching frequencyDependent on the ambient temperature and installation state
Switch-on time for fluids17 ms
Switching time on gaseous media13 ms
Switch-off time for fluids12 ms
Switching time off gaseous media3 ms
Standard nominal flow rate (standardised to DIN 1343)62 l/min
Note on standard nominal flow rateIn case of a pressure drop of 1 - 0 bar (gaseous media)
Flow rate Kv0.046 m³/h
Note on flow rate KvFor water as medium, pressure difference 1 bar
Water flow rate at max operating pressure0.07 m³/h, 1.2 l/min
Material housingPEEK
Material membraneEPDM
Material sealsEPDM
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP40
Note on degree of protectionIn mounted state
Instructions on useFor indoor use only
Corrosion resistance class CRC0 - no corrosion stress
ApprovalRCM
CE mark (see declaration of conformity)To EU EMC Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Weight (price list)0.06 kg
Weight0.06 kg
ManufacturerFesto
Hersteller-NrVYKC-F16-M32-20-PE-H2R
EAN4052568645984
Zolltarifnummer84818087
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]2
Seal materialEPDM
Function3/2 open/closed monostable
Actuation typeElectrical
Medientemperatur [°C]0 bis 50
Betriebsdruck max [bar]2
Pneumatic connectionFlange
Protection ratingIP40
Temperaturbereich0-50 °C
