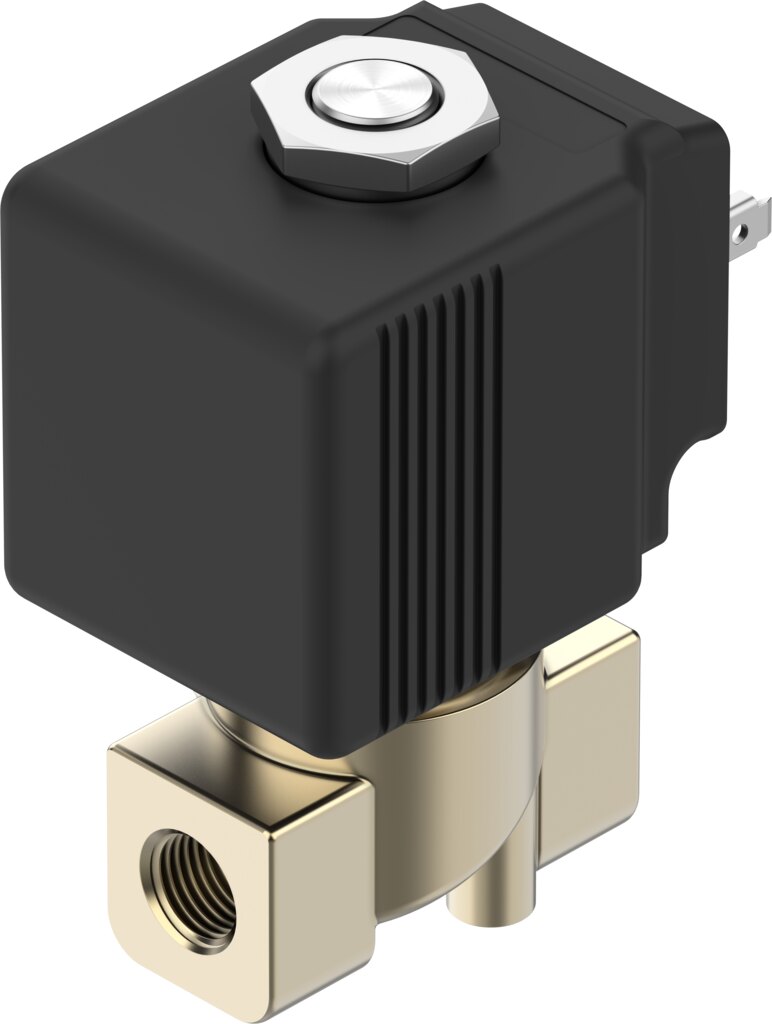

2/2-way solenoid valve G1/8 DN 1.5 mm brass 220/230 V AC VZWD-B-L-M22C-M-G18-15-V-36-3A-A1-80 - Festo 8214572

Festo ✓ Original product Brand new

For shut-off and dosing of water, oil or gas up to 80 bar: the VZWD opens directly, without minimum pressure, in 8 ms. G1/8 port, DN 1.5 mm, Kv 0.07 m³/h, 220/230 V AC coil, brass body, FPM seals.

Net
€65.78
excl. VAT
Item FES-8214572
Manufacturer no. VZWD-B-L-M22C-M-G18-15-V-36-3A-A1-80
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Where water, mineral oil or inert gases at up to 80 bar must be shut off reliably, the Festo solenoid valve VZWD-B-L-M22C-M-G18-15-V-36-3A-A1-80 switches directly via its solenoid. It needs no pressure difference and opens even in an unpressurised system, with Kv 0.07 m³/h at 1.5 mm nominal size.

Benefits

  • Switches from 0 bar: directly actuated, no minimum pressure difference, medium pressure 0 to 80 bar
  • Fast response: switching time 8 ms on, 25 ms off
  • Hot media: media temperature -10 to 140 °C, FPM seals
  • Proven body: brass CW617N, CRC 1 for environments with low corrosion stress
  • Easy installation: inline mounting in any position, plug to EN 175301-803, IP65

Applications

The valve suits shut-off and dosing tasks with water, mineral oil, inert gases and compressed air, for example in cooling circuits, flushing processes or lubrication systems. It is installed directly in the pipe via its G1/8 port.

Technical data

FeatureValue
Order codeVZWD-B-L-M22C-M-G18-15-V-36-3A-A1-80
Part number8214572
DesignDirectly actuated poppet valve
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Process valve connectionG1/8
Electrical connectionPlug, To EN 175301-803, Square design
Nominal size1.5 mm
Valve function2/2-way, single solenoid, closed
Manual overrideNone
Flow directionNon-reversible
MediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request
Pressure difference0 bar
Characteristic coil data220/230 V AC, 50/60 Hz, pick-up power 40 VA, holding power 30 VA
Insulation material classH
Permissible voltage fluctuations+15% / -10%
Duty cycle100%
Type of resetMechanical spring
Type of pilotingDirect
Medium pressure0 to 80 bar
Maximum viscosity25 mm²/s
Media temperature-10 to 140 °C
Ambient temperature-10 to 80 °C
Flow rate Kv0.07 m³/h
Switching time on8 ms
Switching time off25 ms
Note on materialsRoHS compliant
Material housingBrass
Material number housingCW617N
Material sealsFluoro rubber
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Degree of protectionIP65
Corrosion resistance class CRC1 - Low corrosion stress
ManufacturerFesto
Hersteller-NrVZWD-B-L-M22C-M-G18-15-V-36-3A-A1-80
EAN4052568789008
Zolltarifnummer84818079
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialBrass
ThreadG 1/8
Nominal size DN [mm]1,5
Seal materialFPM
Function2/2 closed monostable
Actuation typeElectrical
Medientemperatur [°C]-10 bis 140
NormDIN EN 175301-803
Operating voltage230 V AC
SeriesVZWD
Betriebsdruck max [bar]80
Pneumatic connectionG1/8
Protection ratingIP65
Temperature (max.)80
