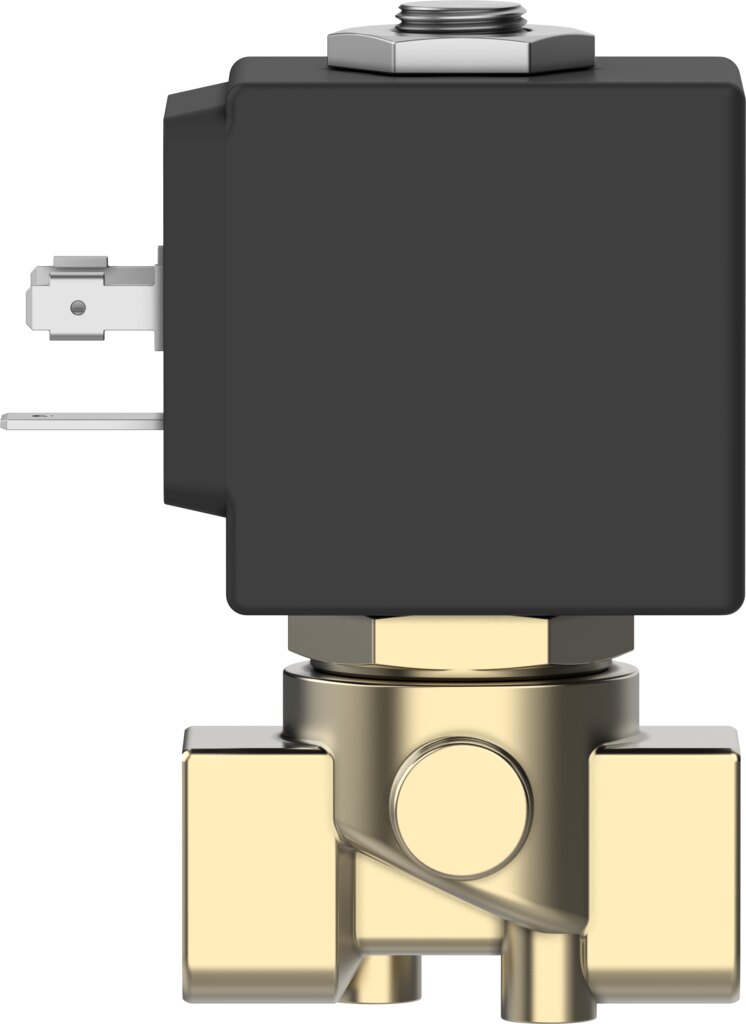

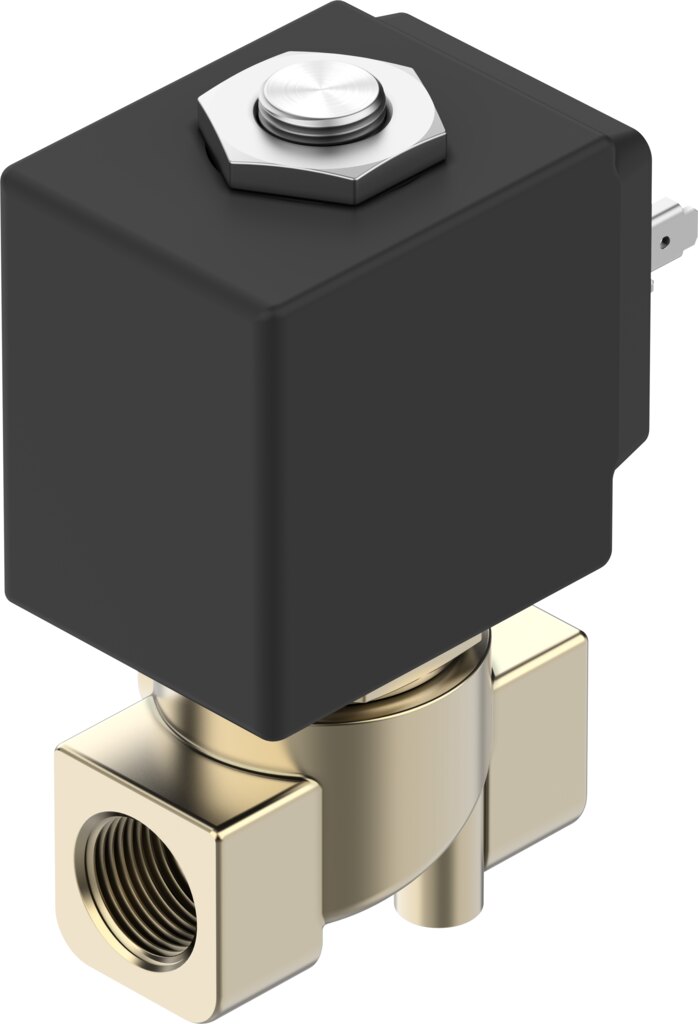

2/2-way solenoid valve G1/4 DN 4 mm brass 220/230 V AC VZWD-B-L-M22C-M-G14-40-V-30-3A-A1-8 - Festo 8214643
Normally closed solenoid valve that switches media up to 8 bar and 140 °C directly, regardless of differential pressure. With G1/4, 4 mm nominal size and Kv 0.36 m³/h, 220/230 V AC coil, brass body, IP65.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 4 mm nominal size and a G1/4 connection, the Festo solenoid valve VZWD-B-L-M22C-M-G14-40-V-30-3A-A1-8 doses and shuts off liquid and gaseous media up to 8 bar. Direct actuation makes it independent of differential pressure, and the 220/230 V AC coil opens it in 8 ms.
Benefits
- Fast response: switching time 8 ms on, 25 ms off
- Hot media: media temperature -10 to 140 °C, FPM seals
- Continuous duty: 100% duty cycle, 220/230 V AC coil (20 VA pick-up, 15 VA holding), insulation class F
- Proven body: brass CW617N, CRC 1 for environments with low corrosion stress
- Easy installation: inline mounting in any position, plug to EN 175301-803, IP65
Applications
Typical applications include cooling and flushing circuits, lubrication and oil supply lines and gas lines in machines and test rigs. The G1/4 connection screws directly into the line.
Technical data
| Feature | Value |
|---|---|
| Order code | VZWD-B-L-M22C-M-G14-40-V-30-3A-A1-8 |
| Part number | 8214643 |
| Design | Directly actuated poppet valve |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Process valve connection | G1/4 |
| Electrical connection | Plug, To EN 175301-803, Square design |
| Nominal size | 4 mm |
| Valve function | 2/2-way, single solenoid, closed |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request |
| Pressure difference | 0 bar |
| Characteristic coil data | 220/230 V AC, 50/60 Hz, pick-up power 20 VA, holding power 15 VA |
| Insulation material class | F |
| Permissible voltage fluctuations | +15% / -10% |
| Duty cycle | 100% |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Medium pressure | 0 to 8 bar |
| Maximum viscosity | 25 mm²/s |
| Media temperature | -10 to 140 °C |
| Ambient temperature | -10 to 80 °C |
| Flow rate Kv | 0.36 m³/h |
| Switching time on | 8 ms |
| Switching time off | 25 ms |
| Note on materials | RoHS compliant |
| Material housing | Brass |
| Material number housing | CW617N |
| Material seals | Fluoro rubber |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Weight | 0.3 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZWD-B-L-M22C-M-G14-40-V-30-3A-A1-8 |
| EAN | 4052568827687 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Brass |
| Thread | G 1/4 |
| Nominal size DN [mm] | 4 |
| Seal material | FPM |
| Function | 2/2 closed monostable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -10 bis 140 |
| Norm | DIN EN 175301-803 |
| Operating voltage | 230 V AC |
| Series | VZWD |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | G1/4 |
| Protection rating | IP65 |
| Temperature (max.) | 80 |
