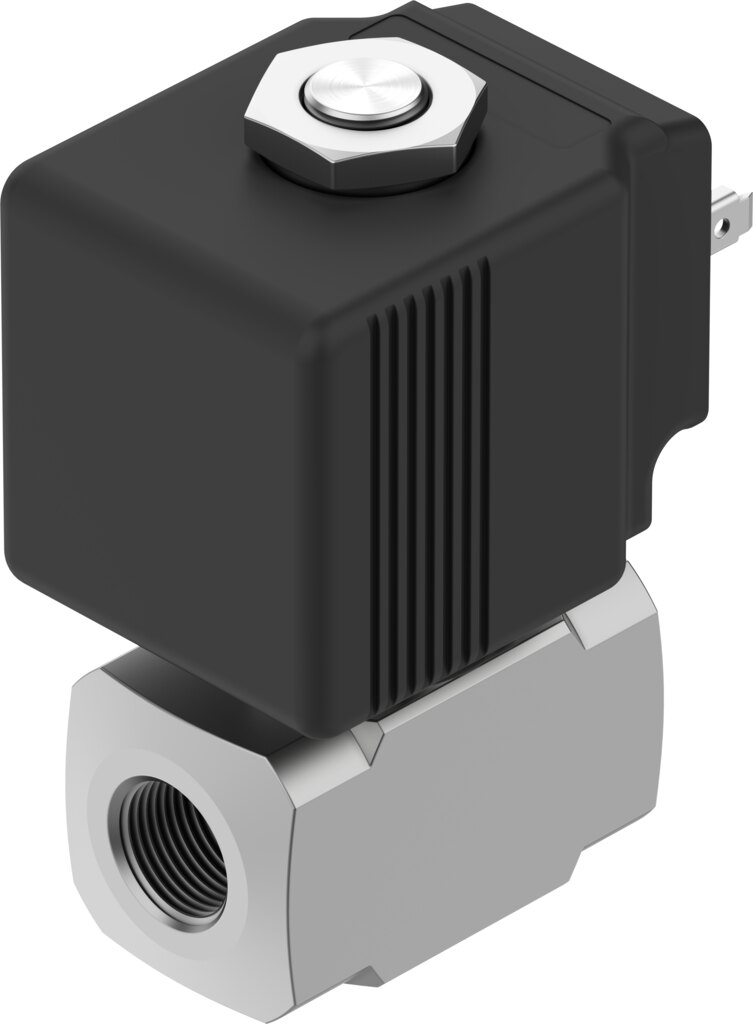

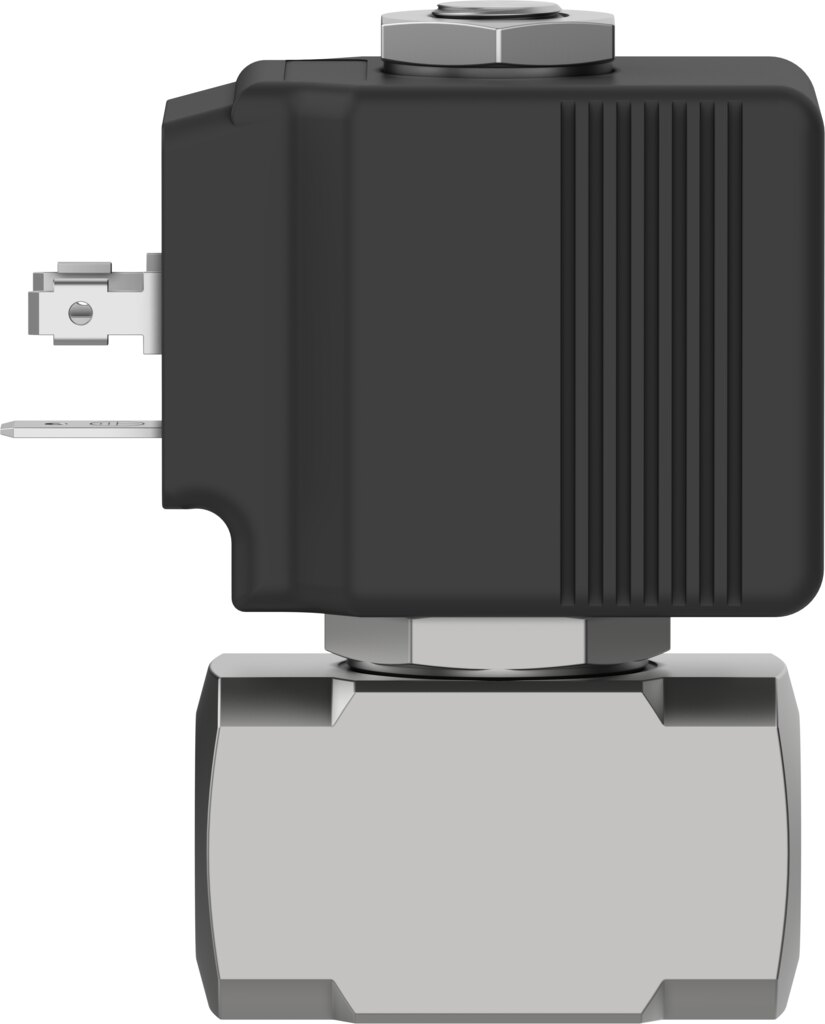

2/2-way solenoid valve G1/4 DN 2 mm stainless steel 24 V DC VZWD-B-L-M22C-M-G14-20-V-36-1-A1-40-R1 - Festo 8214576

Festo ✓ Original product Brand new

Directly actuated 2/2-way poppet valve for media up to 40 bar and 140 °C that switches from 0 bar pressure difference. G1/4 port, 2 mm nominal size, Kv 0.1 m³/h, 24 V DC coil with 100% duty cycle, stainless steel body.

Net
€110.15
excl. VAT
Item FES-8214576
Manufacturer no. VZWD-B-L-M22C-M-G14-20-V-36-1-A1-40-R1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Where water, mineral oil or inert gases at up to 40 bar must be shut off reliably, the Festo solenoid valve VZWD-B-L-M22C-M-G14-20-V-36-1-A1-40-R1 switches directly via its solenoid. It needs no pressure difference and opens even in an unpressurised system, with Kv 0.1 m³/h at 2 mm nominal size.

Benefits

  • Switches from 0 bar: directly actuated, no minimum pressure difference, medium pressure 0 to 40 bar
  • Hot media: media temperature -10 to 140 °C, FPM seals
  • Continuous duty: 100% duty cycle, 24 V DC coil (27 W), insulation class H
  • Corrosion resistant: stainless steel 1.4305 body, corrosion resistance class CRC 3
  • Easy installation: inline mounting in any position, plug to EN 175301-803, IP65

Applications

Typical applications include cooling and flushing circuits, lubrication and oil supply lines and gas lines in machines and test rigs. The G1/4 connection screws directly into the line. For humid or chemically demanding environments, the stainless steel version with G1/4 is the right choice.

Technical data

FeatureValue
Order codeVZWD-B-L-M22C-M-G14-20-V-36-1-A1-40-R1
Part number8214576
DesignDirectly actuated poppet valve
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Process valve connectionG1/4
Electrical connectionPlug, To EN 175301-803, Square design
Nominal size2 mm
Valve function2/2-way, single solenoid, closed
Manual overrideNone
Flow directionNon-reversible
MediumCompressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request
Pressure difference0 bar
Characteristic coil data24 V DC, 27 W
Insulation material classH
Permissible voltage fluctuations±10%
Duty cycle100%
Type of resetMechanical spring
Type of pilotingDirect
Medium pressure0 to 40 bar
Maximum viscosity25 mm²/s
Media temperature-10 to 140 °C
Ambient temperature-10 to 80 °C
Flow rate Kv0.1 m³/h
Switching time on8 ms
Switching time off25 ms
Note on materialsRoHS compliant
Material housingHigh-alloy stainless steel
Material number housing1.4305
Material sealsFluoro rubber
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment
Degree of protectionIP65
Corrosion resistance class CRC3 - High corrosion stress
Weight0.46 kg
ManufacturerFesto
Hersteller-NrVZWD-B-L-M22C-M-G14-20-V-36-1-A1-40-R1
EAN4052568789046
Zolltarifnummer84818073
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
ThreadG 1/4
Nominal size DN [mm]2
Seal materialFPM
Function2/2 closed monostable
Actuation typeElectrical
Medientemperatur [°C]-10 bis 140
NormDIN EN 175301-803
Operating voltage24 V DC
SeriesVZWD
Betriebsdruck max [bar]40
Pneumatic connectionG1/4
Protection ratingIP65
Temperature (max.)80
