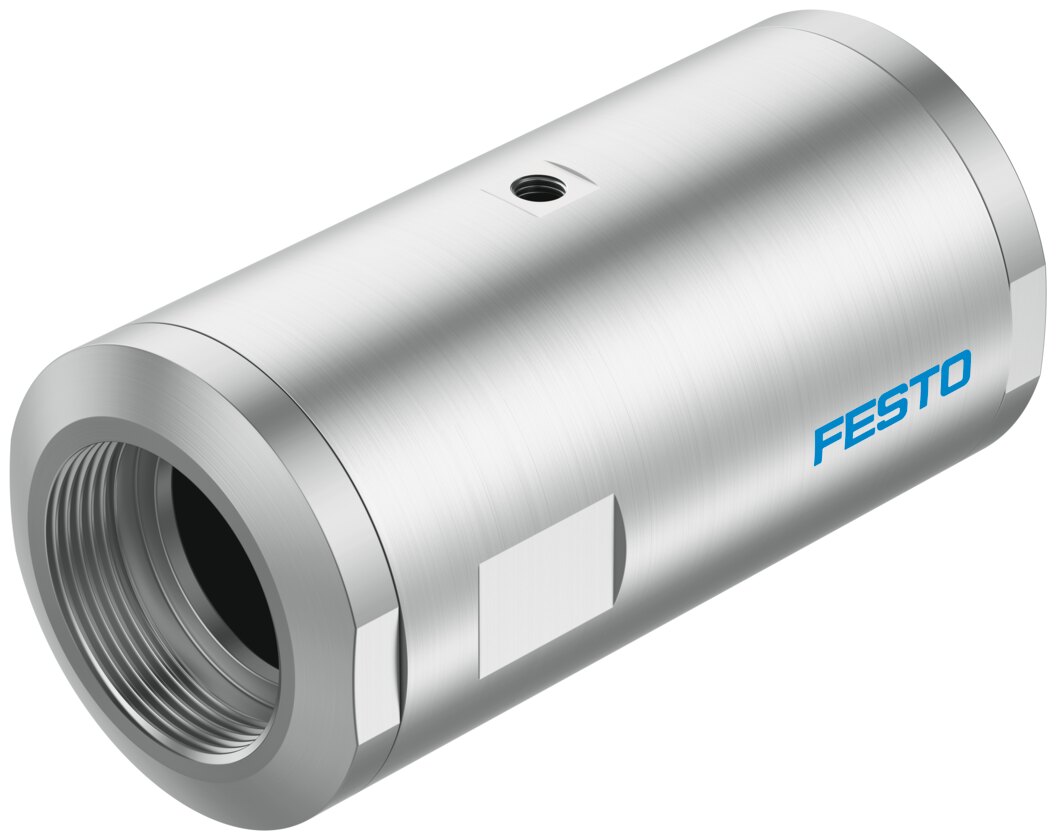

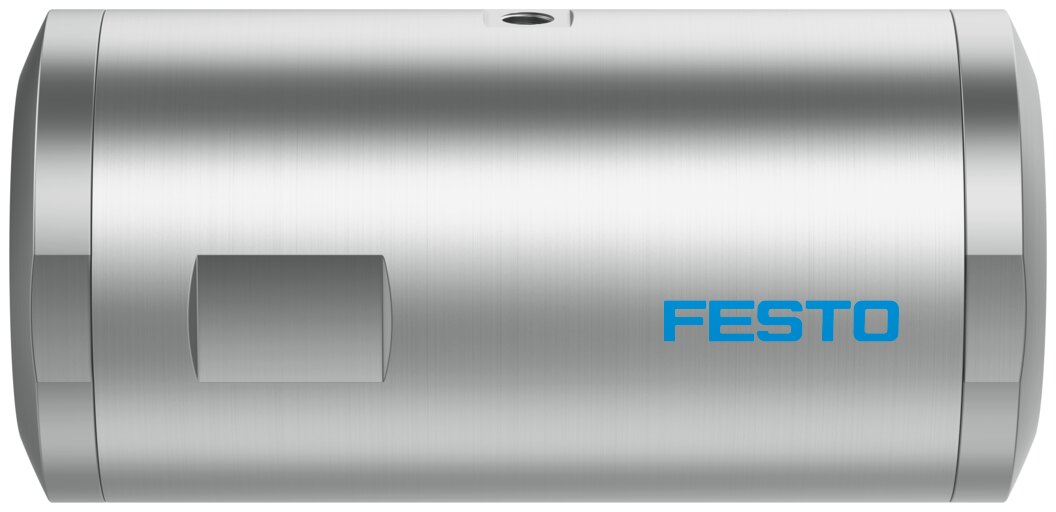

Pneumatic pinch valve 2/2 NO 2 NPT DN 50 aluminium VZQA-C-M22U-50-TT-ALV4E-2 - Festo 8161476
The pinch valve VZQA-C-M22U-50-TT-ALV4E-2 switches media up to 4000 mm²/s viscosity via an EPDM sleeve and is normally open. Connection 2 NPT, medium pressure 0 to 2 bar. Pilot pressure 0 to 4.5 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For compressed air and water up to 4000 mm²/s viscosity, the pinch valve VZQA-C-M22U-50-TT-ALV4E-2 closes the DN 50 passage by squeezing a sleeve. It is normally open, the Kv value is 72 m³/h.
Benefits at a glance
- Medium pressure 0 to 2 bar
- Kv value 72 m³/h in DN 50
- Housing in wrought aluminium alloy
- Media from -5 to 100 °C
- Pilot pressure (operating pressure) 0 to 4.5 bar
- Switching times 200 ms on and 1000 ms off
Applications
Festo lists the following media for VZQA-C-M22U-50-TT-ALV4E-2: compressed air to ISO 8573-1:2010 [-:-:1], water. Mounting position is freely selectable. Suitable for use with food: see supplementary material information. Suitable for battery production with reduced Cu/Zn/Ni values (F1a).
Technical data
| Feature | Value |
|---|---|
| Type | VZQA-C-M22U-50-TT-ALV4E-2 |
| Festo part number | 8161476 |
| Design | Pinch valve, pneumatically actuated |
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | 2 NPT |
| Nominal size DN | 50 |

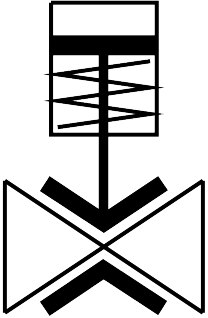

| Valve function | 2/2-way, single solenoid, open |
| Flow direction | Reversible |
| Medium pressure | 0 to 2 bar |
| Note on the medium pressure | Use in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media flow. |
| Operating pressure | 0 to 4.5 bar |
| Nominal pressure PN | 10 |
| Differential pressure | 2.5 bar |
| Burst pressure | 16 bar |
| Overload pressure | 7.8 bar |
| Type of reset | Rebound resilience |
| Type of piloting | Externally actuated |
| Auxiliary pilot air port 12 | G1/8 |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:1] |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:1], Water |
| Max. viscosity | 4000 mm²/s |
| Media temperature | -5 to 100 °C |
| Ambient temperature | -5 to 60 °C |
| Storage temperature | 5 to 20 °C |
| Flow rate Kv | 72 m³/h |
| Switching time on | 200 ms |
| Switching time off | 1000 ms |
| Note on materials | RoHS compliant |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Material housing | Wrought aluminium alloy |
| Material housing cover | Wrought aluminium alloy |
| Material seals | VMQ |
| Material shut-off element | EPDM |
| Product weight | 2090 g |
| Suitable for use with food | See supplementary material information |
| Material bowl | Die-cast aluminium |
| Manufacturer | Festo |
| Hersteller-Nr | VZQA-C-M22U-50-TT-ALV4E-2 |
| EAN | 4052568611361 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | NPT 2 |
| Nominal size DN [mm] | 50 |
| Nominal pressure PN [bar] | 10 |
| Seal material | VMQ |
| Housing material | Aluminium |
| Function | 2/2 open monostable |
| Actuation type | pneumatic |
| Medientemperatur [°C] | -5 bis 100 |
| Series | VZQA |
