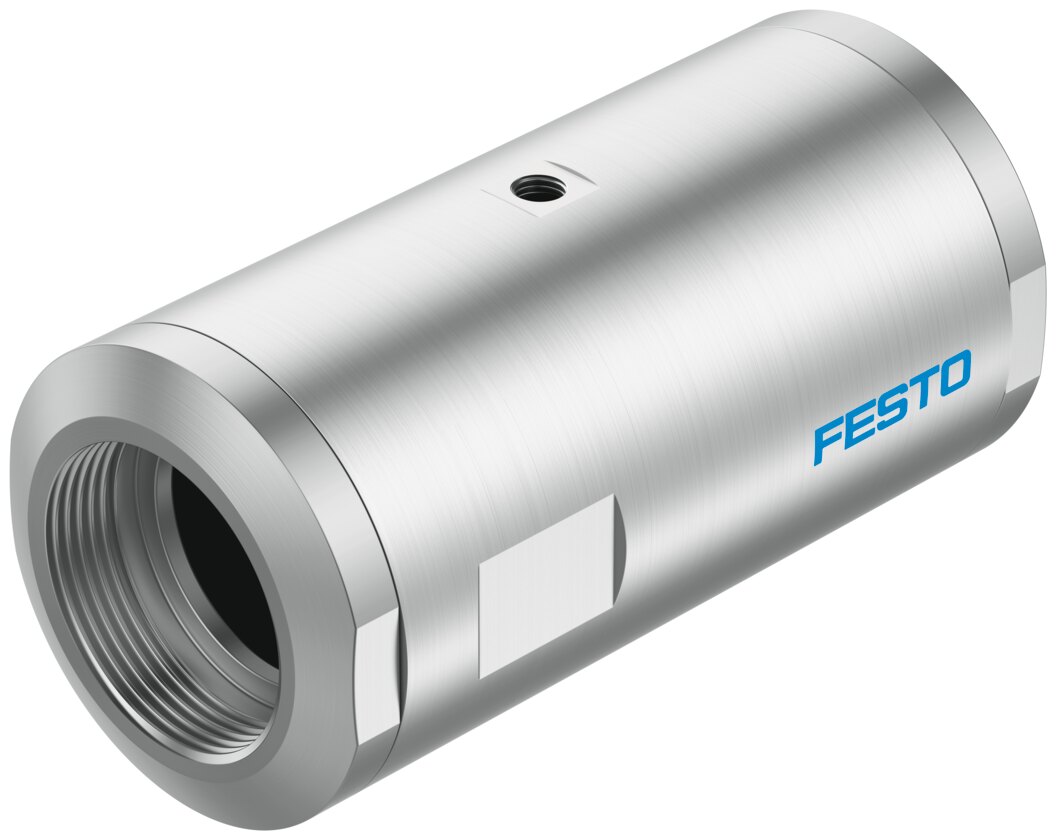

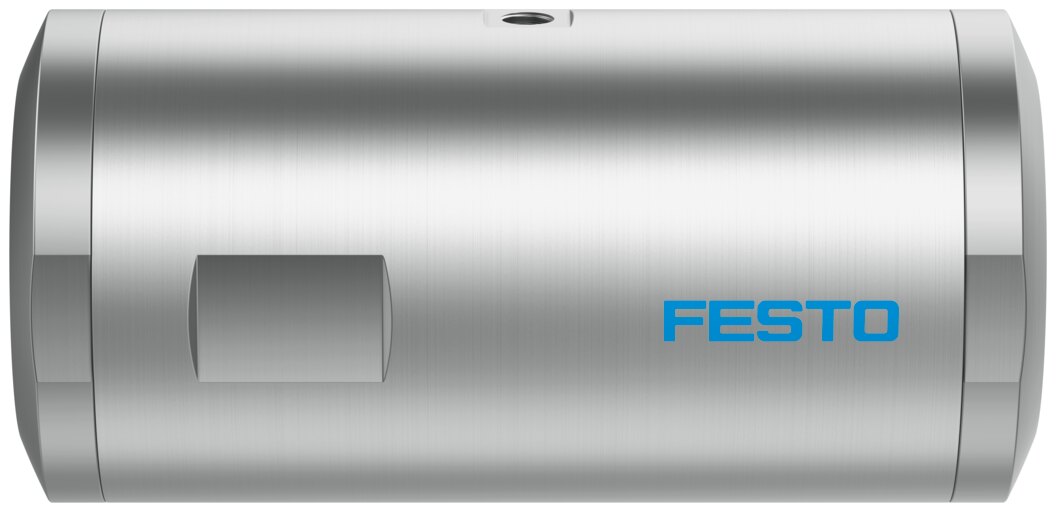

Pneumatic pinch valve 2/2 NO G2 DN 50 stainless steel VZQA-C-M22U-50-GG-V2V4E-2 - Festo 8172745

Festo ✓ Original product Brand new

The pinch valve VZQA-C-M22U-50-GG-V2V4E-2 switches media up to 4000 mm²/s viscosity via an EPDM sleeve and is normally open. Connection G2, medium pressure 0 to 2 bar. Pilot pressure 0 to 4.5 bar.

Net
€791.19
excl. VAT
Item FES-8172745
Manufacturer no. VZQA-C-M22U-50-GG-V2V4E-2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

In the pinch valve VZQA-C-M22U-50-GG-V2V4E-2, the sleeve in the DN 50 passage is squeezed pneumatically and closes the flow. It is normally open, the Kv value is 72 m³/h.

Benefits

  • Medium pressure 0 to 2 bar
  • Kv value 72 m³/h in DN 50
  • Housing in high-alloy stainless steel 1.4307
  • Media temperature -5 to 100 °C
  • Switching times 200 ms on and 1000 ms off
  • Pilot pressure (operating pressure) 0 to 4.5 bar

Applications

Approved media: compressed air to ISO 8573-1:2010 [-:-:1], water. Mounting position is freely selectable. Suitable for use with food: see supplementary material information. Suitable for battery production with reduced Cu/Zn/Ni values (F1a).

Technical data

FeatureValue
TypeVZQA-C-M22U-50-GG-V2V4E-2
Festo part number8172745
DesignPinch valve, pneumatically actuated
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveG2
Nominal size DN50

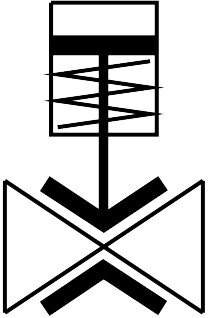

Valve function2/2-way, single solenoid, open
Flow directionReversible
Medium pressure0 to 2 bar
Note on the medium pressureUse in the vacuum range was tested up to -0.09 MPa with the air at room temperature. Depending on the application, a counter-vacuum may have to be created on the control side to guarantee the media flow.
Operating pressure0 to 4.5 bar
Nominal pressure PN10
Differential pressure2.5 bar
Burst pressure16 bar
Overload pressure7.8 bar
Type of resetRebound resilience
Type of pilotingExternally actuated
Auxiliary pilot air port 12G1/8
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:1]
MediumCompressed air to ISO 8573-1:2010 [-:-:1], Water
Max. viscosity4000 mm²/s
Media temperature-5 to 100 °C
Ambient temperature-5 to 60 °C
Storage temperature5 to 20 °C
Flow rate Kv72 m³/h
Switching time on200 ms
Switching time off1000 ms
Note on materialsRoHS compliant
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Material housingHigh-alloy stainless steel
Material number housing1.4307
Material housing coverHigh-alloy stainless steel
Material number housing cover1.4404
Material sealsVMQ
Material shut-off elementEPDM
Product weight2886 g
Suitable for use with foodSee supplementary material information
Material bowlDie-cast aluminium
Weight3 kg
ManufacturerFesto
Hersteller-NrVZQA-C-M22U-50-GG-V2V4E-2
EAN4052568611385
Zolltarifnummer84818073
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel
ThreadG 2
Nominal size DN [mm]50
Nominal pressure PN [bar]10
Seal materialVMQ
Housing materialStainless steel
Function2/2 open monostable
Actuation typepneumatic
Medientemperatur [°C]-5 bis 100
SeriesVZQA
