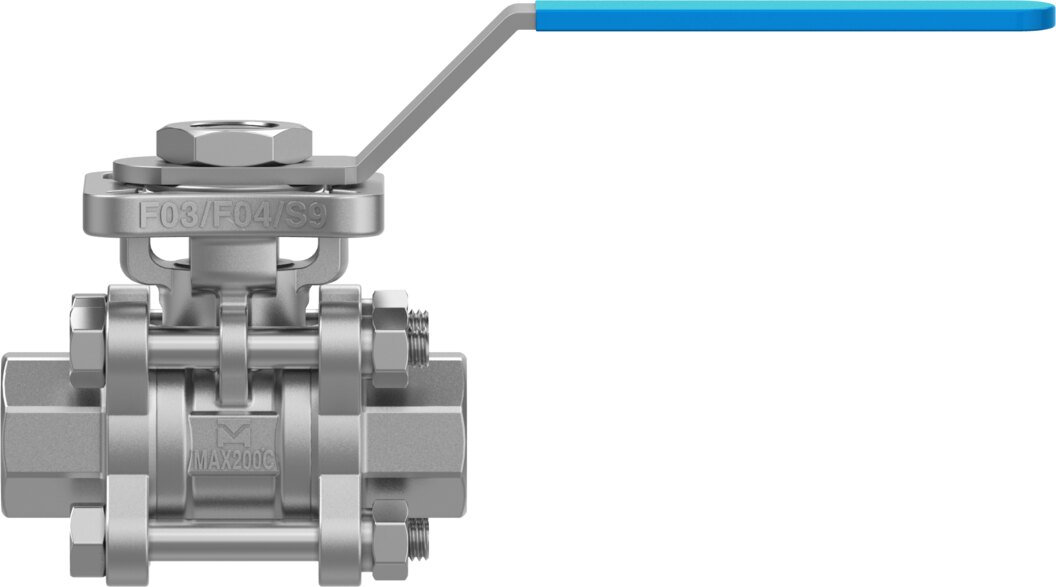

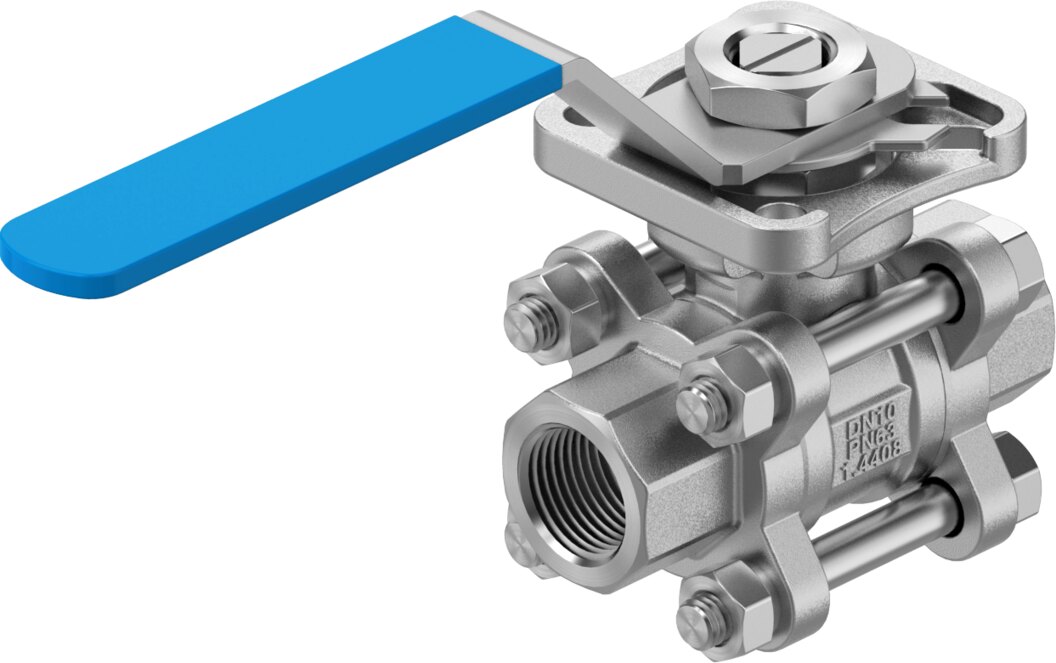

2-way ball valve stainless steel 3/8 NPT DN 10 PN 63 VZBE-3/8-T-63-T-2-F0304-M-V15V15 - Festo 8096664

Festo ✓ Original product Brand new

The 2-way ball valve VZBE-3/8-T-63-T-2-F0304-M-V15V15 for DN 10 lines is rated for nominal pressure PN 63 and comes with connection 3/8 NPT. It accepts a quarter turn actuator via the F0304 flange pattern to ISO 5211, flow rate is Kv 5.8 m³/h. Media from -20 to 200 °C.

Net
€60.25
excl. VAT
Item FES-8096664
Manufacturer no. VZBE-3/8-T-63-T-2-F0304-M-V15V15
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For process lines DN 10 up to PN 63, the 2-way ball valve VZBE-3/8-T-63-T-2-F0304-M-V15V15 provides shut-off with 3/8 NPT connection and ISO 5211 flange. Flow rate is Kv 5.8 m³/h.

Benefits

  • Kv value 5.8 m³/h in DN 10
  • Valve rated for nominal pressure PN 63
  • Breakaway torque 7 Nm at nominal pressure as basis for actuator sizing
  • Media temperature -20 to 200 °C
  • Mounting flange F0304 to ISO 5211 for direct actuator mounting
  • Housing and ball in cast stainless steel 1.4408

Applications

Suitable for vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Any mounting position. ATEX explosion protection: zones 1, 2, 21 and 22. A matching quarter turn actuator mounts directly on the ISO 5211 interface.

Technical data

FeatureValue
TypeVZBE-3/8-T-63-T-2-F0304-M-V15V15
Festo part number8096664
Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve3/8 NPT
Switching position indicatorSlot direction = flow direction
Flange hole patternF0304
Inside diameter12.5 mm
Nominal size DN10
Valve function2/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN7 Nm
Based on standardISO 5211
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20 to 200 °C
Flow rate Kv5.8 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408
Material seat sealPTFE, modified
Material sealsFluoro rubber, PTFE
Material ballCast stainless steel
Material number ball1.4408
Material shaftHigh-alloy stainless steel
Material number shaft1.4401
Product weight500 g
ApprovalCRN
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
ManufacturerFesto
Hersteller-NrVZBE-3/8-T-63-T-2-F0304-M-V15V15
EAN4052568453350
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
ThreadNPT 3/8
Nominal size DN [mm]10
Nominal pressure PN [bar]63
Seal materialFKM, PTFE
Housing materialStainless steel 1.4408
Function2/2
Actuation typeMechanical
Medientemperatur [°C]-20 bis 200
NormISO 5211
SeriesVZBE
