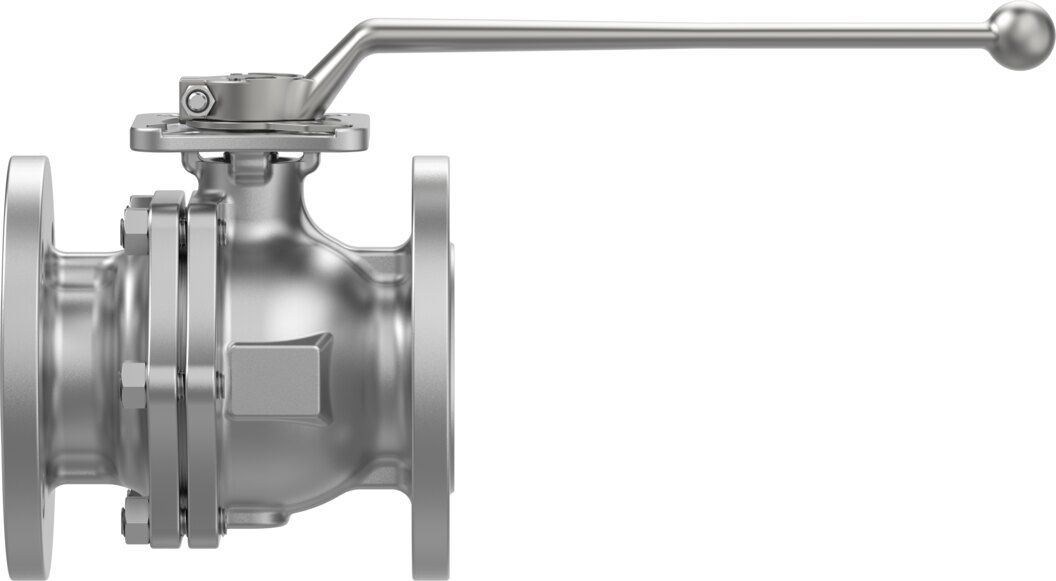

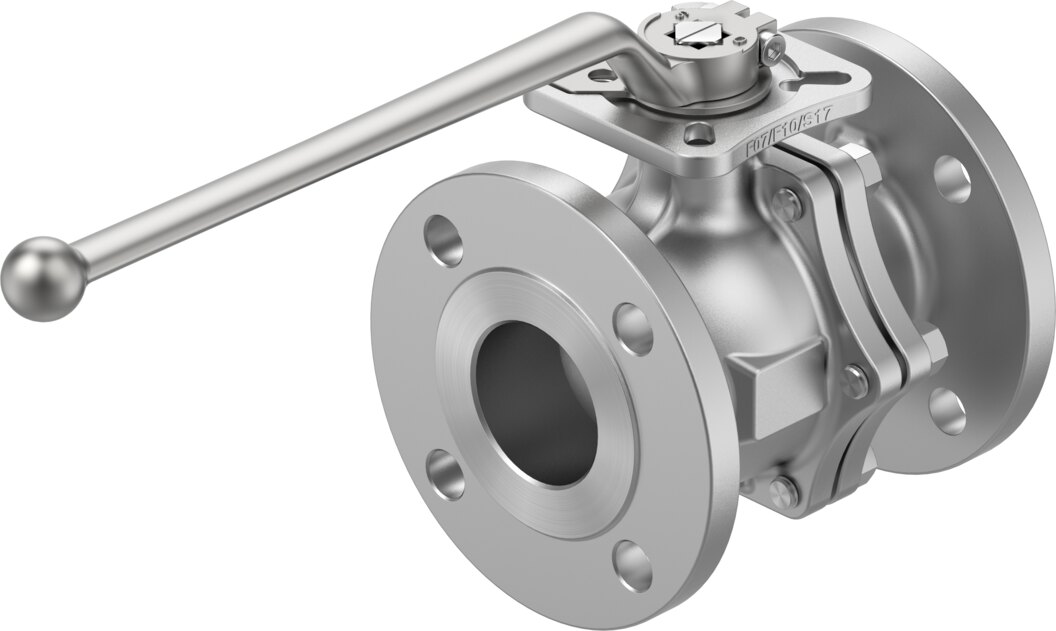

2-way ball valve stainless steel ANSI class 150 flange DN 65 PN 20 VZBF-21/2-P1-20-D-2-F0710-M-V15V15 - Festo 8097473

Festo ✓ Original product Brand new

The 2-way ball valve VZBF-21/2-P1-20-D-2-F0710-M-V15V15 for DN 65 lines is rated for nominal pressure PN 20 and comes with connection flange to ANSI B16.5 class 150. It accepts a quarter turn actuator via the F0710 flange pattern to ISO 5211, flow rate is Kv 707 m³/h. Media from -20 to 200 °C.

Net
€686.34
excl. VAT
Item FES-8097473
Manufacturer no. VZBF-21/2-P1-20-D-2-F0710-M-V15V15
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The 2-way ball valve VZBF-21/2-P1-20-D-2-F0710-M-V15V15 shuts off pipelines of nominal size DN 65 and is rated for nominal pressure PN 20. Sizing value: Kv 707 m³/h.

Key advantages

  • Flow rate Kv 707 m³/h at nominal size DN 65
  • Nominal pressure PN 20 for the valve body
  • Housing and ball in cast stainless steel 1.4408
  • Breakaway torque 60 Nm at nominal pressure as basis for actuator sizing
  • Mounting flange F0710 to ISO 5211 for direct actuator mounting
  • Media from -20 to 200 °C

Applications

Festo lists the following media for VZBF-21/2-P1-20-D-2-F0710-M-V15V15: vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Any mounting position. For potentially explosive areas in zones 1, 2, 21 and 22 (ATEX). A matching quarter turn actuator mounts directly on the ISO 5211 interface.

Technical data

FeatureValue
TypeVZBF-21/2-P1-20-D-2-F0710-M-V15V15
Festo part number8097473
Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveFlange to ANSI B16.5 class 150
Switching position indicatorSlot direction = flow direction
Flange hole patternF0710
Inside diameter64 mm
Nominal size DN65
Valve function2/2
Flow directionReversible
Nominal pressure PN20
Breakaway torque at differential pressure, nominal pressure, process valve PN60 Nm
Based on standardISO 5211
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20 to 200 °C
Flow rate Kv707 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408
Material seat sealPTFE, PTFE, modified
Material sealsFluoro rubber, Graphite, PCTFE, PTFE
Material ballCast stainless steel
Material number ball1.4408
Material shaftHigh-alloy stainless steel
Material number shaft1.4401
Product weight14500 g
ApprovalAPI607, CRN
CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
ManufacturerFesto
Hersteller-NrVZBF-21/2-P1-20-D-2-F0710-M-V15V15
EAN4052568453671
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
Nominal size DN [mm]65
Nominal pressure PN [bar]20
Seal materialFKM, PCTFE, PTFE, graphite
Housing materialStainless steel 1.4408
Function2/2
Actuation typeMechanical
Medientemperatur [°C]-20 bis 200
NormISO 5211
SeriesVZBF
