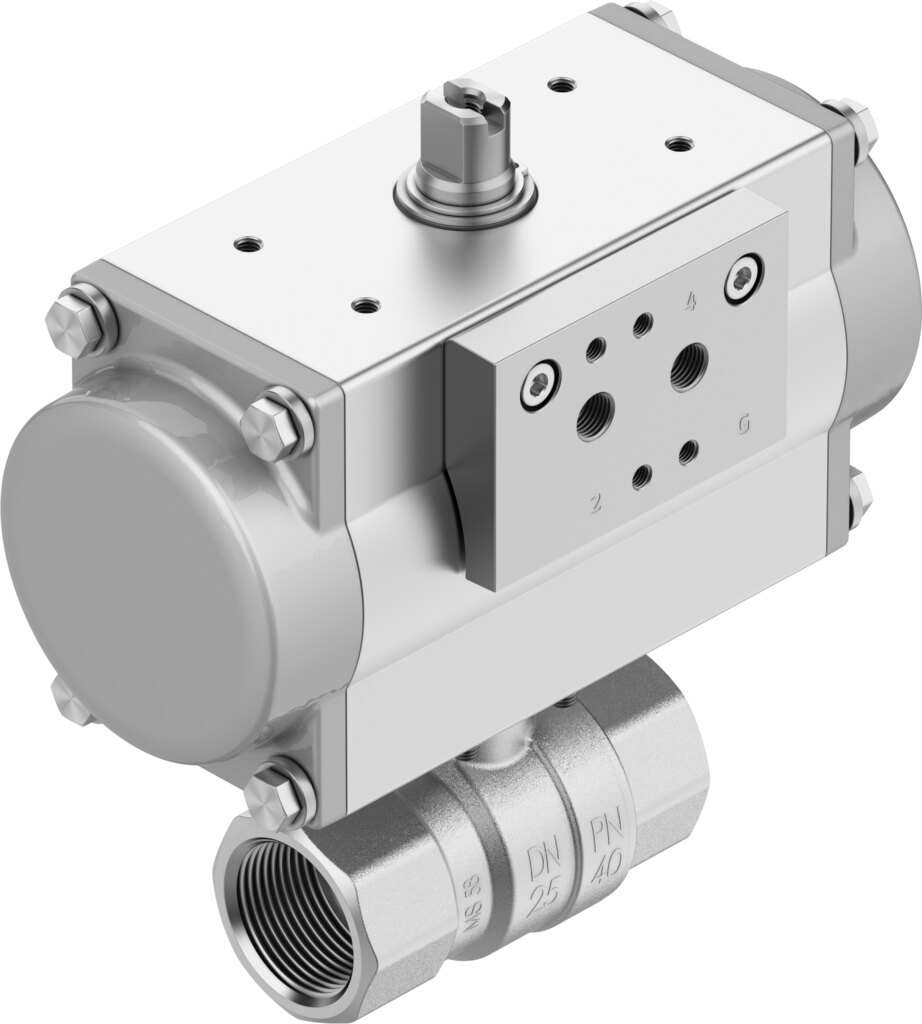

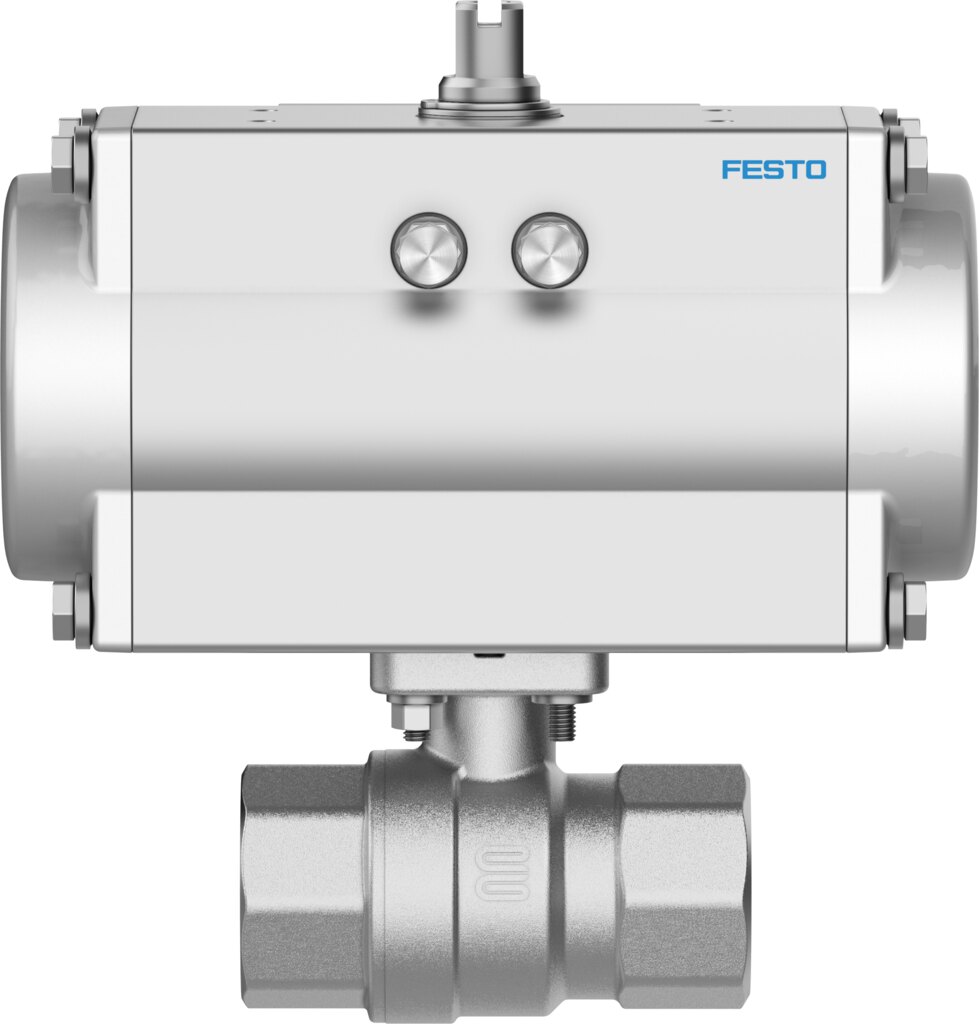

Ball valve unit VAPB-A-1-F-40-F0304-PB40 - Festo 8191930
Net
excl. VAT
€326.81
Item
FES-8191930
Manufacturer no.
VAPB-A-1-F-40-F0304-PB40
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | Quarter turn actuator |
|---|---|
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | Rp1 |
| Switching position indicator | Slot direction = flow direction |
| Flange hole pattern | F0304 |
| Nominal size DN | 25 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Operating pressure | 5.5 ... 8 bar |
| Nominal pressure PN | 40 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 8.5 Nm |
| Based on standard | ISO 5211 |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water – no steam, Neutral fluids, Other media on request |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature | -10 ... 200 °C |
| Flow rate Kv | 70 m³/h |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | Brass, nickel-plated |
| Material number housing | 2,0402, CW617N |
| Material seat seal | PTFE |
| Material seals | HNBR, PTFE |
| Material ball | Brass, Hard chrome-plated |
| Material number ball | 2,0402, CW617N |
| Material shaft | Brass |
| Material number shaft | 2,0401, CW614N |
| Product weight | 3080 g |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Weight | 3.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VAPB-A-1-F-40-F0304-PB40 |
| EAN | 4052568715939 |
| Zolltarifnummer | 84818081 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
