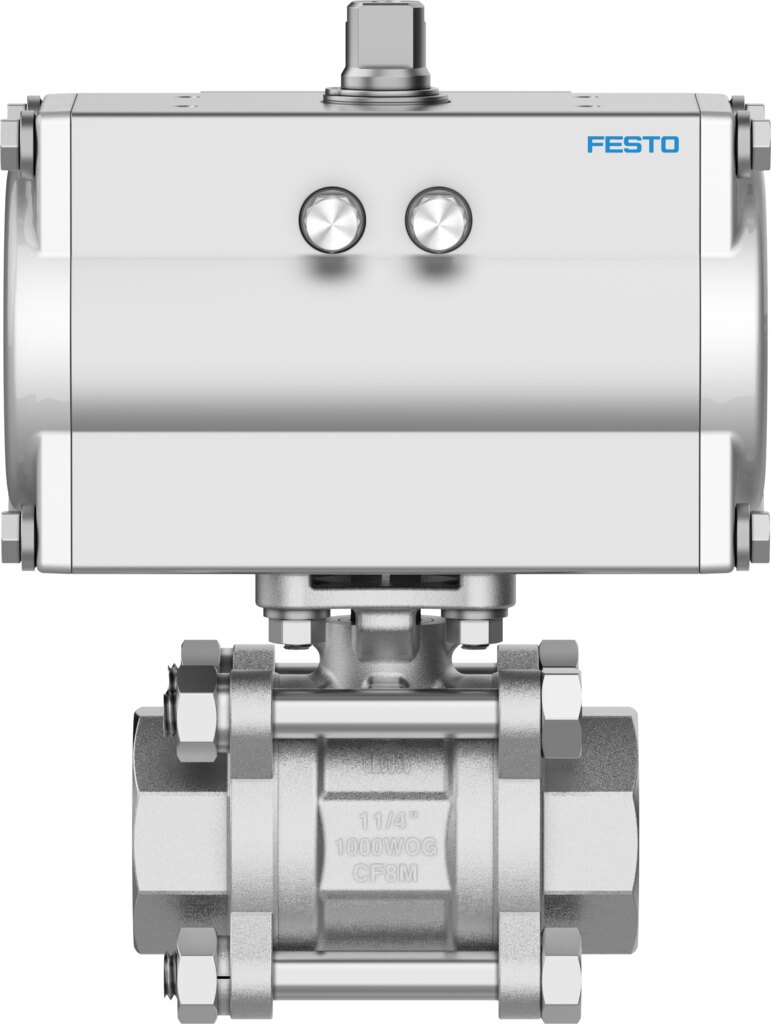

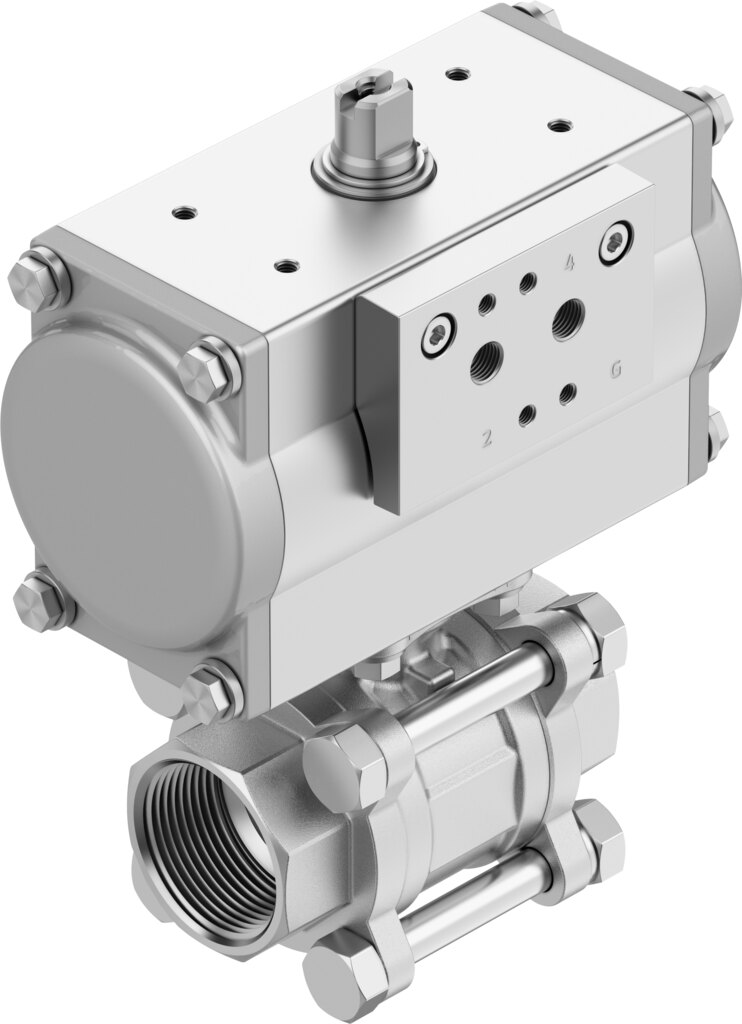

Ball valve unit with quarter turn actuator stainless steel 3/4 NPT DN 20 PN 63 VZBE-A-3/4-T-63-T-2-F0304-V15V15-PA20 - Festo 8191898

Festo ✓ Original product Brand new

Ball valve unit VZBE-A-3/4-T-63-T-2-F0304-V15V15-PA20 with pneumatic quarter turn actuator for DN 20 lines up to PN 63, mounted and ready for use. Connection 3/4 NPT, housing in cast stainless steel, Kv 59 m³/h. Actuator for operating pressure 5.5 to 8 bar.

Net
€244.35
excl. VAT
Item FES-8191898
Manufacturer no. VZBE-A-3/4-T-63-T-2-F0304-V15V15-PA20
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For remotely operated shut-off in DN 20 lines, VZBE-A-3/4-T-63-T-2-F0304-V15V15-PA20 supplies valve and quarter turn actuator from one source, rated for PN 63. The Kv value is 59 m³/h.

Benefits

  • Kv value 59 m³/h in DN 20
  • Nominal pressure PN 63 for the valve body
  • Quarter turn actuator for operating pressure 5.5 to 8 bar
  • Media from -10 to 200 °C
  • Housing and ball in cast stainless steel 1.4408
  • Actuator interface F0304 to ISO 5211

Applications

Approved media: compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water - no steam, neutral fluids, other media on request. Any mounting position. The VZBE type 8191898 is approved for ATEX zones 1, 2, 21 and 22.

Technical data

FeatureValue
TypeVZBE-A-3/4-T-63-T-2-F0304-V15V15-PA20
Festo part number8191898
DesignQuarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve3/4 NPT
Switching position indicatorSlot direction = flow direction
Flange hole patternF0304
Nominal size DN20
Valve function2/2
Flow directionReversible
Operating pressure5.5 to 8 bar
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN9 Nm
Based on standardISO 5211
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10 to 200 °C
Flow rate Kv59 m³/h
Max. surface temperature assembly+105°C...+280°C, T4...T2
explosion group assemblyIIC, IIIC
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408
Material seat sealPTFE
Material sealsFluoro rubber, PTFE
Material ballCast stainless steel
Material number ball1.4408
Material shaftHigh-alloy stainless steel
Product weight1940 g
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Explosion ambient temperature-10°C <= Ta <= +80°C
Corrosion resistance class CRC1 - Low corrosion stress
Weight2.1 kg
ManufacturerFesto
Hersteller-NrVZBE-A-3/4-T-63-T-2-F0304-V15V15-PA20
EAN4052568715595
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
ThreadNPT 3/4
Nominal size DN [mm]20
Nominal pressure PN [bar]63
Seal materialFKM, PTFE
Housing materialStainless steel 1.4408
Function2/2
Actuation typepneumatic
Medientemperatur [°C]-10 bis 200
NormISO 5211
SeriesVZBE
