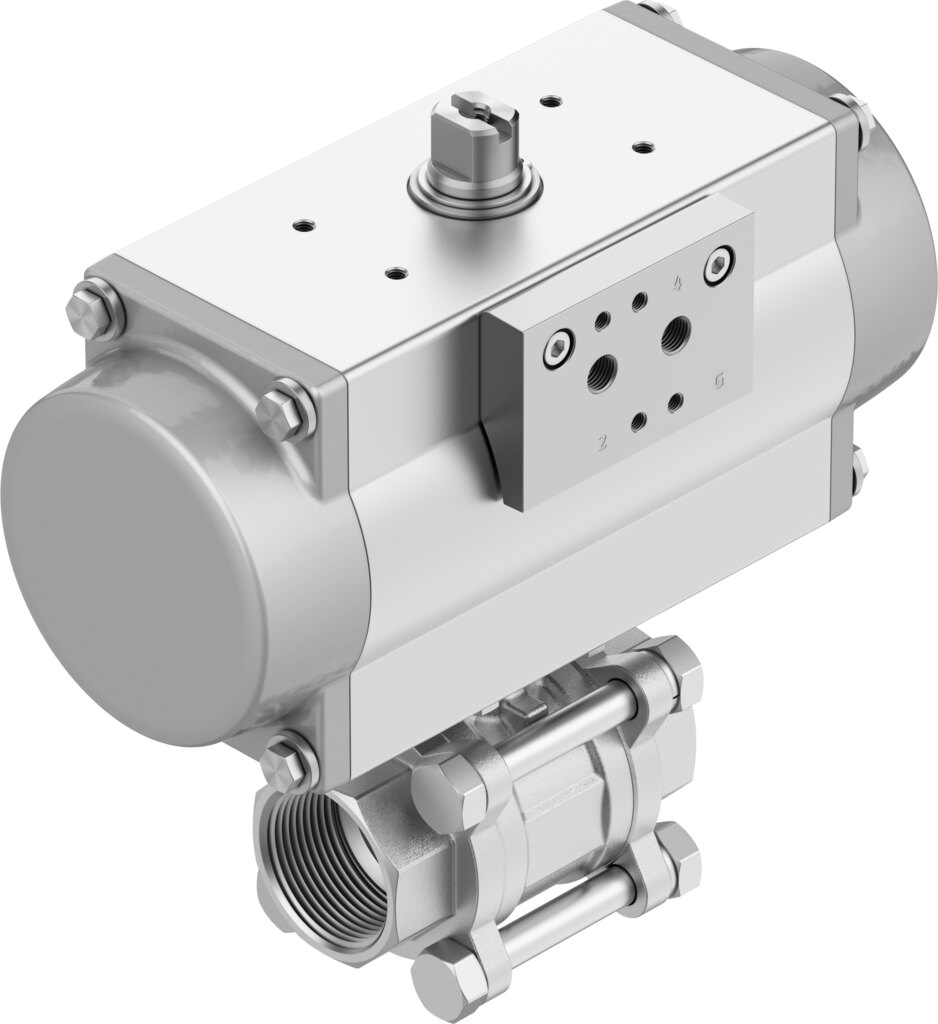

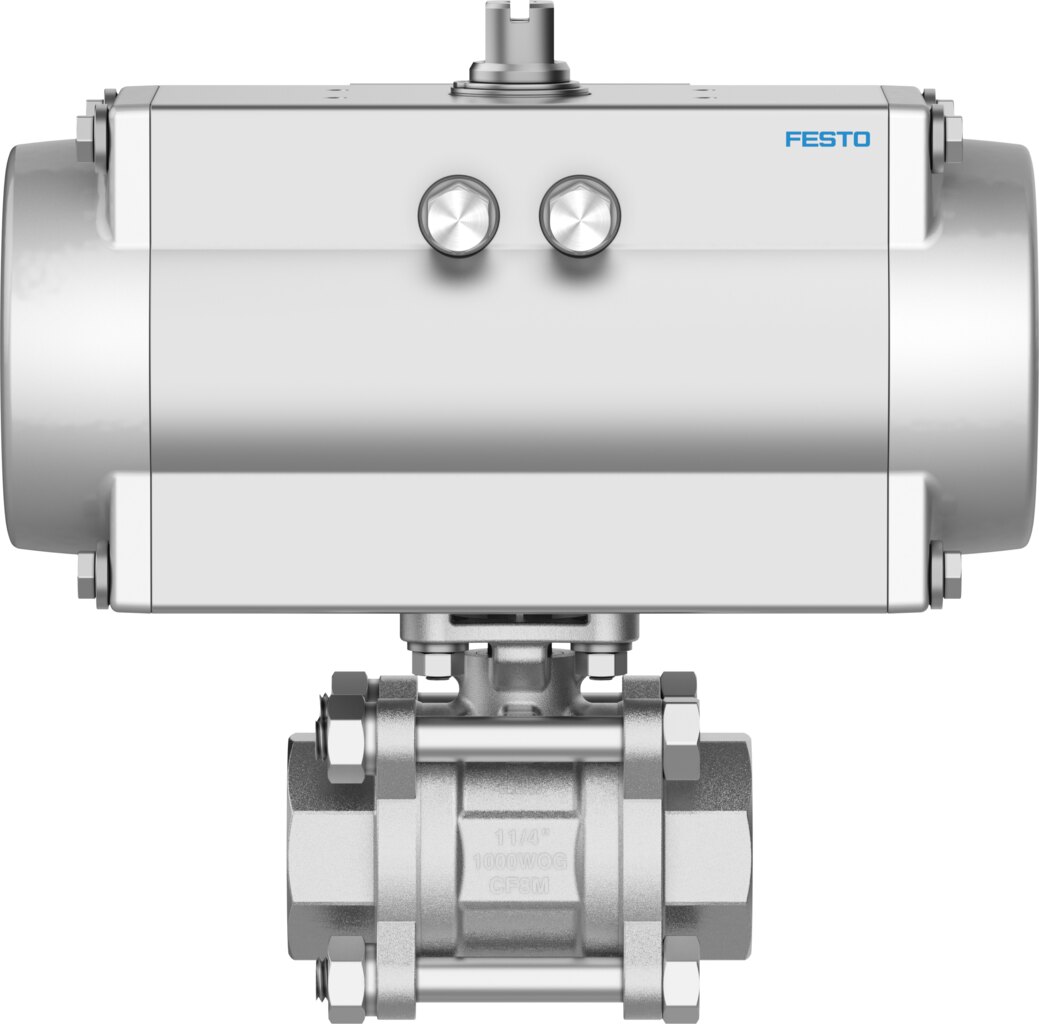

Ball valve unit with quarter turn actuator stainless steel 1 NPT DN 25 PN 63 VZBE-A-1-T-63-T-2-F0405-V15V15-PB60 - Festo 8191910
Automated shut-off in DN 25 lines: the ball valve unit VZBE-A-1-T-63-T-2-F0405-V15V15-PB60 combines a PN 63 ball valve with a pneumatic quarter turn actuator. Connection 1 NPT, housing in cast stainless steel, Kv 94 m³/h. Actuator for operating pressure 5.5 to 8 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For automated shut-off in DN 25 lines, the ball valve unit VZBE-A-1-T-63-T-2-F0405-V15V15-PB60 combines a PN 63 ball valve with a pneumatic quarter turn actuator. Flow rate Kv 94 m³/h.
Key advantages
- Flow rate Kv 94 m³/h at nominal size DN 25
- Valve rated for nominal pressure PN 63
- Actuator interface F0405 to ISO 5211
- Housing and ball in cast stainless steel 1.4408
- Media temperature -10 to 200 °C
- Quarter turn actuator for operating pressure 5.5 to 8 bar
Applications
Approved media: compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water - no steam, neutral fluids, other media on request. Mounting position is freely selectable. The VZBE type 8191910 is approved for ATEX zones 1, 2, 21 and 22.
Technical data
| Feature | Value |
|---|---|
| Type | VZBE-A-1-T-63-T-2-F0405-V15V15-PB60 |
| Festo part number | 8191910 |
| Design | Quarter turn actuator |
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Connection Process valve | 1 NPT |
| Switching position indicator | Slot direction = flow direction |
| Flange hole pattern | F0405 |
| Nominal size DN | 25 |
| Valve function | 2/2 |
| Flow direction | Reversible |
| Operating pressure | 5.5 to 8 bar |
| Nominal pressure PN | 63 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 15 Nm |
| Based on standard | ISO 5211 |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Media temperature | -10 to 200 °C |
| Flow rate Kv | 94 m³/h |
| Max. surface temperature assembly | +105°C...+280°C, T4...T2 |
| explosion group assembly | IIC, IIIC |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | Cast stainless steel |
| Material number housing | 1.4408 |
| Material seat seal | PTFE |
| Material seals | Fluoro rubber, PTFE |
| Material ball | Cast stainless steel |
| Material number ball | 1.4408 |
| Material shaft | High-alloy stainless steel |
| Product weight | 4170 g |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Explosion ambient temperature | -10°C <= Ta <= +80°C |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Weight | 5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZBE-A-1-T-63-T-2-F0405-V15V15-PB60 |
| EAN | 4052568715717 |
| Zolltarifnummer | 84818081 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel 1.4408 |
| Thread | NPT 1 |
| Nominal size DN [mm] | 25 |
| Nominal pressure PN [bar] | 63 |
| Seal material | FKM, PTFE |
| Housing material | Stainless steel 1.4408 |
| Function | 2/2 |
| Actuation type | pneumatic |
| Medientemperatur [°C] | -10 bis 200 |
| Norm | ISO 5211 |
| Series | VZBE |
