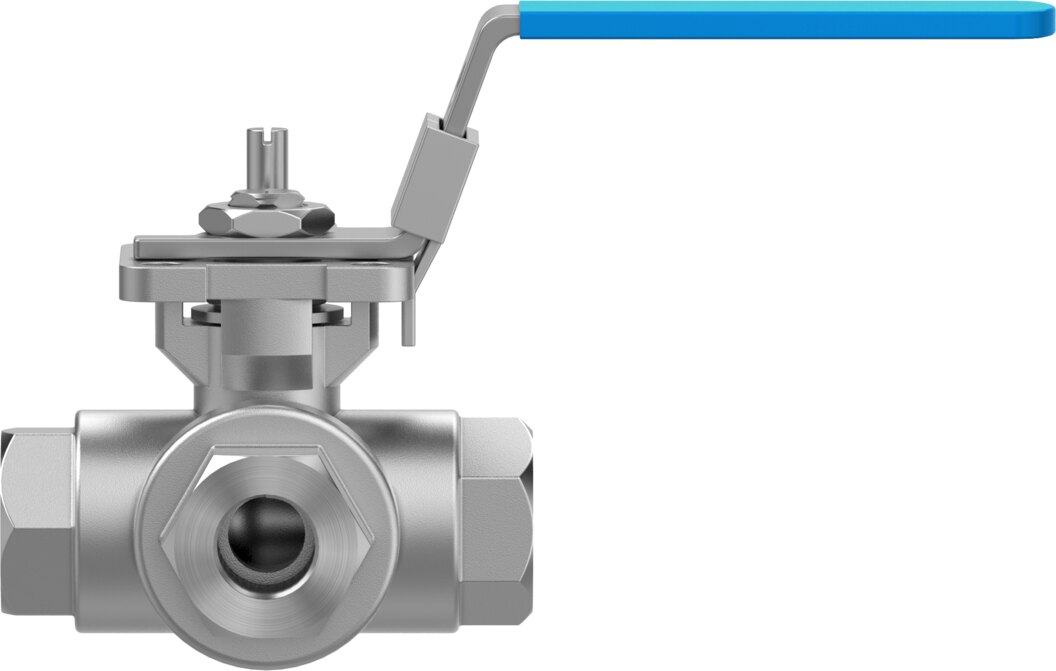

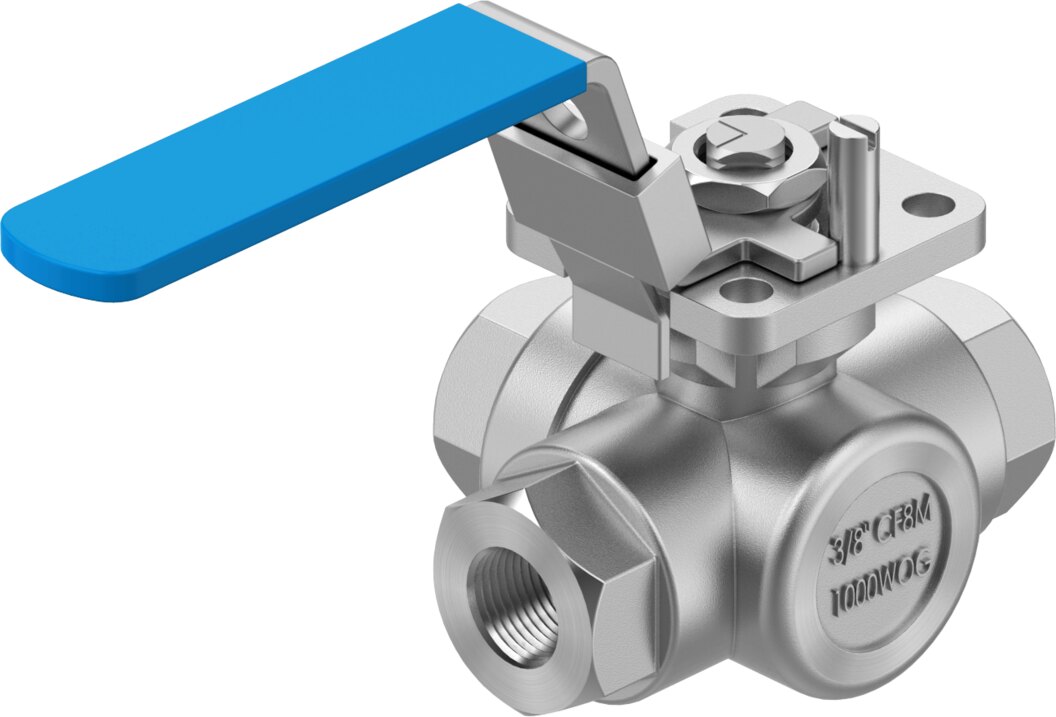

3-way ball valve L-port stainless steel 3/8 NPT DN 10 PN 63 VZBE-3/8-T-63-F-3L-F04-M-V15V15 - Festo 8096944

Festo ✓ Original product Brand new

The 3-way ball valve with L-bore VZBE-3/8-T-63-F-3L-F04-M-V15V15 for DN 10 lines is rated for nominal pressure PN 63 and comes with connection 3/8 NPT. It accepts a quarter turn actuator via the F04 flange pattern to ISO 5211, flow rate is Kv 1.2 m³/h in the L path. Media from -20 to 200 °C.

Net
€129.46
excl. VAT
Item FES-8096944
Manufacturer no. VZBE-3/8-T-63-F-3L-F04-M-V15V15
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For process lines DN 10 up to PN 63, the 3-way ball valve with L-bore VZBE-3/8-T-63-F-3L-F04-M-V15V15 provides shut-off with 3/8 NPT connection and ISO 5211 flange. Sizing value: Kv 1.2 m³/h in the L path.

Benefits

  • Kv value 1.2 m³/h in the L path
  • Valve rated for nominal pressure PN 63
  • Breakaway torque 9.6 Nm at nominal pressure as basis for actuator sizing
  • Media from -20 to 200 °C
  • Mounting flange F04 to ISO 5211 for direct actuator mounting
  • Housing and ball in cast stainless steel 1.4408

Applications

Festo lists the following media for VZBE-3/8-T-63-F-3L-F04-M-V15V15: vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Installation is possible in any position. For potentially explosive areas in zones 1, 2, 21 and 22 (ATEX). For automation, size the quarter turn actuator according to the breakaway torque.

Technical data

FeatureValue
TypeVZBE-3/8-T-63-F-3L-F04-M-V15V15
Festo part number8096944
DesignL-bore
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valve3/8 NPT
Switching position indicatorSlot direction = flow direction
Flange hole patternF04
Inside diameter11 mm
Nominal size DN10
Valve function3/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN9.6 Nm
Based on standardISO 5211
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20 to 200 °C
Flow rate Kv L hole1.2 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408
Material seat sealPTFE
Material sealsPTFE
Material ballCast stainless steel
Material number ball1.4408
Material shaftHigh-alloy stainless steel
Material number shaft1.4401
Product weight700 g
ApprovalCRN
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
Weight0.65 kg
ManufacturerFesto
Hersteller-NrVZBE-3/8-T-63-F-3L-F04-M-V15V15
EAN4052568453466
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
ThreadNPT 3/8
Nominal size DN [mm]10
Nominal pressure PN [bar]63
Seal materialPTFE
Housing materialStainless steel 1.4408
Function3/2
Actuation typeMechanical
Medientemperatur [°C]-20 bis 200
NormISO 5211
SeriesVZBE
