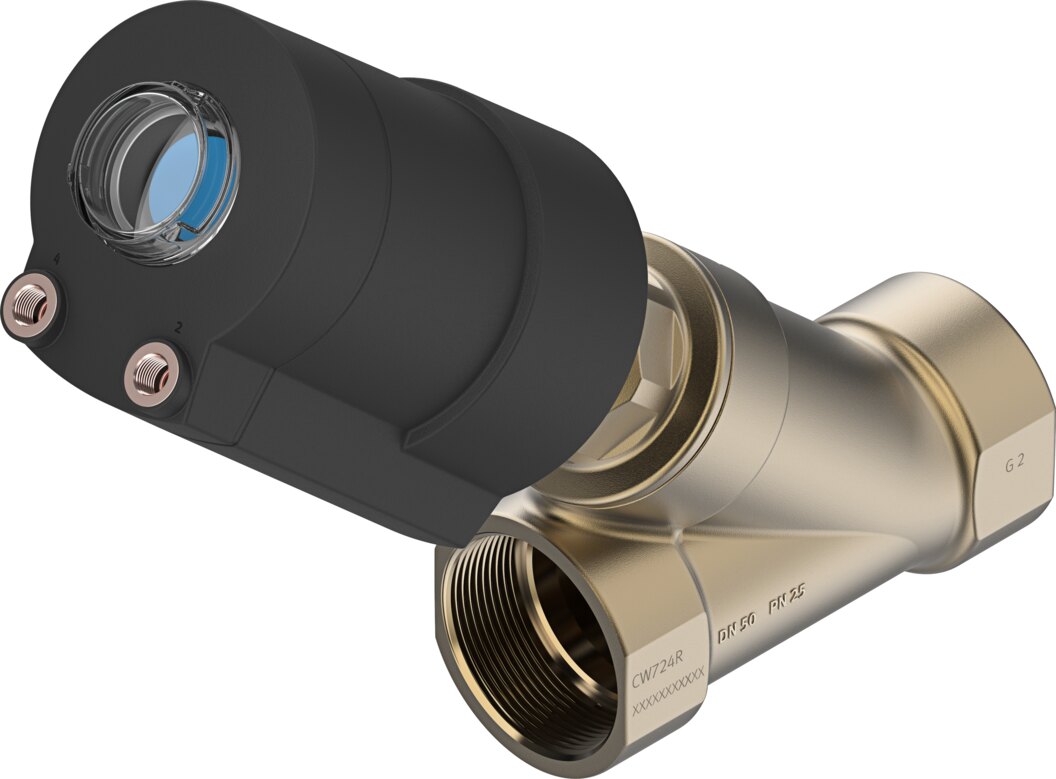

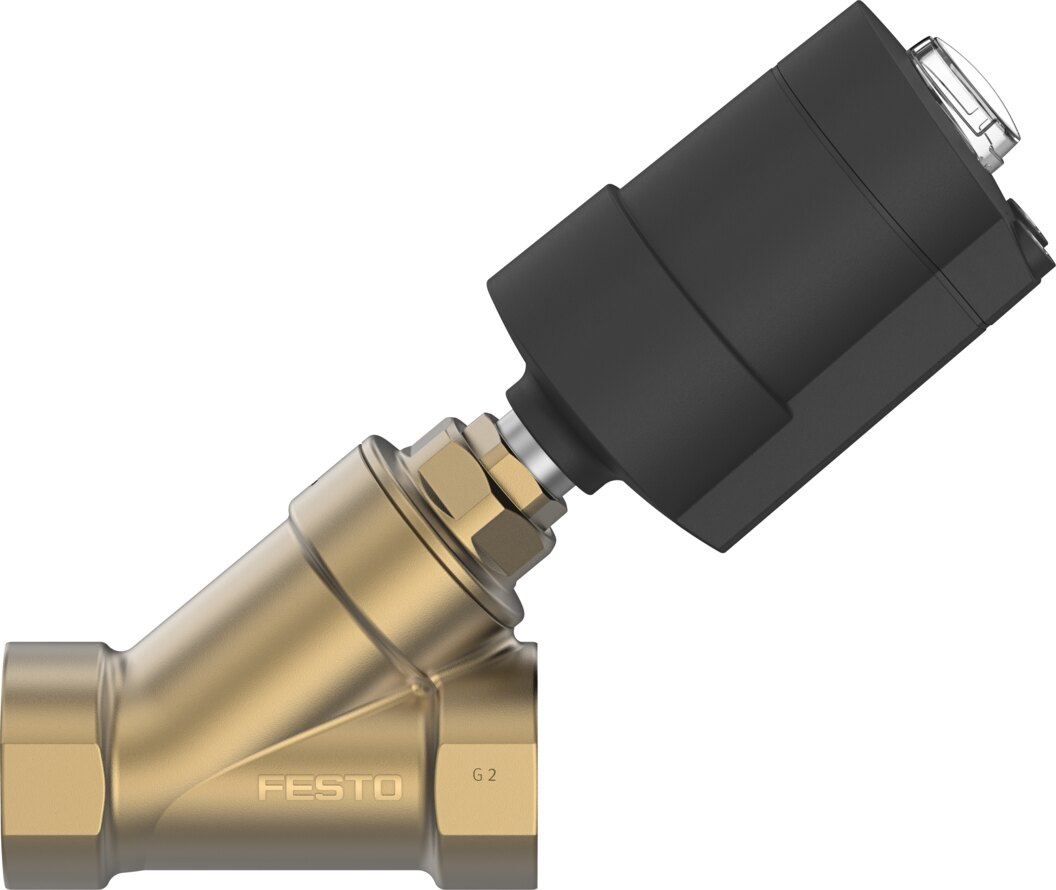

Angle seat valve G2 brass 2/2 NC up to 5.6 bar VZXA-B-TS6-50-M2-B1T-5.6-K-75-20-PM - Festo 8111597

Festo ✓ Original product Brand new

The angle seat valve VZXA-B-TS6-50-M2-B1T-5.6-K-75-20-PM with piston drive opens and closes lines with G2 connection. Medium pressure 0 to 5.6 bar, Kv 38.8 m³/h, media from -10 to 180 °C. Control function: closed via spring force, N/C.

Net
€509.99
excl. VAT
Item FES-8111597
Manufacturer no. VZXA-B-TS6-50-M2-B1T-5.6-K-75-20-PM
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With the angle seat valve VZXA-B-TS6-50-M2-B1T-5.6-K-75-20-PM, lines with G2 connection are opened and closed pneumatically, medium pressure up to 5.6 bar. The Kv value is 38.8 m³/h.

Benefits

  • Medium pressure 0 to 5.6 bar
  • Flow rate Kv 38.8 m³/h
  • Media from -10 to 180 °C
  • Housing in brass CW724R
  • Degree of protection IP65, IP67
  • Actuator size 75 mm with 20 mm stroke

Applications

Festo lists the following media for VZXA-B-TS6-50-M2-B1T-5.6-K-75-20-PM: vapour, mineral oil-based hydraulic fluid, inert gases, mineral oil, water, filtered compressed air, grade of filtration 200 µm, neutral fluids. Mounting position is freely selectable.

Technical data

FeatureValue
TypeVZXA-B-TS6-50-M2-B1T-5.6-K-75-20-PM
Festo part number8111597
DesignPoppet valve with piston drive
Type of actuationPneumatic
Mounting positionAny
Type of mountingInline installation
Line connectionThreaded coupling G2 to DIN ISO 228
Valve function2/2
Flow directionNon-reversible
Medium pressure0 to 5.6 bar
Type of resetMechanical spring
Type of pilotingExternally actuated
Pneumatic connectionFemale thread G1/8
Operating pressure5 to 7 bar
MediumVapour, Mineral oil-based hydraulic fluid, Inert gases, Mineral oil, Water, Filtered compressed air, grade of filtration 200 µm, Neutral fluids
Direction of flowBelow valve seat, for gaseous and liquid media
Control of mediumOn/off operation
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Max. viscosity600 mm²/s
Media temperature-10 to 180 °C
Ambient temperature0 to 60 °C
Flow rate Kv38.8 m³/h
Outdoor applicationsWeather-protected application areas Class C1 based on IEC 60654-1
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material process valve housingBrass
Material number process valve housingCW724R
Material sealsFluoro rubber
Material spindle sealPTFE
Material seat sealPTFE
Product weight4754 g
CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
Size of drive75 mm
Stroke20 mm
Control functionClosed via spring force, N/C
Position detectionVia mechanical indicator
Material drive housingReinforced PA
Storage temperature-10 to 60 °C
Degree of protectionIP65, IP67
Material piston rodHigh-alloy stainless steel
Material coverReinforced PA
Weight6 kg
ManufacturerFesto
Hersteller-NrVZXA-B-TS6-50-M2-B1T-5.6-K-75-20-PM
EAN4052568576707
Zolltarifnummer84818073
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialBrass
ThreadG 2
Stroke [mm]20
Seal materialFPM
Housing materialBrass
Function2/2
Actuation typepneumatic
Medientemperatur [°C]-10 bis 180
SeriesVZXA
