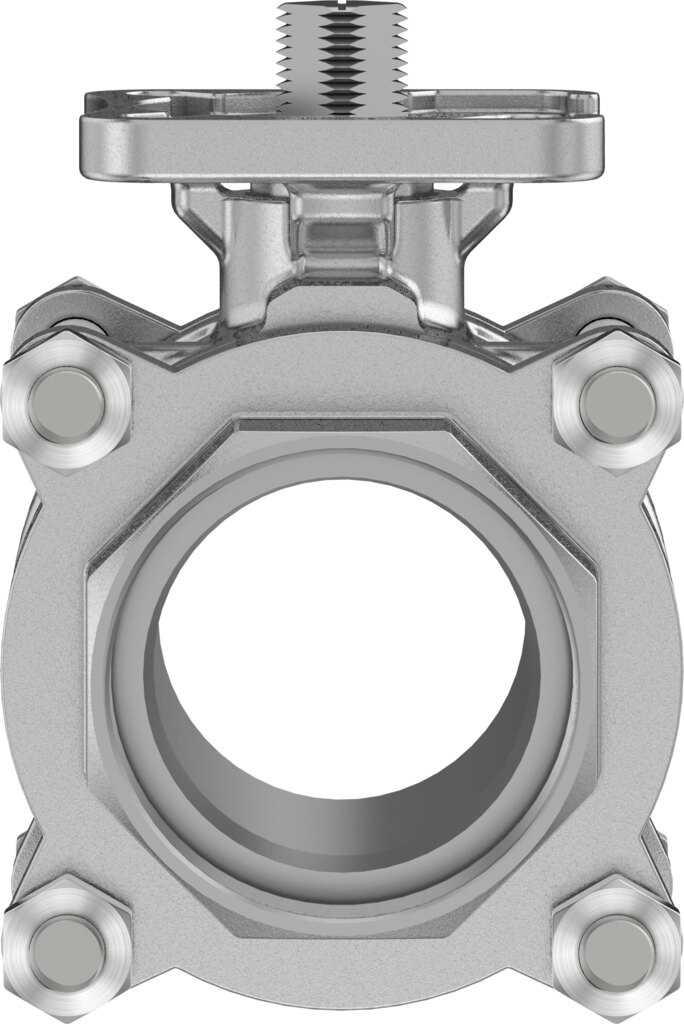

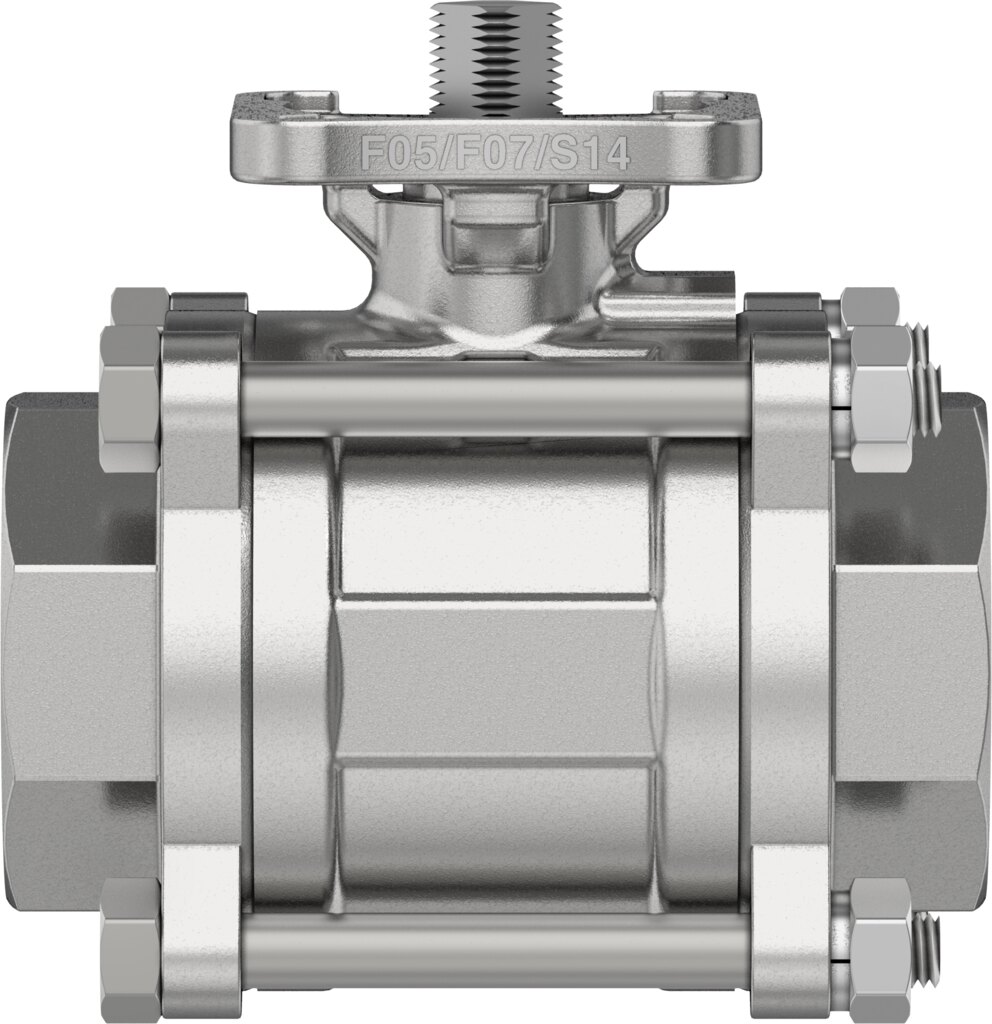

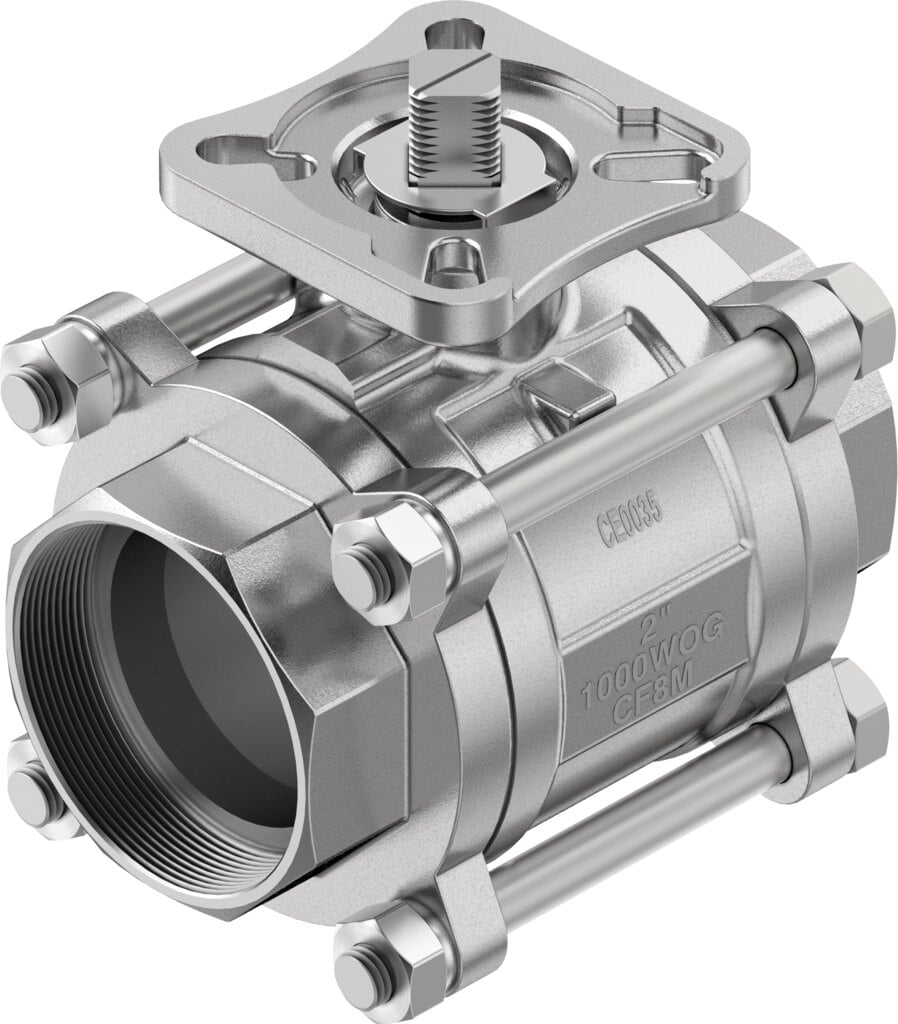

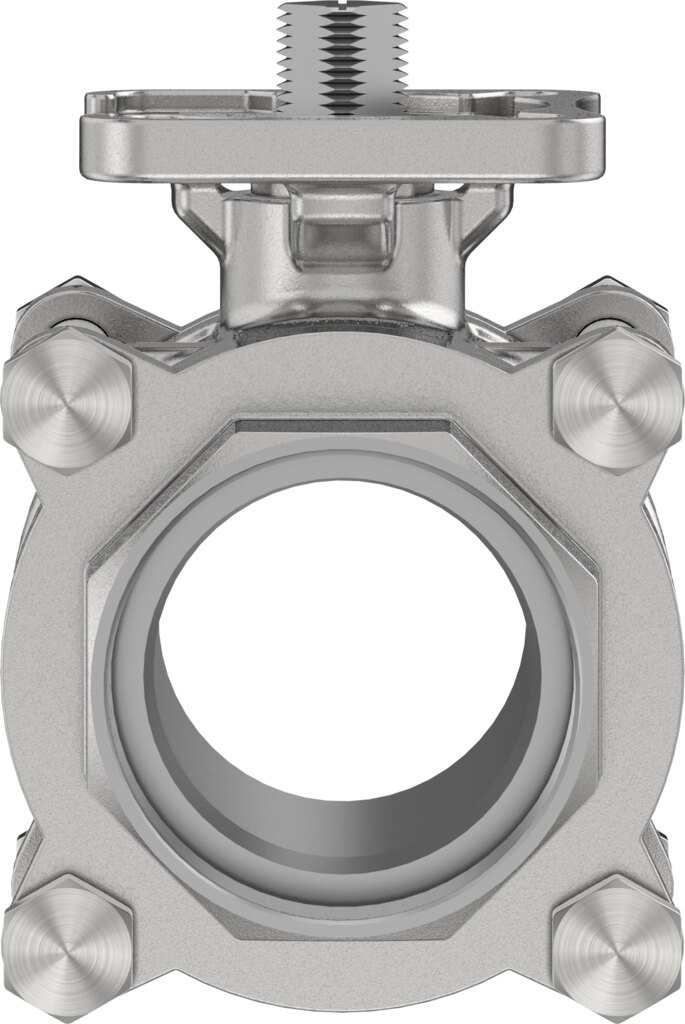

2-way ball valve stainless steel with weld ends DN 50 PN 63 VZBE-2-WA-63-T-2-F0507-V15V15 - Festo 8089045

Festo ✓ Original product Brand new

Shut-off in DN 50 lines up to PN 63: the 2-way ball valve VZBE-2-WA-63-T-2-F0507-V15V15 in cast stainless steel with connection weld-on end to ASME B16.11. It accepts a quarter turn actuator via the F05, F07 flange pattern to ISO 5211, flow rate is Kv 420 m³/h. Media from -20 to 200 °C.

Net
€248.84
excl. VAT
Item FES-8089045
Manufacturer no. VZBE-2-WA-63-T-2-F0507-V15V15
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The 2-way ball valve VZBE-2-WA-63-T-2-F0507-V15V15 shuts off pipelines of nominal size DN 50 and is rated for nominal pressure PN 63. Sizing value: Kv 420 m³/h.

Benefits

  • Flow rate Kv 420 m³/h at nominal size DN 50
  • Valve rated for nominal pressure PN 63
  • Flange pattern F05, F07 to ISO 5211, quarter turn actuator mounts directly
  • Breakaway torque 44 Nm at nominal pressure as basis for actuator sizing
  • Media temperature -20 to 200 °C
  • Housing and ball in cast stainless steel 1.4408/CF8M

Applications

Suitable for vapour, compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water, neutral fluids. Any mounting position. Can also be used in hazardous areas, zones 1, 2, 21 and 22 to ATEX. For automation, size the quarter turn actuator according to the breakaway torque.

Technical data

FeatureValue
TypeVZBE-2-WA-63-T-2-F0507-V15V15
Festo part number8089045
Design2-way ball valve
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveWeld-on end to ASME B16.11
Switching position indicatorSlot direction = flow direction
Flange hole patternF05, F07
Inside diameter50 mm
Nominal size DN50
Valve function2/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN44 Nm
Based on standardISO 5211
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20 to 200 °C
Flow rate Kv420 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408/CF8M
Material seat sealPTFE, modified
Material sealsFluoro rubber, PTFE
Material ballCast stainless steel
Material number ball1.4408/CF8M
Material shaftHigh-alloy stainless steel
Material number shaft1.4401
Product weight3500 g
ApprovalCRN
CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
ManufacturerFesto
Hersteller-NrVZBE-2-WA-63-T-2-F0507-V15V15
EAN4052568457990
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
Nominal size DN [mm]50
Nominal pressure PN [bar]63
Seal materialFKM, PTFE
Housing materialStainless steel 1.4408
Function2/2
Actuation typeMechanical
Medientemperatur [°C]-20 bis 200
NormISO 5211
SeriesVZBE
