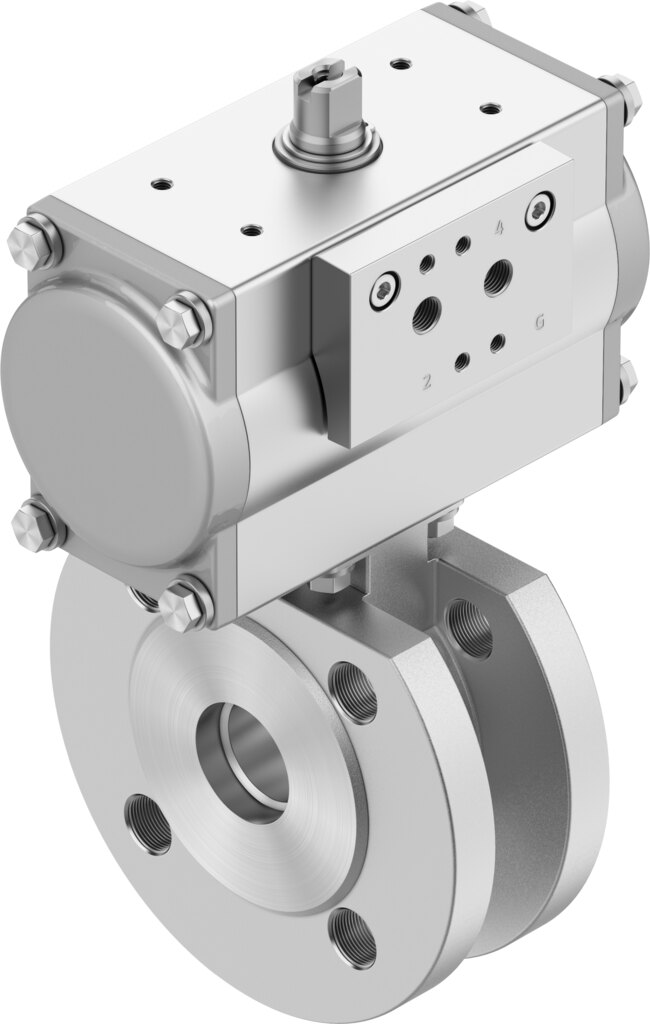

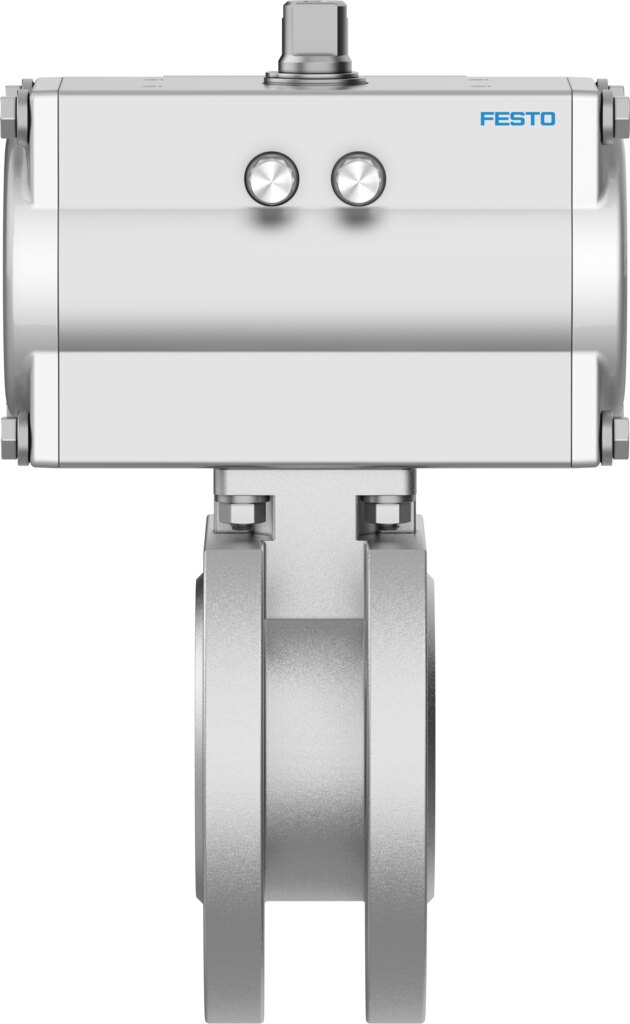

Ball valve unit with quarter turn actuator stainless steel EN 1092-1 flange DN 65 PN 16 VZBC-A-65-FF-16-22-F07-V4V4T-PA120 - Festo 8191883

Festo ✓ Original product Brand new

Ball valve unit VZBC-A-65-FF-16-22-F07-V4V4T-PA120 with pneumatic quarter turn actuator for DN 65 lines up to PN 16, mounted and ready for use. Connection flange to EN 1092-1, housing in high-alloy stainless steel, Kv 507 m³/h. Actuator for operating pressure 5.5 to 8 bar.

Net
€1,237.26
excl. VAT
Item FES-8191883
Manufacturer no. VZBC-A-65-FF-16-22-F07-V4V4T-PA120
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The ball valve unit VZBC-A-65-FF-16-22-F07-V4V4T-PA120 brings ball valve and pneumatic quarter turn actuator as a mounted unit into DN 65 lines up to PN 16. Flow rate Kv 507 m³/h.

Benefits

  • Kv value 507 m³/h in DN 65
  • Valve rated for nominal pressure PN 16
  • Quarter turn actuator for operating pressure 5.5 to 8 bar
  • Media from -10 to 200 °C
  • Actuator interface F07 to ISO 5211
  • Housing and ball in high-alloy stainless steel 1.4408

Applications

Suitable for compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water - no steam, neutral fluids, other media on request. Mounting position is freely selectable. Can also be used in hazardous areas, zones 1, 2, 21 and 22 to ATEX.

Technical data

FeatureValue
TypeVZBC-A-65-FF-16-22-F07-V4V4T-PA120
Festo part number8191883
DesignQuarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveFlange to EN 1092-1
Switching position indicatorSlot direction = flow direction
Flange hole patternF07
Nominal size DN65
Valve function2/2
Flow directionReversible
Operating pressure5.5 to 8 bar
Nominal pressure PN16
Breakaway torque at differential pressure, nominal pressure, process valve PN85 Nm
Based on standardISO 5211
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10 to 200 °C
Flow rate Kv507 m³/h
Max. surface temperature assembly+105°C...+280°C, T4...T2
explosion group assemblyIIC, IIIC
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingHigh-alloy stainless steel
Material number housing1.4408
Material seat sealPTFE
Material sealsPTFE-reinforced
Material ballHigh-alloy stainless steel
Material number ball1.4408
Material shaftHigh-alloy stainless steel
Material number shaft1.4401
Product weight15400 g
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Explosion ambient temperature-10°C <= Ta <= +80°C
Corrosion resistance class CRC1 - Low corrosion stress
ManufacturerFesto
Hersteller-NrVZBC-A-65-FF-16-22-F07-V4V4T-PA120
EAN4052568715441
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialStainless steel 1.4408
Nominal size DN [mm]65
Nominal pressure PN [bar]16
Housing materialStainless steel 1.4408
Function2/2
Actuation typepneumatic
Medientemperatur [°C]-10 bis 200
NormDIN EN 1092-1, ISO 5211
SeriesVZBC
