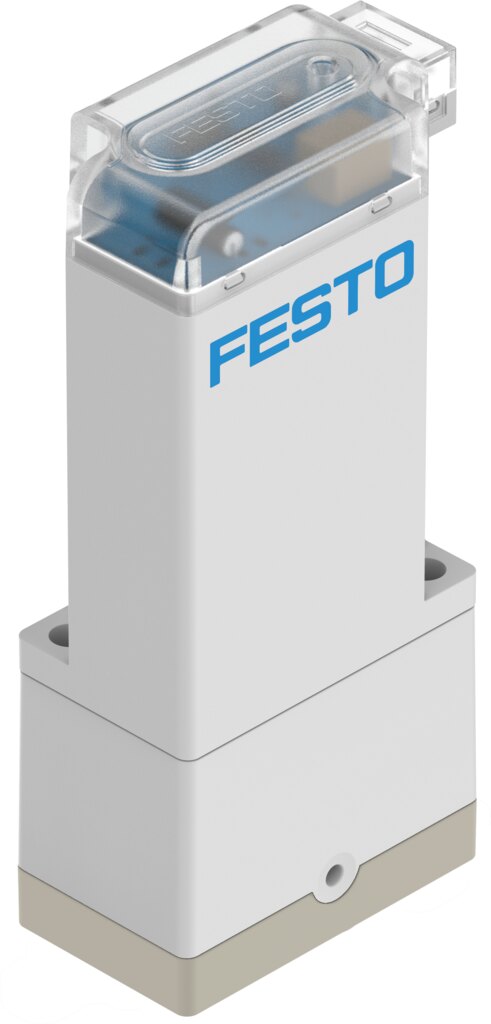

Media separated solenoid valve VYKC-F16-M22C-16-PE-H2 - Festo 8172729
Net
excl. VAT
€66.24
Item
FES-8172729
Manufacturer no.
VYKC-F16-M22C-16-PE-H2
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Design | Rocker valve with diaphragm seal |
|---|---|
| Sealing principle | Soft |
| Material in contact with the medium | PEEK |
| Suitable for use with food | See supplementary material information |
| Valve function | 2/2-way, single solenoid, closed |
| Nominal size | 1.6 mm |
| Flow direction | Reversible |
| Type of actuation | Electrical |
| Type of piloting | Direct |
| Type of reset | Mechanical spring |
| Manual override | None |
| Mounting position | Any |
| Type of mounting | With through-hole for M2.5 screw |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connector system | Plug pattern H |
| Electrical connection 1, connection pattern | 00995622 |
| Size | 16 |
| Grid dimension | 17 mm |
| Fluid connection | Flange |
| Medium | Liquid media, Gaseous media |
| Note on the medium | Observe resistance of materials that come into contact with the media, Maximum particle size 5 µm |
| Internal volume | 108 µl valve with fluid connections, 89 µl fluid chamber valve |
| Media temperature | 10 ... 50 °C |
| Media temperature for fluids | 10 ... 50 °C |
| Ambient temperature | 10 ... 50 °C |
| Storage temperature | -20 ... 70 °C |
| Medium pressure | -0.75 ... 3 bar |
| Burst pressure | 20 bar |
| Total leakage | 0.004 l/h |
| Operational voltage range DC | 12 ... 24 V |
| Note on operational voltage range DC | Holding current reduction necessary |
| Characteristic coil data | 12 - 24 V DC: low-current phase 1.4 W, high-current phase 5.5 W |
| Insulation material class | B |
| Duty cycle | 100% in conjunction with holding current reduction, Observe the notes on operating the solenoid valves. |
| Max. switching frequency | 4 Hz |
| Note on switching frequency | Dependent on the ambient temperature and installation state |
| Switch-on time for fluids | 14 ms |
| Switching time on gaseous media | 12 ms |
| Standard nominal flow rate (standardised to DIN 1343) | 53 l/min |
| Note on standard nominal flow rate | In case of a pressure drop of 1 -> 0 bar (gaseous media) |
| Flow rate Kv | 0.77 l/min |
| Note on flow rate Kv | For water as medium, Pressure difference 1 bar |
| Water flow rate at max. operating pressure | 0.08 m³/h, 1.3 l/min |
| Material housing | PEEK |
| Material membrane | EPDM |
| Material seals | EPDM |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Product weight | 50 g |
| Degree of protection | IP40 |
| Note on degree of protection | In mounted state |
| Instructions on use | For indoor use only |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Weight | 0.06 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VYKC-F16-M22C-16-PE-H2 |
| EAN | 4052568826116 |
| Zolltarifnummer | 84818087 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
