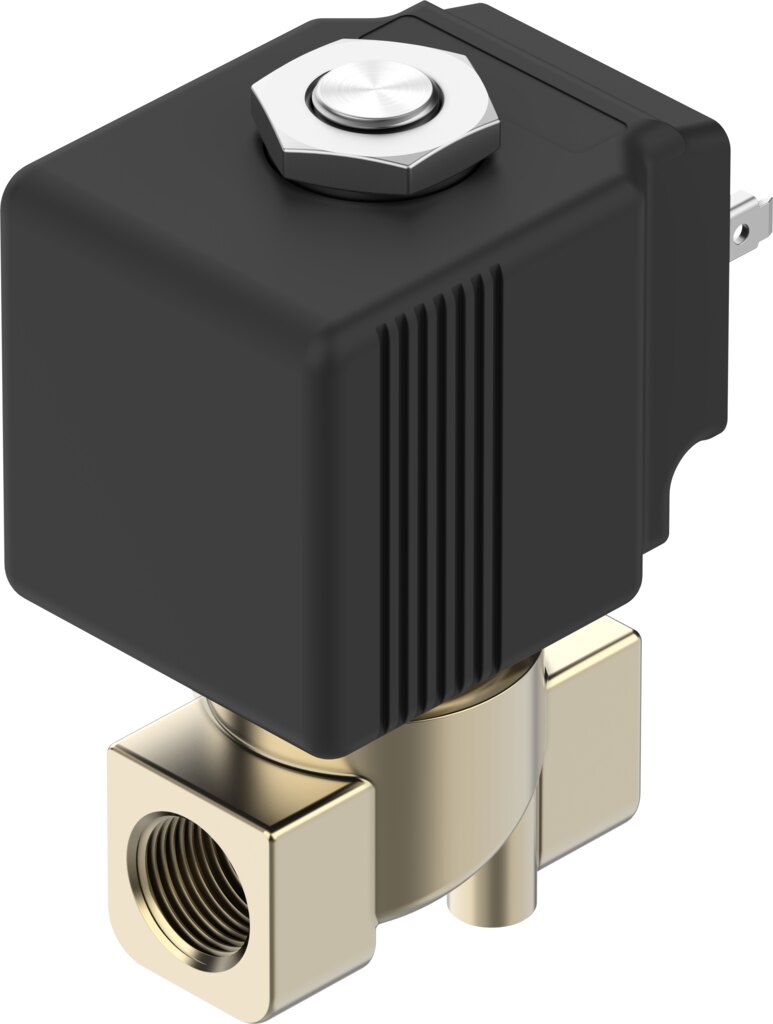

2/2-way solenoid valve G1/4 DN 5.2 mm brass 220/230 V AC VZWD-B-L-M22C-M-G14-52-V-36-3A-A1-10 - Festo 8214505
Directly actuated 2/2-way poppet valve for media up to 10 bar and 140 °C that switches from 0 bar pressure difference. G1/4 port, 5.2 mm nominal size, Kv 0.47 m³/h, 220/230 V AC coil with 100% duty cycle, brass body.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where water, mineral oil or inert gases at up to 10 bar must be shut off reliably, the Festo solenoid valve VZWD-B-L-M22C-M-G14-52-V-36-3A-A1-10 switches directly via its solenoid. It needs no pressure difference and opens even in an unpressurised system, with Kv 0.47 m³/h at 5.2 mm nominal size.
Benefits
- Fast response: switching time 8 ms on, 25 ms off
- Hot media: media temperature -10 to 140 °C, FPM seals
- Continuous duty: 100% duty cycle, 220/230 V AC coil (40 VA pick-up, 30 VA holding), insulation class H
- Proven body: brass CW617N, CRC 1 for environments with low corrosion stress
- Easy installation: inline mounting in any position, plug to EN 175301-803, IP65
Applications
The valve suits shut-off and dosing tasks with water, mineral oil, inert gases and compressed air, for example in cooling circuits, flushing processes or lubrication systems. It is installed directly in the pipe via its G1/4 port.
Technical data
| Feature | Value |
|---|---|
| Order code | VZWD-B-L-M22C-M-G14-52-V-36-3A-A1-10 |
| Part number | 8214505 |
| Design | Directly actuated poppet valve |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Process valve connection | G1/4 |
| Electrical connection | Plug, To EN 175301-803, Square design |
| Nominal size | 5.2 mm |
| Valve function | 2/2-way, single solenoid, closed |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request |
| Pressure difference | 0 bar |
| Characteristic coil data | 220/230 V AC, 50/60 Hz, pick-up power 40 VA, holding power 30 VA |
| Insulation material class | H |
| Permissible voltage fluctuations | +15% / -10% |
| Duty cycle | 100% |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Medium pressure | 0 to 10 bar |
| Maximum viscosity | 25 mm²/s |
| Media temperature | -10 to 140 °C |
| Ambient temperature | -10 to 80 °C |
| Flow rate Kv | 0.47 m³/h |
| Switching time on | 8 ms |
| Switching time off | 25 ms |
| Note on materials | RoHS compliant |
| Material housing | Brass |
| Material number housing | CW617N |
| Material seals | Fluoro rubber |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Weight | 0.38 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZWD-B-L-M22C-M-G14-52-V-36-3A-A1-10 |
| EAN | 4052568788339 |
| Zolltarifnummer | 84818079 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Brass |
| Thread | G 1/4 |
| Nominal size DN [mm] | 5,2 |
| Seal material | FPM |
| Function | 2/2 closed monostable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -10 bis 140 |
| Norm | DIN EN 175301-803 |
| Operating voltage | 230 V AC |
| Series | VZWD |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/4 |
| Protection rating | IP65 |
| Temperature (max.) | 80 |
