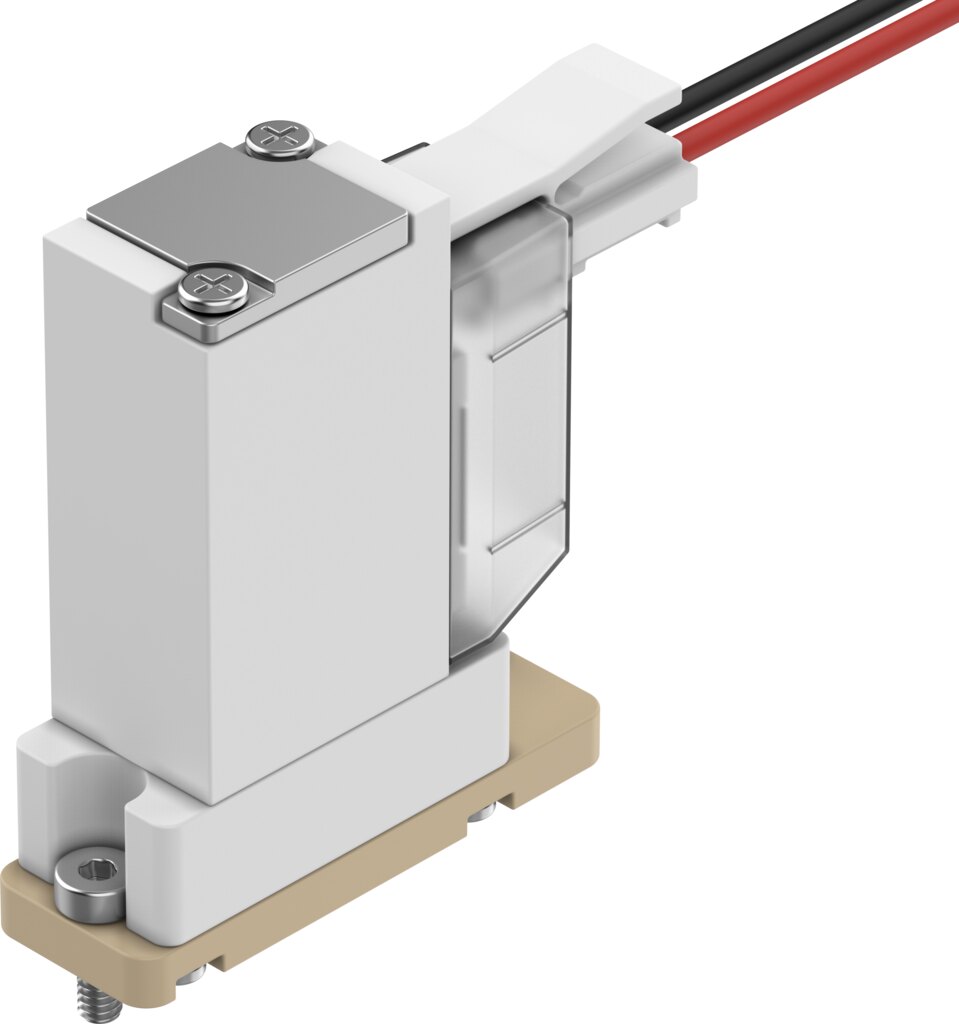

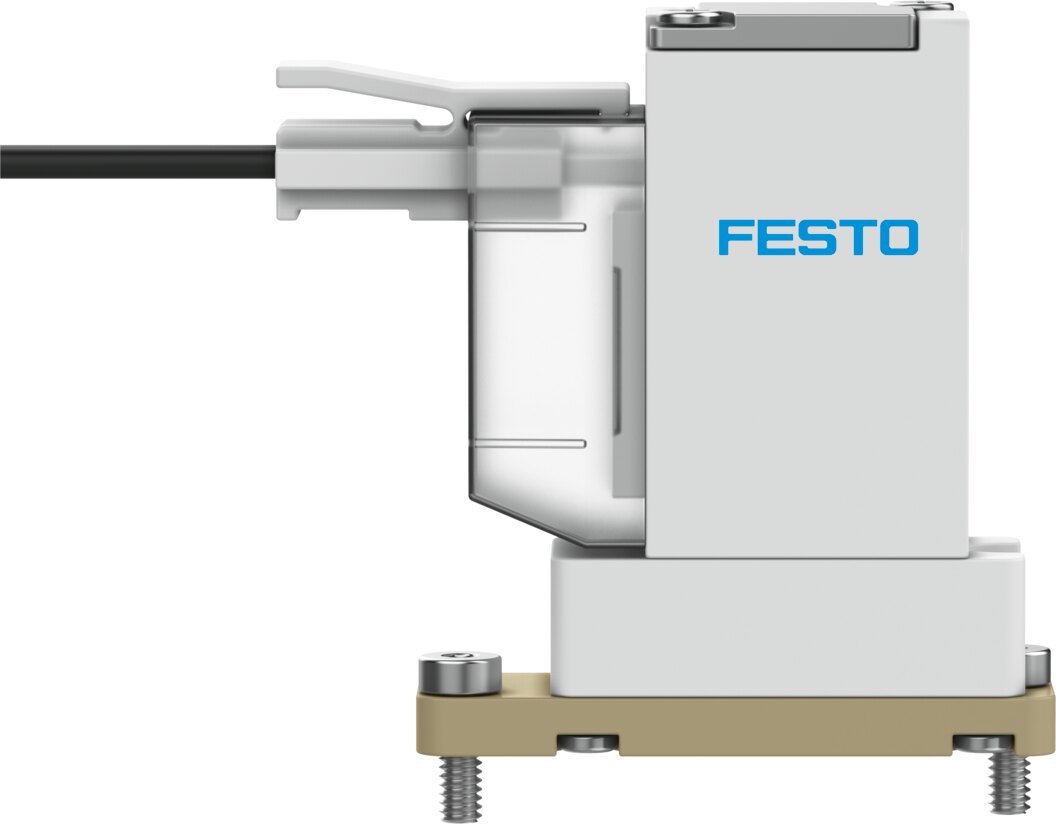

Mediengetrenntes Magnetventil VYKB-F10-M22C-16-PV-5HPA - Festo 8122802

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Media separated solenoid valve VYKB-F10-M22C-16-PV-5HPA - Festo 8122802

Name: Media separated solenoid valve VYKB-F10-M22C-16-PV-5HPA - Festo 8122802
Brand: Festo
SKU: FES-8122802
Price: 132.42 EUR
Availability: InStock

Festo ✓ Original product Brand new

Net

€132.42

excl. VAT

Item FES-8122802

Manufacturer no. VYKB-F10-M22C-16-PV-5HPA

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Technical data

Design	Rocker valve with diaphragm seal
Sealing principle	Soft
Material in contact with the medium	Fluoro rubber, PEEK
Valve function	2/2-way, single solenoid, closed
Nominal size	1.6 mm
Flow direction	Non-reversible
Type of actuation	Electrical
Type of piloting	Direct
Type of reset	Mechanical spring
Manual override	None
Mounting position	Any
Type of mounting	Via through-hole for M2 screw
Electrical connection 1, connection type	Cable with plug
Electrical connection 1, connector system	Plug pattern HP
Size	10
Fluid connection	Flange
Medium	Liquid media, Gaseous media
Note on the medium	Observe resistance of materials that come into contact with the media, Maximum particle size 5 µm
Internal volume	35 µl
Media temperature	0 ... 50 °C
Media temperature for fluids	0 ... 50 °C
Ambient temperature	0 ... 50 °C
Storage temperature	-20 ... 70 °C
Medium pressure	-0.75 ... 1 bar
Overload pressure	3 bar
Operational voltage range DC	12 V
Permissible voltage fluctuations	-5 % / +10 %
Characteristic coil data	12 V DC: low-current phase 1 W, high-current phase 3.7 W
Duty cycle	100%
Max. switching frequency	2 Hz
Note on switching frequency	Dependent on the ambient temperature and installation state
Switching time on	15 ms
Switching time on gaseous media	15 ms
Switching time off	15 ms
Switching time off gaseous media	15 ms
Standard nominal flow rate (standardised to DIN 1343)	18 l/min
Note on standard nominal flow rate	In case of a pressure drop of 1 -> 0 bar (gaseous media)
Flow rate Kv	0.57 l/min
Note on flow rate Kv	For water as medium, Pressure difference 1 bar
Material housing	PEEK
Material membrane	Fluoro rubber
Material seals	Fluoro rubber
Note on materials	RoHS compliant
LABS (PWIS) conformity	VDMA24364 zone III
Product weight	18 g
Degree of protection	IP40
Corrosion resistance class CRC	0 - No corrosion stress
CE mark (see declaration of conformity)	To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)	To UK RoHS instructions
Weight	0.027 kg
Manufacturer	Festo
Hersteller-Nr	VYKB-F10-M22C-16-PV-5HPA
EAN	4052568556679
Zolltarifnummer	84818087
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
