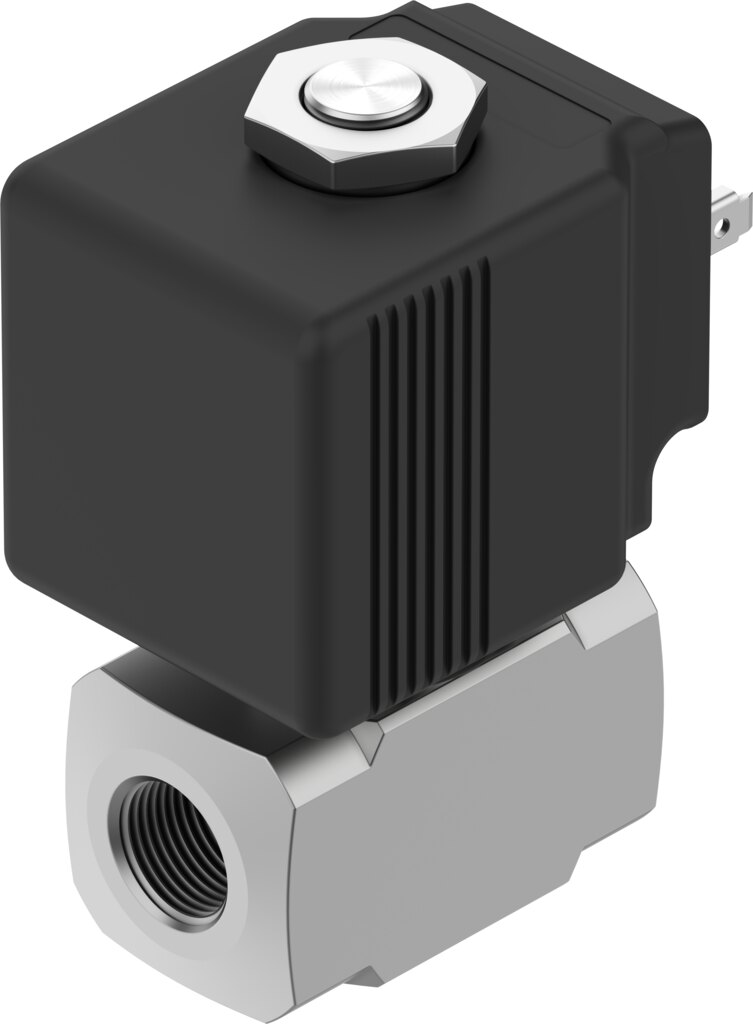

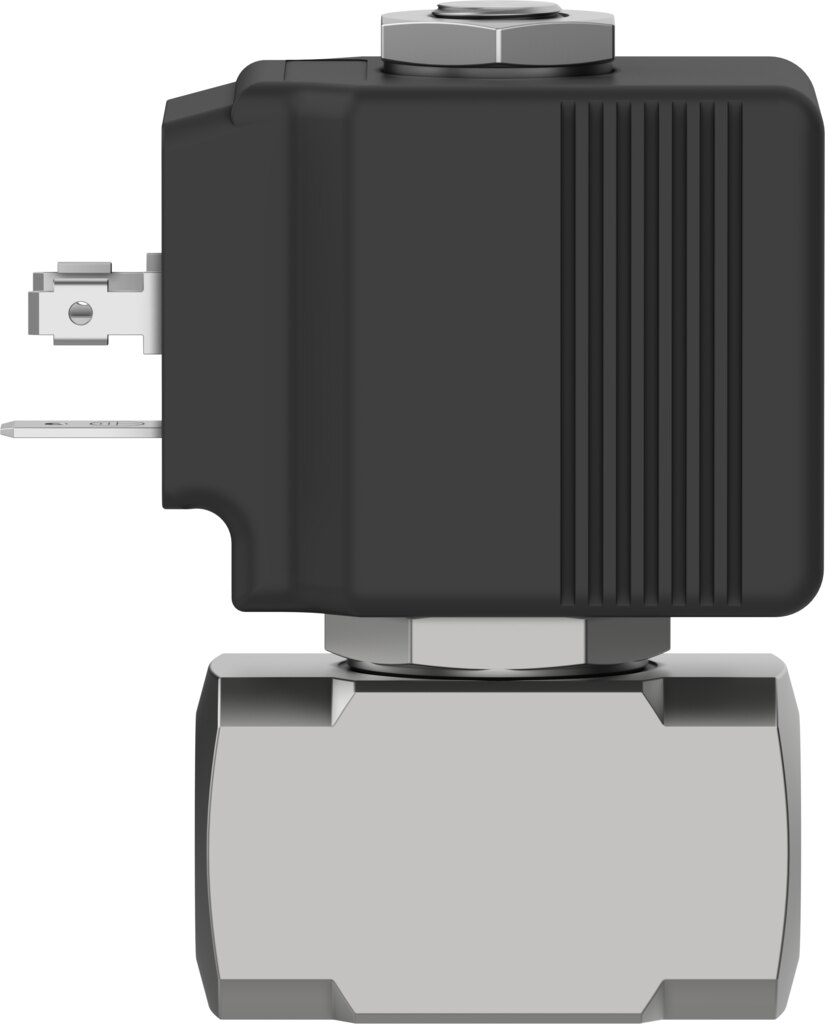

2/2-way solenoid valve G1/4 DN 2.5 mm stainless steel 24 V DC VZWD-B-L-M22C-M-G14-25-V-36-1-A1-33-R1 - Festo 8214644
For shut-off and dosing of water, oil or gas up to 33 bar: the VZWD opens directly, without minimum pressure, in 8 ms. G1/4 port, DN 2.5 mm, Kv 0.15 m³/h, 24 V DC coil, stainless steel body, FPM seals.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo solenoid valve VZWD-B-L-M22C-M-G14-25-V-36-1-A1-33-R1 is a directly actuated 2/2-way poppet valve, normally closed, for media up to 33 bar. Because the solenoid opens the seat directly, it works from 0 bar pressure difference, with a flow rate of Kv 0.15 m³/h.
Benefits
- Switches from 0 bar: directly actuated, no minimum pressure difference, medium pressure 0 to 33 bar
- Fast response: switching time 8 ms on, 25 ms off
- Continuous duty: 100% duty cycle, 24 V DC coil (27 W), insulation class H
- Corrosion resistant: stainless steel 1.4305 body, corrosion resistance class CRC 3
- Easy installation: inline mounting in any position, plug to EN 175301-803, IP65
Applications
The valve suits shut-off and dosing tasks with water, mineral oil, inert gases and compressed air, for example in cooling circuits, flushing processes or lubrication systems. It is installed directly in the pipe via its G1/4 port. The stainless steel body 1.4305 is recommended for humid or aggressive environments, for example on G1/4 lines in wet areas.
Technical data
| Feature | Value |
|---|---|
| Order code | VZWD-B-L-M22C-M-G14-25-V-36-1-A1-33-R1 |
| Part number | 8214644 |
| Design | Directly actuated poppet valve |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Inline installation |
| Process valve connection | G1/4 |
| Electrical connection | Plug, To EN 175301-803, Square design |
| Nominal size | 2.5 mm |
| Valve function | 2/2-way, single solenoid, closed |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:4:4], inert gases, mineral oil, water, neutral fluids, other media on request |
| Pressure difference | 0 bar |
| Characteristic coil data | 24 V DC, 27 W |
| Insulation material class | H |
| Permissible voltage fluctuations | ±10% |
| Duty cycle | 100% |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Medium pressure | 0 to 33 bar |
| Maximum viscosity | 25 mm²/s |
| Media temperature | -10 to 140 °C |
| Ambient temperature | -10 to 80 °C |
| Flow rate Kv | 0.15 m³/h |
| Switching time on | 8 ms |
| Switching time off | 25 ms |
| Note on materials | RoHS compliant |
| Material housing | High-alloy stainless steel |
| Material number housing | 1.4305 |
| Material seals | Fluoro rubber |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 3 - High corrosion stress |
| Weight | 0.46 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VZWD-B-L-M22C-M-G14-25-V-36-1-A1-33-R1 |
| EAN | 4052568789725 |
| Zolltarifnummer | 84818073 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Thread | G 1/4 |
| Nominal size DN [mm] | 2,5 |
| Seal material | FPM |
| Function | 2/2 closed monostable |
| Actuation type | Electrical |
| Medientemperatur [°C] | -10 bis 140 |
| Norm | DIN EN 175301-803 |
| Operating voltage | 24 V DC |
| Series | VZWD |
| Betriebsdruck max [bar] | 33 |
| Pneumatic connection | G1/4 |
| Protection rating | IP65 |
| Temperature (max.) | 80 |
