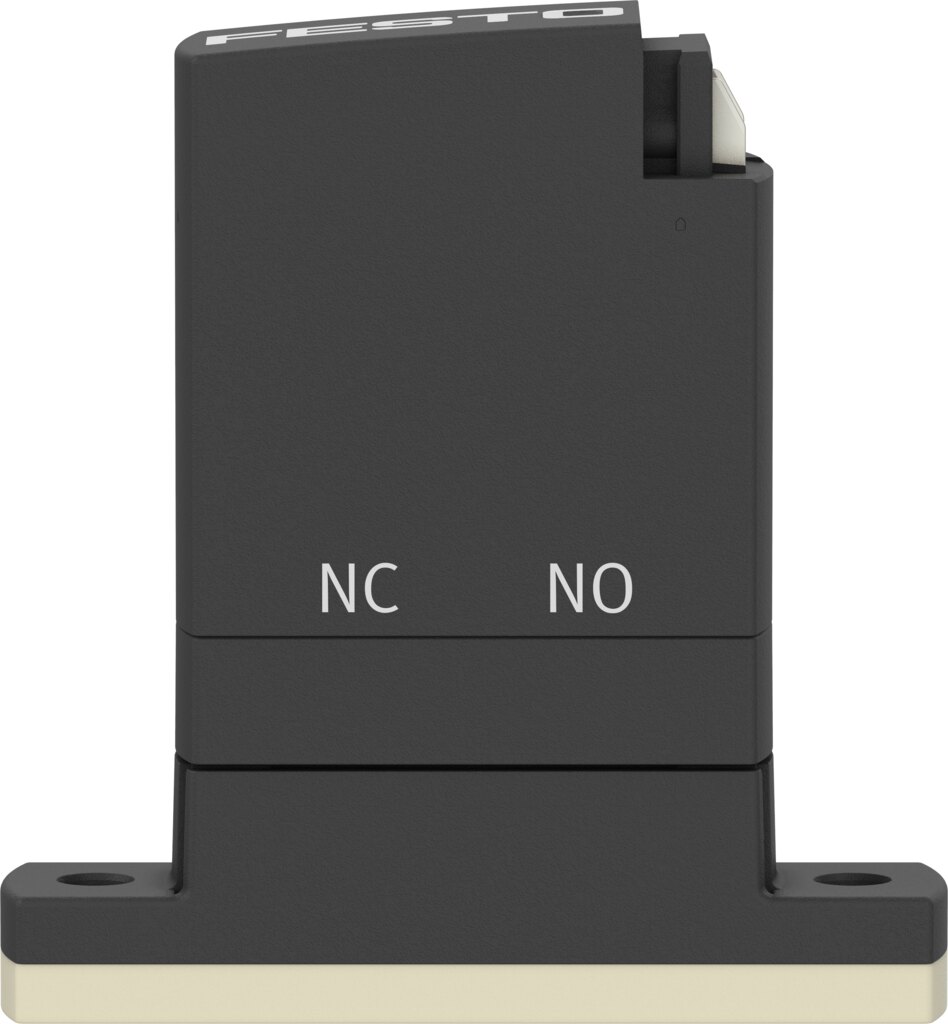

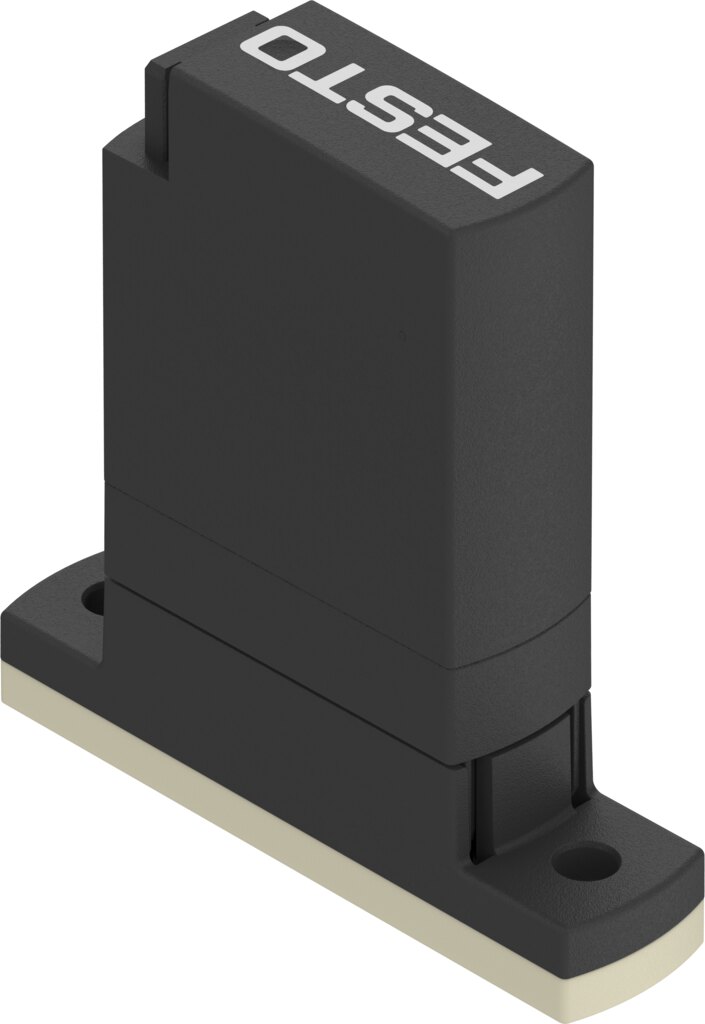

Media separated solenoid valve 2/2-way NO nominal size 1.2 mm FFPM diaphragm 12 to 26 V DC VYKA-F7-M22U-12-PF-5YQ7 - Festo 8170089

Festo ✓ Original product Brand new

Switches liquid and gaseous media normally open, nominal size 1.2 mm, flange fluid connection. Medium pressure -0.5 to 2 bar, vacuum included, Kv 0.018 m³/h. Coil 12 to 26 V DC with 2.2 W high-current and 0.06 W low-current phase.

Net
€134.14
excl. VAT
Item FES-8170089
Manufacturer no. VYKA-F7-M22U-12-PF-5YQ7
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Inside the VYKA-F7-M22U-12-PF-5YQ7, a rocker mechanism works behind a diaphragm made of FFPM. This keeps the actuator separate from the medium, the valve function is 2/2-way, normally open, the nominal size 1.2 mm.

Benefits

  • Wetted materials FFPM, PEEK, diaphragm and seals in FFPM
  • Medium pressure -0.5 to 2 bar, burst pressure 23 bar
  • Flow rate Kv 0.018 m³/h, standard nominal flow rate 10 l/min
  • Internal volume 18 µl fluid chamber valve, 24 µl valve with fluid connections
  • Size 7 with grid dimension 7.5 mm, flange connection

Applications

Typical for dosing and analysis technology with media from 15 to 50 °C. Check the resistance of the wetted materials. Mounting via through-hole for M2 screw, degree of protection IP40.

Technical data

FeatureValue
TypeVYKA-F7-M22U-12-PF-5YQ7
Festo part number8170089
DesignRocker valve with diaphragm seal
Sealing principleSoft
Material in contact with the mediumFFPM, PEEK
Valve function2/2-way, single solenoid, open
Nominal size1.2 mm
Flow directionReversible with restrictions
Type of actuationElectrical
Type of pilotingDirect
Type of resetMechanical spring
Manual overrideNone
Mounting positionAny
Type of mountingVia through-hole for M2 screw
Electrical connection 1, connection typeSocket
Electrical connection 1, connector systemPlug pattern Q7
Electrical connection 1, number of connections/cores2
Electrical connection 1, connection pattern00997312
Size7
Grid dimension7.5 mm
Fluid connectionFlange
MediumLiquid media, gaseous media
Note on the mediumObserve resistance of materials that come into contact with the media, maximum particle size 5 µm
Internal volume18 µl fluid chamber valve, 24 µl valve with fluid connections
Media temperature for fluids15 to 50 °C
Medium temperature gaseous media15 to 50 °C
Ambient temperature15 to 50 °C
Storage temperature-20 to 70 °C
Medium pressure-0.5 to 2 bar
Note on the medium pressureIN: -0.25 - 2 bar / -0.025 - 0.2 MPa / -3.625 - 29 psi, OUT: -0.5 - 0.5 bar / -0.05 - 0.05 MPa / -7.25 - 7.25 psi
Pressure difference2 bar
Burst pressure23 bar
Operational voltage range DC12 to 26 V
Note on operational voltage range DCWith electrical sub-base VAVE-K1-…
Permissible voltage fluctuations± 10%
Electrical power consumption3.5 W
Information on power consumptionLow-current phase 0.3 W, high-current phase 3.5 W for 60 ms, in combination with VAVE-K1-…
Characteristic coil data12 - 26 V DC: low-current phase 0.06 W, high-current phase 2.2 W
Insulation material classB
Duty cycle100% in conjunction with holding current reduction, observe the notes on operating the solenoid valves
Maximum switching frequency6 Hz
Switch-off time for fluids9 ms
Switching time off gaseous media9 ms
Note on switching timeSwitching time depends on medium, temperature, medium pressure and individual operating conditions, the switching behaviour of the FFPM can be slower at temperatures below room temperature
Standard nominal flow rate (standardised to DIN 1343)10 l/min
Note on standard nominal flow rateIn case of a pressure drop of 1 - 0 bar (gaseous media)
Flow rate Kv0.018 m³/h
Note on flow rate KvFor water as medium, pressure difference 1 bar
Water flow rate at max operating pressure0.40 l/min
Material housingReinforced PA, PEEK, reinforced PPA
Material membraneFFPM
Material sealsFFPM
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP40
Note on degree of protectionIn mounted state
Instructions on useFor indoor use only
Corrosion resistance class CRC0 - no corrosion stress
Weight (price list)0.018 kg
Weight0.018 kg
ManufacturerFesto
Hersteller-NrVYKA-F7-M22U-12-PF-5YQ7
EAN4052568962319
Zolltarifnummer84818087
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Nominal size DN [mm]1,2
Seal materialFFKM
Function2/2 open monostable
Flow rate [l/min]10
Actuation typeElectrical
Medientemperatur [°C]15 bis 50
Betriebsdruck max [bar]2
Pneumatic connectionFlange
Protection ratingIP40
