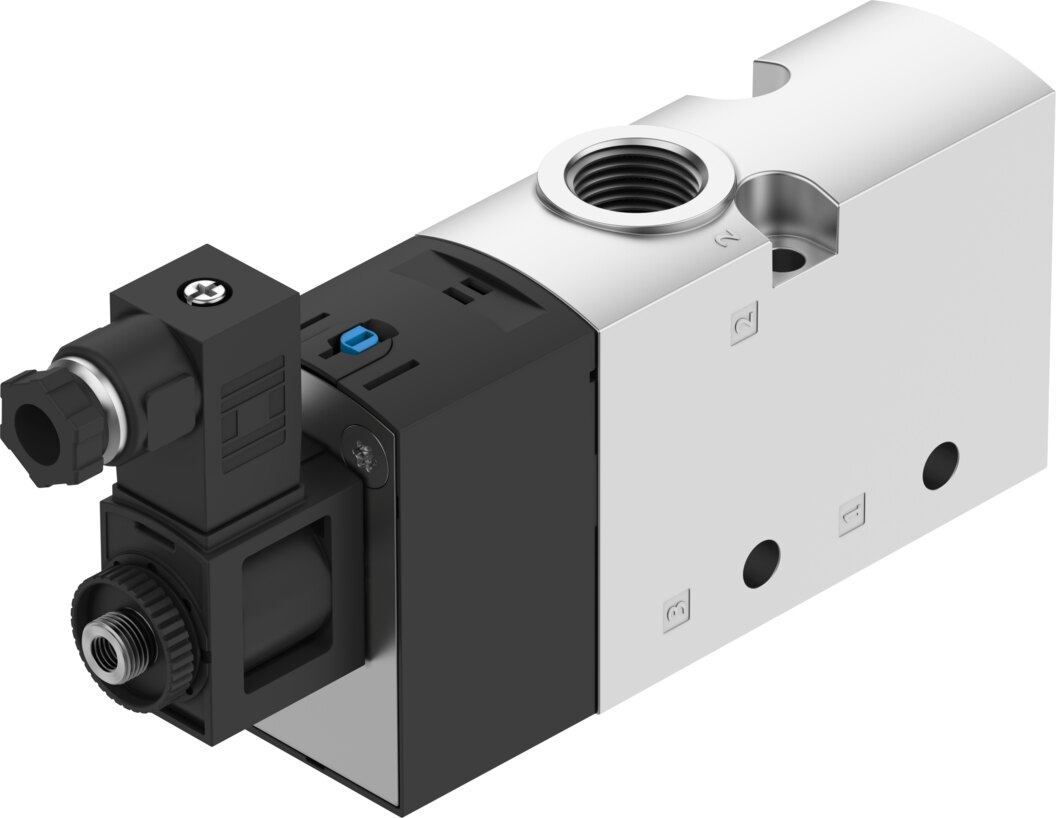

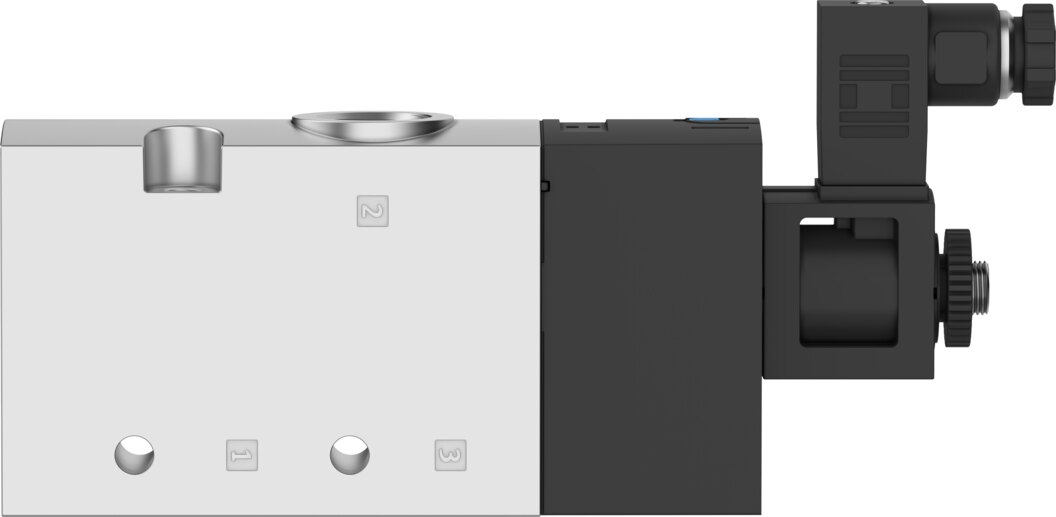

Solenoid valve 3/2-way normally closed G3/8 VUVS-L30-M32C-MD-G38-F8-1C1+G - Festo 8059146

Festo ✓ Original product Brand new

The VUVS-L30-M32C-MD-G38-F8-1C1+G switches compressed air as a 3/2-way valve (normally closed, monostable) and reaches 2300 l/min standard nominal flow rate. Designed for 2.5 to 10 bar operating pressure, G3/8 ports and 31 mm valve size. Switching times 16 ms on and 58 ms off.

Net
€82.07
excl. VAT
Item FES-8059146
Manufacturer no. VUVS-L30-M32C-MD-G38-F8-1C1+G
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVS-L30-M32C-MD-G38-F8-1C1+G works as a 3/2-way valve (normally closed, monostable) and reaches 2300 l/min standard nominal flow rate at 2.5 to 10 bar operating pressure. Further ratings: G3/8 ports, 31 mm valve size and 24 V DC coil.

Key benefits

  • Flow: 2300 l/min standard nominal flow rate at 31 mm valve size
  • Pressure range: 2.5 to 10 bar
  • Switching times: 16 ms on, 58 ms off
  • Coil: 3.3 W at 24 V DC, 100% duty cycle
  • Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
  • Environment: IP65 protection, corrosion resistance class 2

Applications

Typical tasks for the VUVS-L30-M32C-MD-G38-F8-1C1+G are single-acting cylinders, blow air and piloting larger valves. Electrical connection of the VUVS-L30-M32C-MD-G38-F8-1C1+G: type C, to EN 175301-803. Mounting of the VUVS-L30-M32C-MD-G38-F8-1C1+G: on manifold rail, with through-hole. The VUVS-L30-M32C-MD-G38-F8-1C1+G operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUVS-L30-M32C-MD-G38-F8-1C1+G
Festo part number8059146
Valve function3/2-way, normally closed, monostable
Type of actuationelectrical
Valve size31 mm
Standard nominal flow rate2300 l/min
pneumatic working portG3/8
Operating voltage24 V DC
Operating pressure2.5 to 10 bar
Designpiston spool
Reset methodmechanical spring
Approvalc UL us - Recognized (OL)
Degree of protectionIP65, with plug socket, to IEC 60529
Nominal size9.4 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting, non-detenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlappositive overlap
b value0.3
C value9.9 l/sbar
Switching time off58 ms
Switching time on16 ms
Duty cycle100%
Max. positive test pulse with 0 signal2000 µs
Max. negative test pulse with 1 signal3600 µs
Coil characteristics24 V DC: 3.3 W
Permissible voltage fluctuations± 10 %
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14class 6 according to ISO 14644-1
Media temperature-10 to 60 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 60 °C
Product weight415 g
Electrical connectiontype C, to EN 175301-803
Type of mountingon manifold rail, with through-hole
Breather connectionnot ducted
Pilot exhaust port 82M5
Pneumatic connection, port 1G3/8
Pneumatic connection, port 2G3/8
Pneumatic connection, port 3G3/8
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingdie-cast aluminium, painted
Material piston slidewrought aluminium alloy
Material screwsnickel-plated steel
Weight (shipping)0.43 kg
Weight0.43 kg
ManufacturerFesto
Hersteller-NrVUVS-L30-M32C-MD-G38-F8-1C1+G
EAN4052568435547
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/8
Nominal size DN [mm]9,4
Seal materialHNBR, NBR
MediumCompressed air
Function3/2 closed monostable
Flow rate [l/min]2300
Actuation typeElectrical
NormDIN EN 175301-803
SeriesVUVS
Betriebsdruck max [bar]10
Pneumatic connectionG3/8
Protection ratingIP65
Temperaturbereich-10-60 °C
Temperature (max.)60
