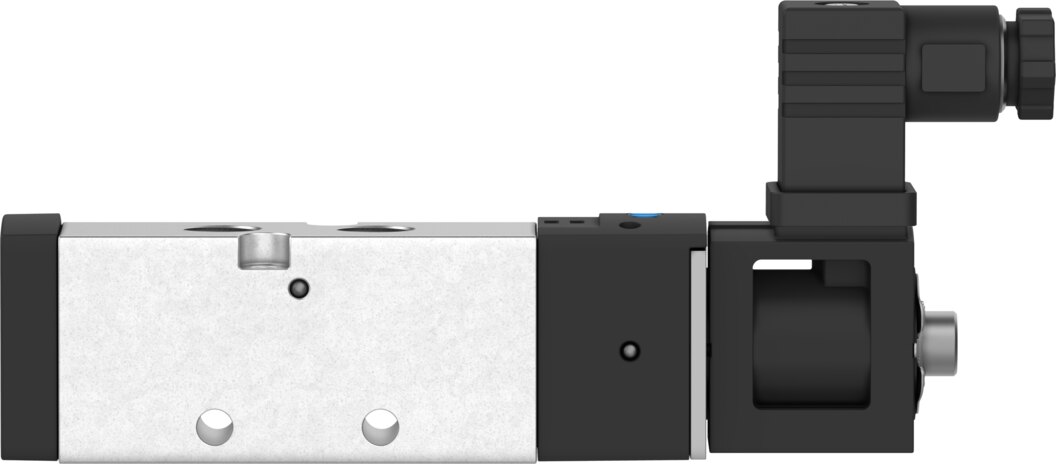

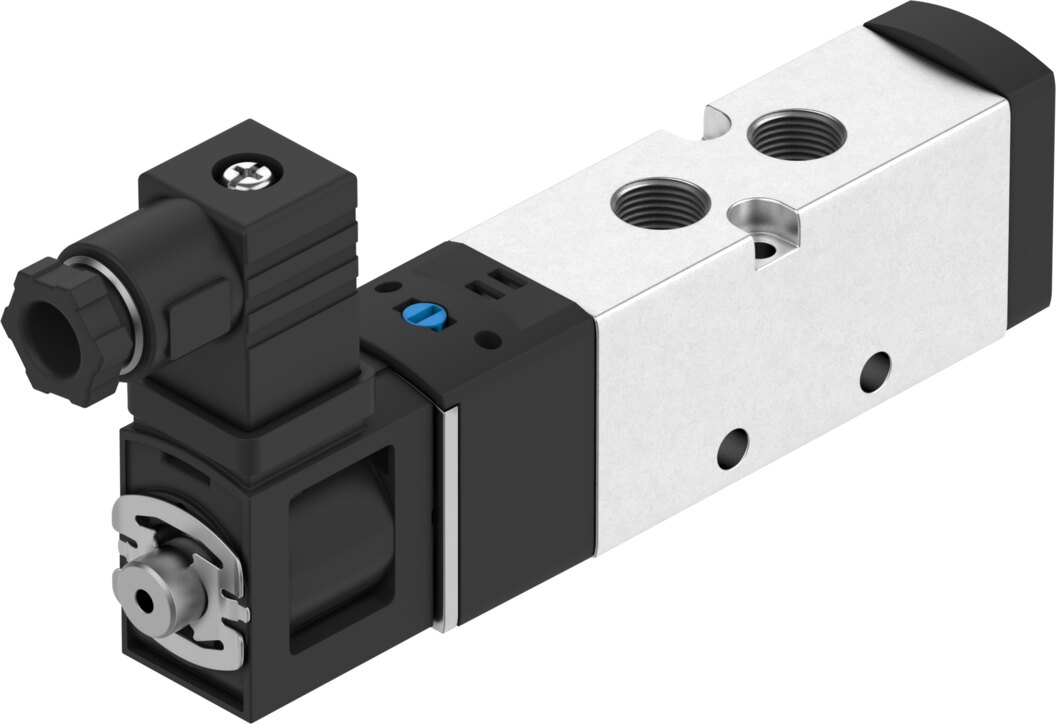

Solenoid valve 5/2-way monostable G1/8 VUVS-LK20-M52-AD-G18-1C1+GL-S - Festo 8060300
As a 5/2-way valve (monostable), the Festo solenoid valve VUVS-LK20-M52-AD-G18-1C1+GL-S delivers 550 l/min standard nominal flow rate. Designed for 1.5 to 8 bar operating pressure, G1/8 ports and 21 mm valve size. Switching times 17 ms on and 22 ms off.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
As a 5/2-way valve (monostable), the Festo solenoid valve VUVS-LK20-M52-AD-G18-1C1+GL-S delivers 550 l/min standard nominal flow rate at 1.5 to 8 bar operating pressure. Designed with G1/8 ports, 21 mm valve size and 24 V DC coil.
Benefits at a glance
- Flow: 550 l/min standard nominal flow rate at 21 mm valve size
- Pressure range: 1.5 to 8 bar
- Switching times: 17 ms on, 22 ms off
- Coil: 2.4 W at 24 V DC, 100% duty cycle
- Environment: IP65 protection, corrosion resistance class 1
- Temperature: -5 to 50 °C ambient
Applications
The VUVS-LK20-M52-AD-G18-1C1+GL-S controls double-acting cylinders and rotary actuators in machines and systems. Electrical connection of the VUVS-LK20-M52-AD-G18-1C1+GL-S: screw terminal. The VUVS-LK20-M52-AD-G18-1C1+GL-S is mounted on manifold rail, with through-hole. The VUVS-LK20-M52-AD-G18-1C1+GL-S operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | VUVS-LK20-M52-AD-G18-1C1+GL-S |
|---|---|
| Festo part number | 8060300 |

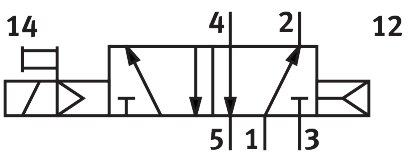

| Valve function | 5/2-way, monostable |
| Type of actuation | electrical |
| Valve size | 21 mm |
| Standard nominal flow rate | 550 l/min |
| pneumatic working port | G1/8 |
| Operating voltage | 24 V DC |
| Operating pressure | 1.5 to 8 bar |
| Design | piston spool |
| Reset method | pneumatic spring |
| Degree of protection | IP65, with plug socket, to IEC 60529 |
| Nominal size | 5.2 mm |
| Exhaust-air function | can be throttled |
| Sealing principle | soft |
| Mounting position | any |
| Manual override | detenting, non-detenting |
| Type of piloting | piloted |
| Pilot air supply | internal |
| Flow direction | non-reversible |
| Overlap | positive overlap |
| b value | 0.38 |
| C value | 2.66 l/sbar |
| Switching time off | 22 ms |
| Switching time on | 17 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2700 µs |
| Max. negative test pulse with 1 signal | 1100 µs |
| Coil characteristics | 24 V DC: 2.4 W |
| Permissible voltage fluctuations | ± 10 % |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-Zone III |
| Media temperature | -5 to 50 °C |
| Pilot medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 to 50 °C |
| Product weight | 158 g |
| Electrical connection | screw terminal |
| Cable diameter | 4 to 6 mm |
| Nominal cross section conductor | 0.34 to 0.5 mm² |
| Type of mounting | on manifold rail, with through-hole |
| Breather connection | not ducted |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Pneumatic connection, port 5 | G1/8 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | wrought aluminium alloy |
| Material piston slide | wrought aluminium alloy |
| Weight (shipping) | 0.155 kg |
| Weight | 0.155 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVS-LK20-M52-AD-G18-1C1+GL-S |
| EAN | 4052568435608 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Nominal size DN [mm] | 5,2 |
| Seal material | HNBR, NBR |
| Medium | Compressed air |
| Function | 5/2 monostable |
| Flow rate [l/min] | 550 |
| Actuation type | Electrical |
| Series | VUVS |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | G1/8 |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
