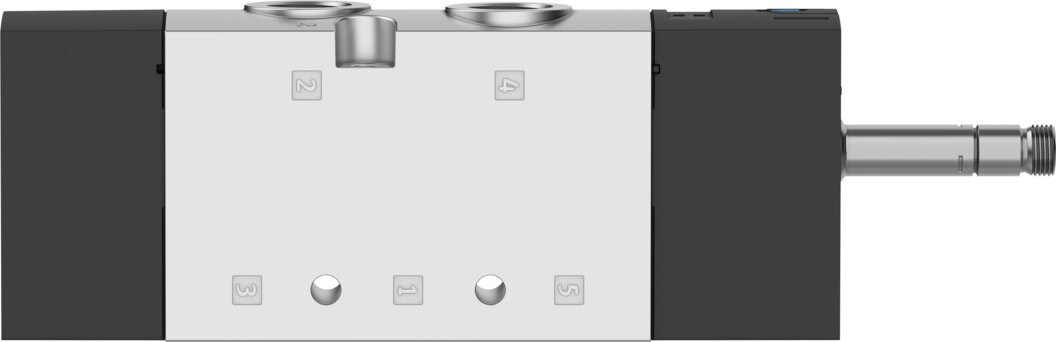

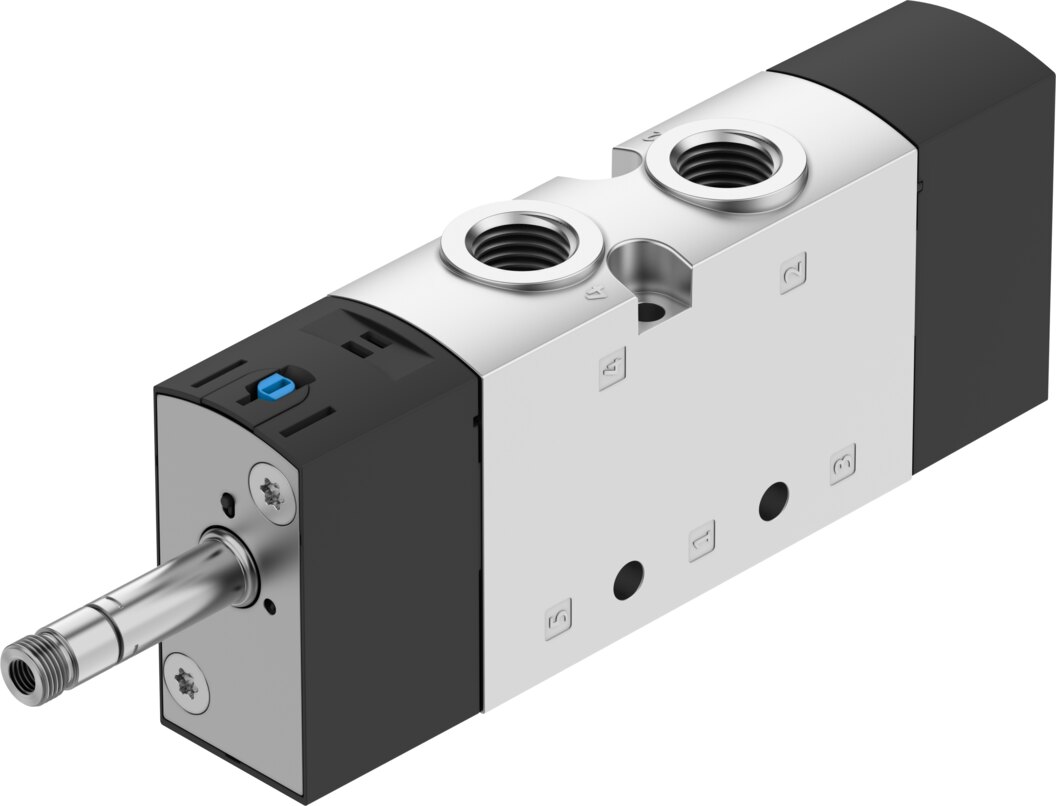

Solenoid valve 5/2-way monostable 1/4 NPT VUVS-L25-M52-MD-N14-F8 - Festo 575554
Solenoid valve VUVS-L25-M52-MD-N14-F8 as a 5/2-way valve (monostable) with 1300 l/min standard nominal flow rate for controlling pneumatic actuators. Ratings: 2.5 to 10 bar operating pressure, 1/4 NPT ports and 26.5 mm valve size. Switching times 12 ms on and 47 ms off.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
As a 5/2-way valve (monostable), the Festo solenoid valve VUVS-L25-M52-MD-N14-F8 delivers 1300 l/min standard nominal flow rate at 2.5 to 10 bar operating pressure. It also offers 1/4 NPT ports and 26.5 mm valve size.
Benefits at a glance
- Flow: 1300 l/min standard nominal flow rate at 26.5 mm valve size
- Pressure range: 2.5 to 10 bar
- Switching times: 12 ms on, 47 ms off
- Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
- Environment: corrosion resistance class 2
- Temperature: -10 to 60 °C ambient
Applications
The VUVS-L25-M52-MD-N14-F8 controls double-acting cylinders and rotary actuators in machines and systems. Mounting of the VUVS-L25-M52-MD-N14-F8: on manifold rail, with through-hole. The VUVS-L25-M52-MD-N14-F8 operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).
Technical data
| Type | VUVS-L25-M52-MD-N14-F8 |
|---|---|
| Festo part number | 575554 |

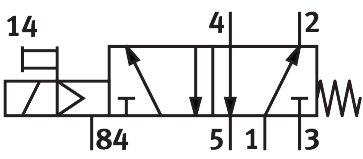

| Valve function | 5/2-way, monostable |
| Type of actuation | electrical |
| Valve size | 26.5 mm |
| Standard nominal flow rate | 1300 l/min |
| pneumatic working port | 1/4 NPT |
| Operating pressure | 2.5 to 10 bar |
| Design | piston spool |
| Reset method | mechanical spring |
| Approval | c UL us - Recognized (OL) |
| Maritime classification | see certificate |
| Certificate issuing authority | DNVGL-TAA000011J |
| Nominal size | 6.9 mm |
| Exhaust-air function | can be throttled |
| Sealing principle | soft |
| Mounting position | any |
| Manual override | detenting, non-detenting |
| Type of piloting | piloted |
| Pilot air supply | internal |
| Flow direction | non-reversible |
| Overlap | positive overlap |
| b value | 0.4 |
| C value | 5.3 l/sbar |
| Switching time off | 47 ms |
| Switching time on | 12 ms |
| Max. positive test pulse with 0 signal | 2000 µs |
| Max. negative test pulse with 1 signal | 3600 µs |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | class 6 according to ISO 14644-1 |
| Media temperature | -10 to 60 °C |
| Pilot medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 to 60 °C |
| Product weight | 311 g |
| Type of mounting | on manifold rail, with through-hole |
| Breather connection | not ducted |
| Pilot exhaust port 82 | 10-32 UNF-2B |
| Pilot exhaust port 84 | 10-32 UNF-2B |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | 1/4 NPT |
| Pneumatic connection, port 3 | 1/4 NPT |
| Pneumatic connection, port 4 | 1/4 NPT |
| Pneumatic connection, port 5 | 1/4 NPT |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | die-cast aluminium, painted |
| Material piston slide | wrought aluminium alloy |
| Material screws | galvanised steel |
| Weight (shipping) | 0.34 kg |
| Weight | 0.34 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVS-L25-M52-MD-N14-F8 |
| EAN | 4052568377830 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | NPT 1/4 |
| Nominal size DN [mm] | 6,9 |
| Seal material | HNBR, NBR |
| Medium | Compressed air |
| Function | 5/2 monostable |
| Flow rate [l/min] | 1300 |
| Actuation type | Electrical |
| Series | VUVS |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
