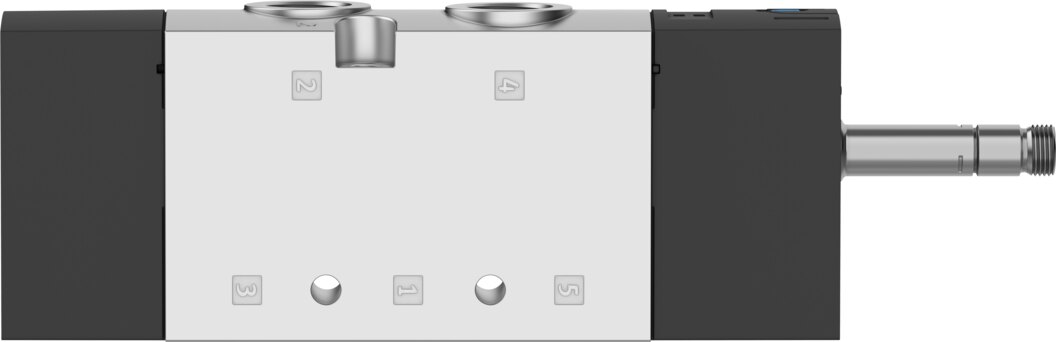

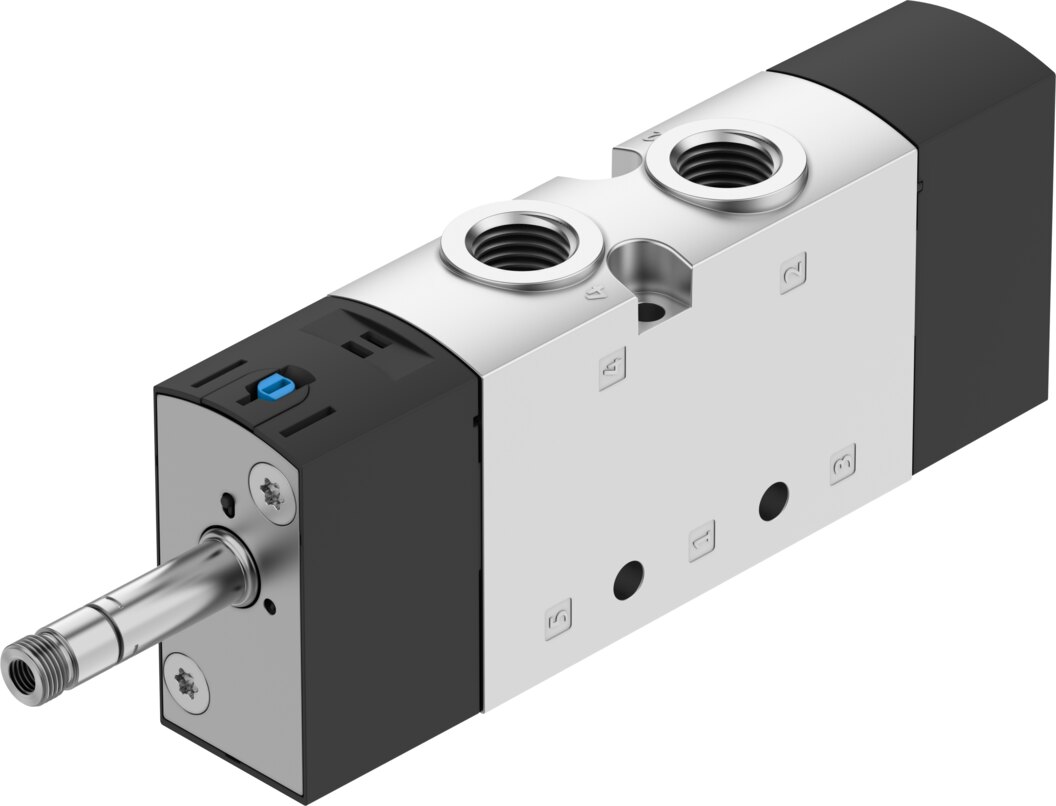

Solenoid valve 3/2-way normally open 1/4 NPT VUVS-L25-M32U-AD-N14-F8 - Festo 575548

Festo ✓ Original product Brand new

The VUVS-L25-M32U-AD-N14-F8 switches compressed air as a 3/2-way valve (normally open, monostable) and reaches 1000 l/min standard nominal flow rate. Ratings: 2.5 to 10 bar operating pressure, 1/4 NPT ports and 26.5 mm valve size. Switching times 12 ms on and 26 ms off.

Net
€61.06
excl. VAT
Item FES-575548
Manufacturer no. VUVS-L25-M32U-AD-N14-F8
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 1000 l/min standard nominal flow rate, the solenoid valve VUVS-L25-M32U-AD-N14-F8 switches as a 3/2-way valve (normally open, monostable) at 2.5 to 10 bar operating pressure. The design is piloted with internal pilot air and comes with 1/4 NPT ports and 26.5 mm valve size.

Benefits

  • Flow: 1000 l/min standard nominal flow rate at 26.5 mm valve size
  • Pressure range: 2.5 to 10 bar
  • Switching times: 12 ms on, 26 ms off
  • Cleanroom: class 6 to ISO 14644-1, LABS conformity VDMA24364-B1/B2-L
  • Environment: corrosion resistance class 2
  • Temperature: -10 to 60 °C ambient

Applications

The VUVS-L25-M32U-AD-N14-F8 suits single-acting cylinders, blow air and vacuum or use as a pilot valve. Mounting of the VUVS-L25-M32U-AD-N14-F8: on manifold rail, with through-hole. The VUVS-L25-M32U-AD-N14-F8 operates on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation possible (in which case lubricated operation will always be required).

Technical data

TypeVUVS-L25-M32U-AD-N14-F8
Festo part number575548

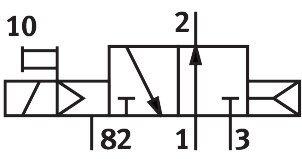

Valve function3/2-way, normally open, monostable
Type of actuationelectrical
Valve size26.5 mm
Standard nominal flow rate1000 l/min
pneumatic working port1/4 NPT
Operating pressure2.5 to 10 bar
Designpiston spool
Reset methodpneumatic spring
Approvalc UL us - Recognized (OL)
Maritime classificationsee certificate
Certificate issuing authorityDNVGL-TAA000011J
Nominal size6.3 mm
Exhaust-air functioncan be throttled
Sealing principlesoft
Mounting positionany
Manual overridedetenting, non-detenting
Type of pilotingpiloted
Pilot air supplyinternal
Flow directionnon-reversible
Overlappositive overlap
b value0.3
C value4.2 l/sbar
Switching time off26 ms
Switching time on12 ms
Max. positive test pulse with 0 signal2000 µs
Max. negative test pulse with 1 signal3600 µs
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumlubricated operation possible (in which case lubricated operation will always be required)
Vibration resistancetransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceshock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14class 6 according to ISO 14644-1
Media temperature-10 to 60 °C
Pilot mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-10 to 60 °C
Product weight244 g
Type of mountingon manifold rail, with through-hole
Breather connectionnot ducted
Pilot exhaust port 8210-32 UNF-2B
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 21/4 NPT
Pneumatic connection, port 31/4 NPT
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingdie-cast aluminium, painted
Material piston slidewrought aluminium alloy
Material screwsgalvanised steel
Weight (shipping)0.26 kg
Weight0.26 kg
ManufacturerFesto
Hersteller-NrVUVS-L25-M32U-AD-N14-F8
EAN4052568377779
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/4
Nominal size DN [mm]6,3
Seal materialHNBR, NBR
MediumCompressed air
Function3/2 open monostable
Flow rate [l/min]1000
Actuation typeElectrical
SeriesVUVS
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
