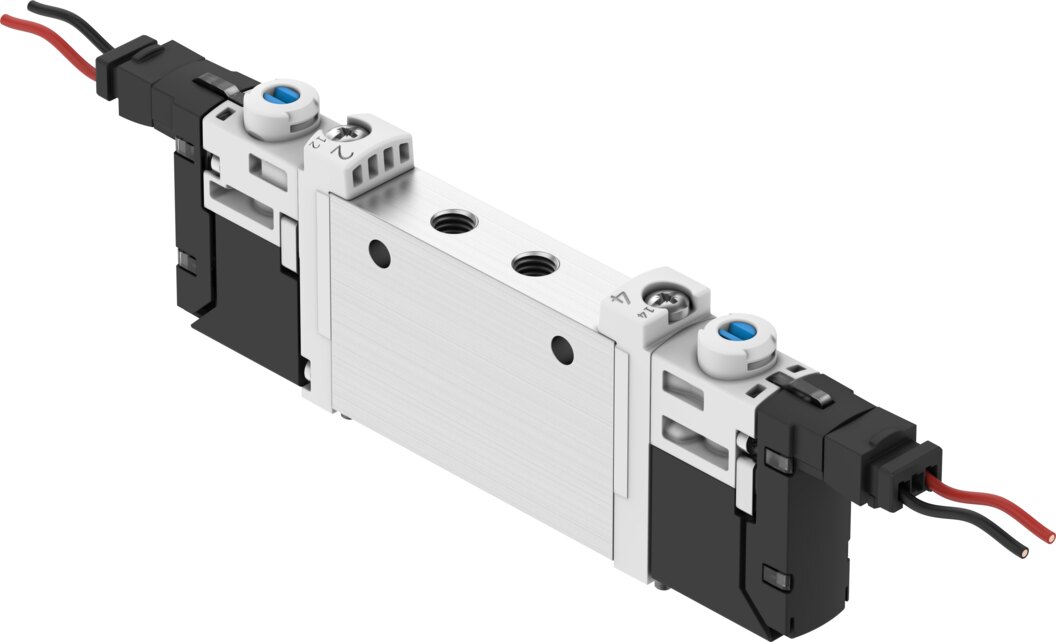

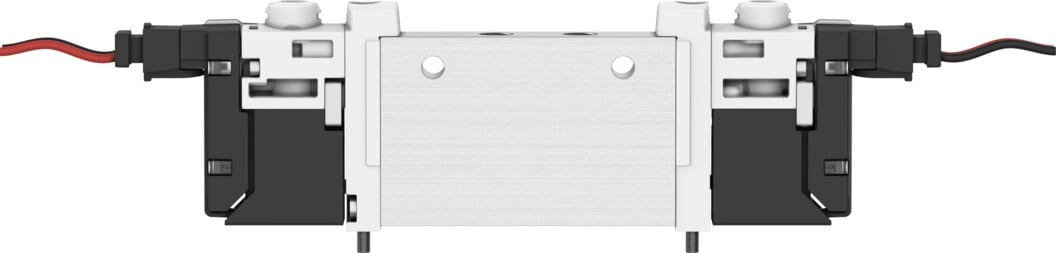

Solenoid valve 5/2-way bistable, valve size 10 mm VUVG-S10-B52-T-Q4-1H2L-W1 - Festo 578967

Festo ✓ Original product Brand new

The solenoid valve VUVG-S10-B52-T-Q4-1H2L-W1 with 5/2-way bistable function and 10 mm valve size controls double-acting cylinders with pulse control. Operating pressure 1.5 to 8 bar, coil 24 V DC with 1.0 W. Internal pilot air.

Net
€95.78
excl. VAT
Item FES-578967
Manufacturer no. VUVG-S10-B52-T-Q4-1H2L-W1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Valve function 5/2-way bistable at 10 mm valve size: the Festo solenoid valve VUVG-S10-B52-T-Q4-1H2L-W1 controls double-acting cylinders with pulse control. The bistable 5/2-way valve keeps its switching position after the signal is removed until the second solenoid switches it back.

Benefits

  • Valve size 10 mm for compact valve arrangements
  • Operating pressure 1.5 to 8 bar
  • Coil 24 V DC with 1.0 W, 100 % duty cycle
  • Degree of protection IP40, with plug socket

Applications

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4]. Within -5 to 60 °C the valve VUVG-S10-B52-T-Q4-1H2L-W1 operates in any mounting position. Festo 578967 is mounted on manifold rail, with through-hole.

Technical data

FeatureValue
TypeVUVG-S10-B52-T-Q4-1H2L-W1
Festo part number578967
SeriesVUVG
Valve function5/2-way bistable
Type of actuationElectrical
Valve size10 mm
Operating pressure1.5 to 8 bar
DesignPiston spool
Degree of protectionIP40, with plug socket
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyInternal
Pilot pressure1.5 to 8 bar
Duty cycle100 %
Coil characteristics24 V DC: 1.0 W
Permissible voltage fluctuation±10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC2 - moderate corrosion stress
Medium temperature-5 to 60 °C
Ambient temperature-5 to 60 °C
Type of mountingOn manifold rail, with through-hole
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.085 kg
ManufacturerFesto
Hersteller-NrVUVG-S10-B52-T-Q4-1H2L-W1
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
MediumCompressed air
Function5/2 bistable
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
Operating voltage24 V DC
Betriebsdruck max [bar]8
Protection ratingIP40
Temperaturbereich-5-60 °C
Temperature (max.)60
