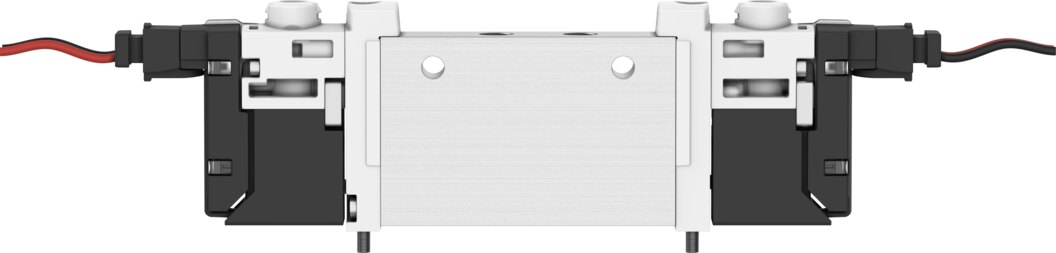

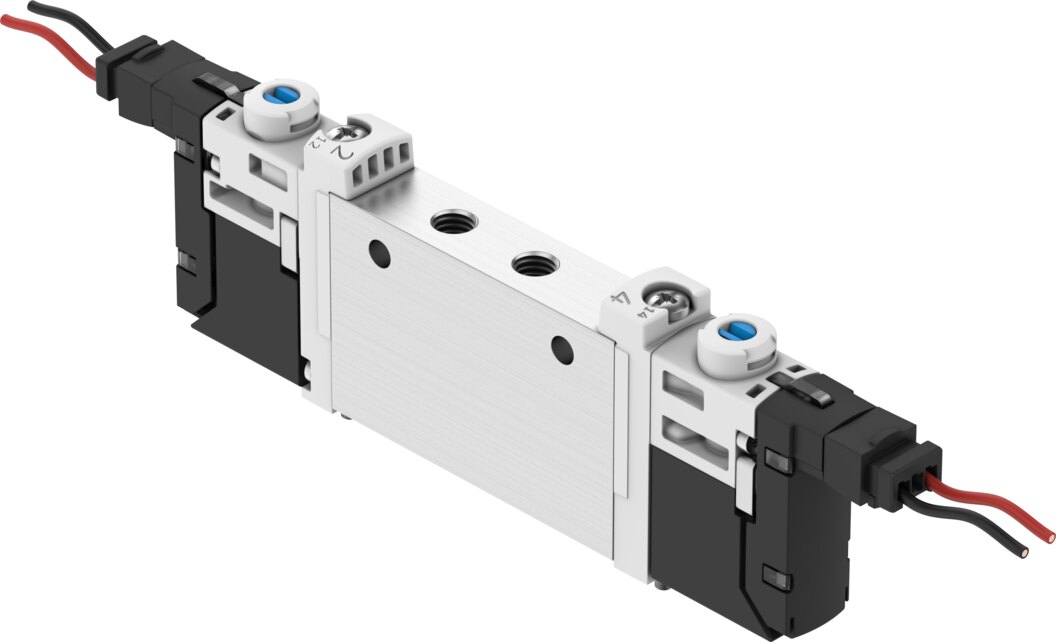

Solenoid valve 5/2-way bistable, valve size 10 mm, M5 VUVG-S10-B52-T-M5-1H2L-W1 - Festo 577327
Switches double-acting cylinders with pulse control with 220 l/min standard nominal flow at only 10 mm valve size. Valve function 5/2-way bistable, operating pressure 1.5 to 8 bar, working ports M5, coil 24 V DC with 1.0 W. Housing in wrought aluminium alloy, seals in HNBR, NBR.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The solenoid valve VUVG-S10-B52-T-M5-1H2L-W1 from the Festo VUVG series delivers 220 l/min standard nominal flow at 10 mm valve size. The bistable 5/2-way valve keeps its switching position after the signal is removed until the second solenoid switches it back.
Benefits
- Standard nominal flow rate 220 l/min at 10 mm valve size, nominal size 3.2 mm
- Operating pressure 1.5 to 8 bar
- Coil 24 V DC with 1.0 W, 100 % duty cycle
- Working ports M5
- Degree of protection IP40, with plug socket
- Cleanroom suitable: class 5 to ISO 14644-1
Applications
The operating medium is compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation is possible and then required permanently. Within -5 to 60 °C the valve VUVG-S10-B52-T-M5-1H2L-W1 operates in any mounting position. Festo 577327 is connected electrically 2-pin, plug pattern H, horizontal connection, cable with open end and mounted on manifold rail, with through-hole.
Technical data
| Feature | Value |
|---|---|
| Type | VUVG-S10-B52-T-M5-1H2L-W1 |
| Festo part number | 577327 |
| Series | VUVG |
| Valve function | 5/2-way bistable |
| Type of actuation | Electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 220 l/min |
| Pneumatic working port | M5 |
| Operating voltage | 24 V DC |
| Operating pressure | 1.5 to 8 bar |
| Design | Piston spool |
| Approval | RCM mark, c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | To EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS regulations, to UK electrical equipment regulations |
| Degree of protection | IP40, with plug socket |
| Nominal size | 3.2 mm |
| Exhaust air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting, non-detenting, concealed |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Overlap | Positive overlap |
| Pilot pressure | 1.5 to 8 bar |
| Vacuum suitability | No |
| Changeover time | 7 ms |
| Duty cycle | 100 % |
| Maximum positive test pulse at 0 signal | 700 µs |
| Maximum negative test pulse at 1 signal | 900 µs |
| Coil characteristics | 24 V DC: 1.0 W |
| Permissible voltage fluctuation | ±10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (then required for further operation) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Ambient and media temperature restriction | -5 to 50 °C, without holding current reduction |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS conformity (LABS) | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured to ISO 14644-14 | Class 5 to ISO 14644-1 |
| Medium temperature | -5 to 60 °C |
| Ambient temperature | -5 to 60 °C |
| Electrical connection | 2-pin, plug pattern H, horizontal connection, cable with open end |
| Type of mounting | On manifold rail, with through-hole |
| Pneumatic port 1 | M5 |
| Pneumatic port 2 | M5 |
| Pneumatic port 3 | M5 |
| Pneumatic port 4 | M5 |
| Pneumatic port 5 | M5 |
| Note on materials | RoHS compliant |
| Seal material | HNBR, NBR |
| Housing material | Wrought aluminium alloy |
| Weight | 0.065 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-S10-B52-T-M5-1H2L-W1 |
| EAN | 4052568381547 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Nominal size DN [mm] | 3,2 |
| Medium | Compressed air |
| Function | 5/2 bistable |
| Flow rate [l/min] | 220 |
| Actuation type | Electrical |
| Medientemperatur [°C] | -5 bis 60 |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | M5 |
| Protection rating | IP40 |
| Temperaturbereich | -5-60 °C |
| Temperature (max.) | 60 |
