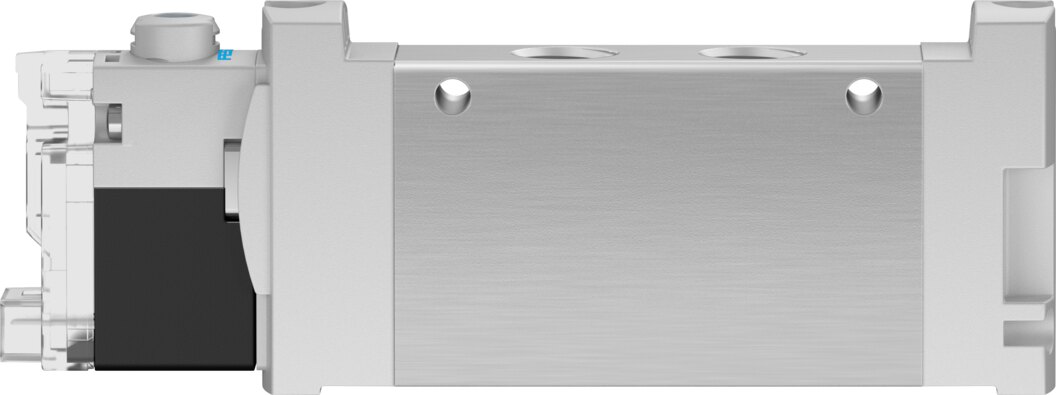

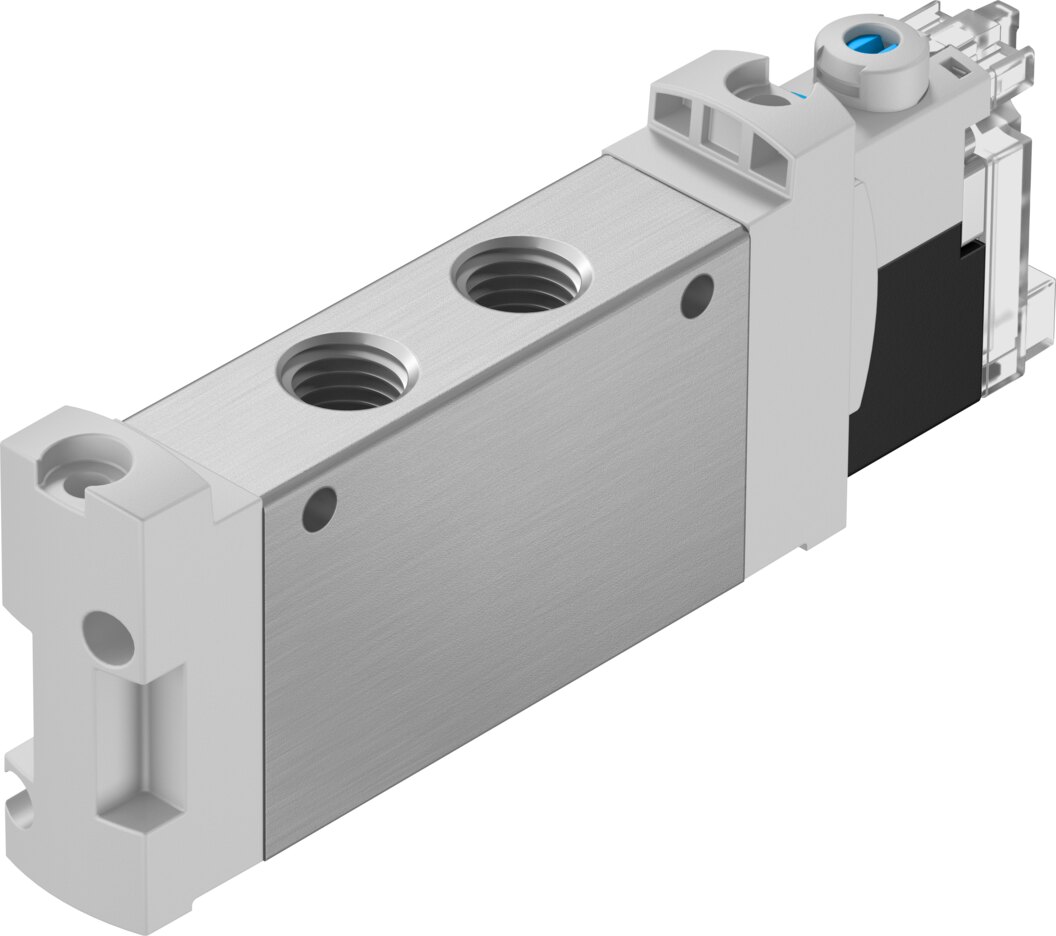

Solenoid valve 5/2 monostable, 14 mm, G1/8 VUVG-LK14-M52-AT-G18-1H2L-S - Festo 8042563

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-LK14-M52-AT-G18-1H2L-S, function 5/2 monostable for 660 l/min at 2.5 to 7 bar operating pressure. Port G1/8, valve size 14 mm, 24 V DC coil with 0.8 W.

Net
€52.02
excl. VAT
Item FES-8042563
Manufacturer no. VUVG-LK14-M52-AT-G18-1H2L-S
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-LK14-M52-AT-G18-1H2L-S switches as a 5/2-way valve and returns to its normal position via a pneumatic (air) spring when the signal drops. In valve size 14 mm it reaches 660 l/min standard nominal flow.

Benefits

  • Flow and switching time: 660 l/min at valve size 14 mm, switches on in 14 ms and off in 24 ms.
  • Pressure range: 2.5 to 7 bar operating pressure.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.
  • Protection: Degree of protection IP40, ambient -5 to 50 °C.

Application

Use the VUVG-LK14-M52-AT-G18-1H2L-S to control double-acting actuators directly. Pilot air is taken internally from the supply port. Manual override detenting, non-detenting. Installation on manifold rail, with through-hole, product weight 65 g. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Lubricated operation possible, then always required.

Technical data

TypeVUVG-LK14-M52-AT-G18-1H2L-S
Festo part number8042563
Valve function5/2-way, single solenoid
Type of actuationElectrical
Valve size14 mm
Standard nominal flow rate (to DIN 1343)660 l/min
Pneumatic working portG1/8
Operating voltage24 V DC
Operating pressure2.5 to 7 bar
DesignPiston spool with sealing ring
Type of resetPneumatic spring
Approvalc UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP40
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
OverlapPositive overlap
Signal status displayLED
Maximum switching frequency2 Hz
Switching time off24 ms
Switching time on14 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal1600 µs
Maximum negative test pulse with 1 signal3000 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Media temperature-5 to 50 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight65 g
Electrical connectionPlug
Type of mountingOn manifold rail, with through-hole
Pneumatic connection, port 2G1/8
Pneumatic connection, port 4G1/8
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVUVG-LK14-M52-AT-G18-1H2L-S
EAN4052568286903
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/8
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]660
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
SeriesVUVG
Betriebsdruck max [bar]7
Pneumatic connectionG1/8
Protection ratingIP40
Temperature (max.)50
