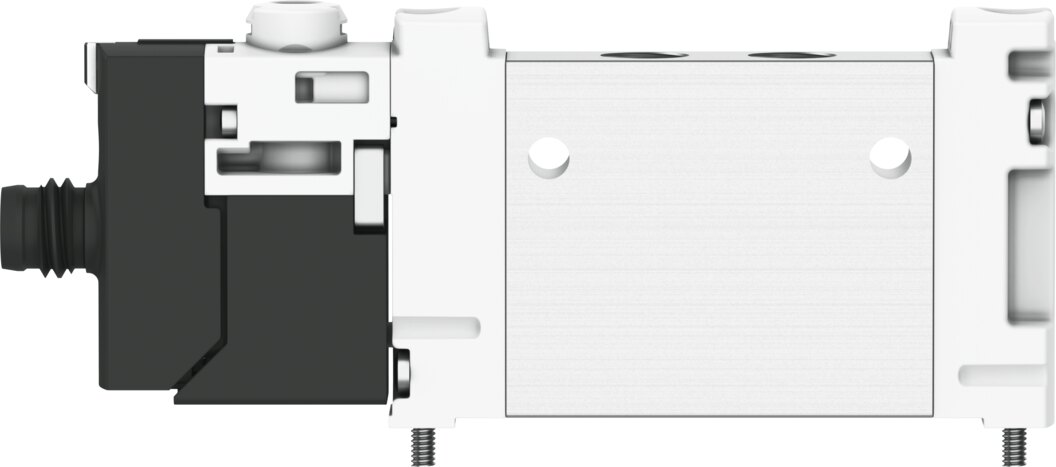

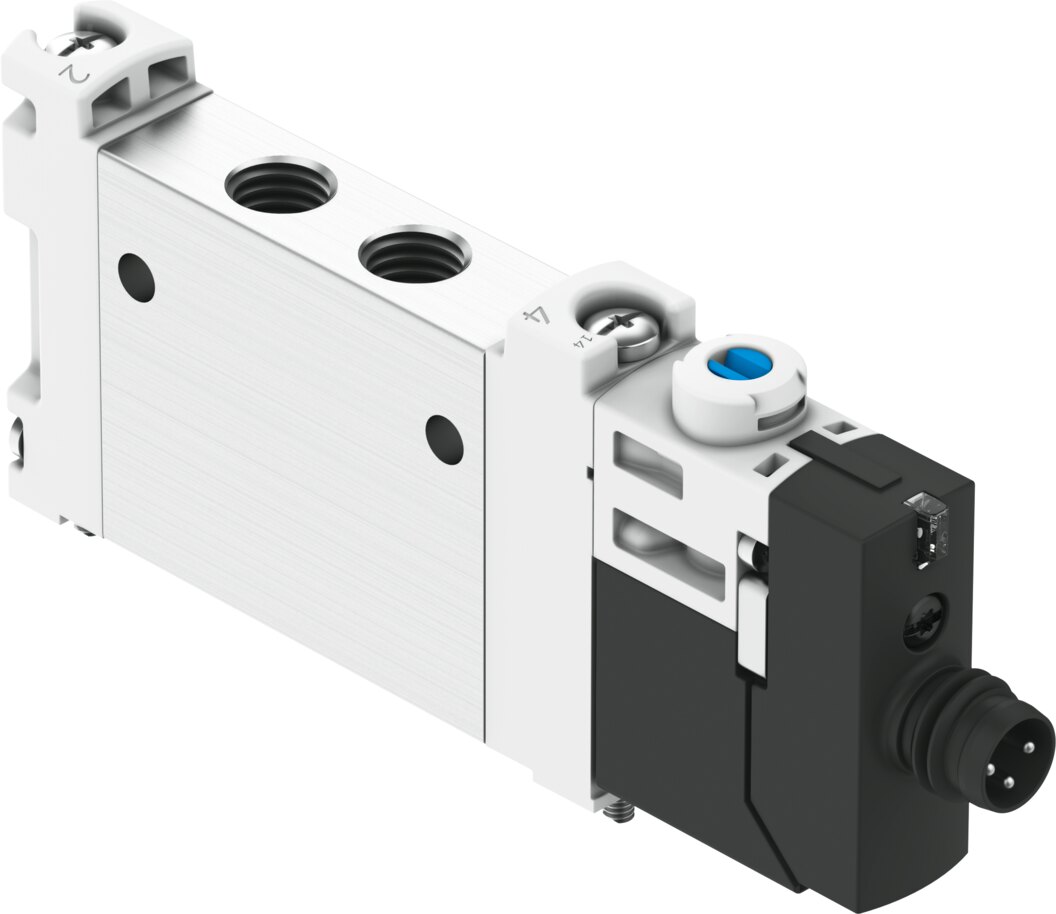

Solenoid valve 5/2 monostable, 10 mm, M7 VUVG-LK10-M52-AT-M7-1R8L-S - Festo 8042551

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-LK10-M52-AT-M7-1R8L-S, function 5/2 monostable: 340 l/min standard nominal flow, operating pressure 2.5 to 7 bar. Port M7, valve size 10 mm, 24 V DC coil with 0.8 W.

Net
€54.41
excl. VAT
Item FES-8042551
Manufacturer no. VUVG-LK10-M52-AT-M7-1R8L-S
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-LK10-M52-AT-M7-1R8L-S works as a monostable 5/2-way valve, reset is by a pneumatic (air) spring. In valve size 10 mm it reaches 340 l/min standard nominal flow.

Benefits

  • Flow and switching time: 340 l/min at valve size 10 mm, switches on in 14 ms and off in 17 ms.
  • Protection: Degree of protection IP65, ambient -5 to 50 °C.
  • Pressure range: 2.5 to 7 bar operating pressure.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.

Application

Suited to double-acting cylinders. Pilot air is taken internally from the supply port. Manual override detenting, non-detenting. Mounting on manifold rail, with through-hole, product weight 45 g. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Lubricated operation possible, then always required.

Technical data

TypeVUVG-LK10-M52-AT-M7-1R8L-S
Festo part number8042551
Valve function5/2-way, single solenoid
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate (to DIN 1343)340 l/min
Pneumatic working portM7
Operating voltage24 V DC
Operating pressure2.5 to 7 bar
DesignPiston spool with sealing ring
Type of resetPneumatic spring
Approvalc UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP65
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting
Type of pilotingPiloted
Pilot air supplyInternal
Flow directionNon-reversible
OverlapPositive overlap
Signal status displayLED
Maximum switching frequency2 Hz
Switching time off17 ms
Switching time on14 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal1600 µs
Maximum negative test pulse with 1 signal3000 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Media temperature-5 to 50 °C
Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature-5 to 50 °C
Product weight45 g
Electrical connectionM8x1 A-coded to EN 61076-2-104, plug
Type of mountingOn manifold rail, with through-hole
Pneumatic connection, port 2M7
Pneumatic connection, port 4M7
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVUVG-LK10-M52-AT-M7-1R8L-S
EAN4052568286811
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM7
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/2 monostable
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
NormDIN EN 61076-2-104
SeriesVUVG
Betriebsdruck max [bar]7
Pneumatic connectionM7
Protection ratingIP65
Temperature (max.)50
