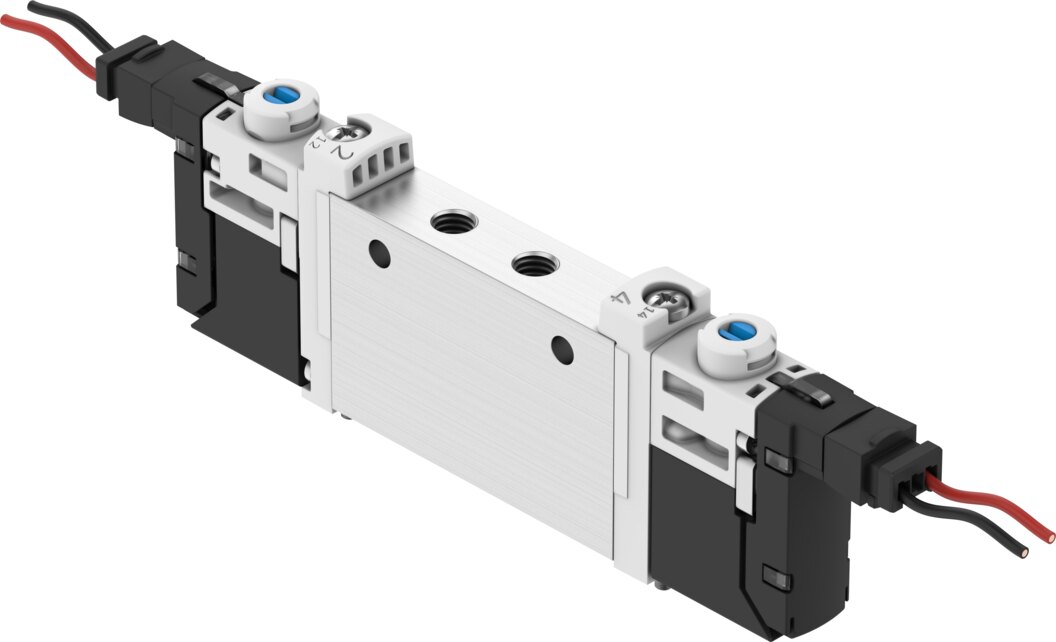

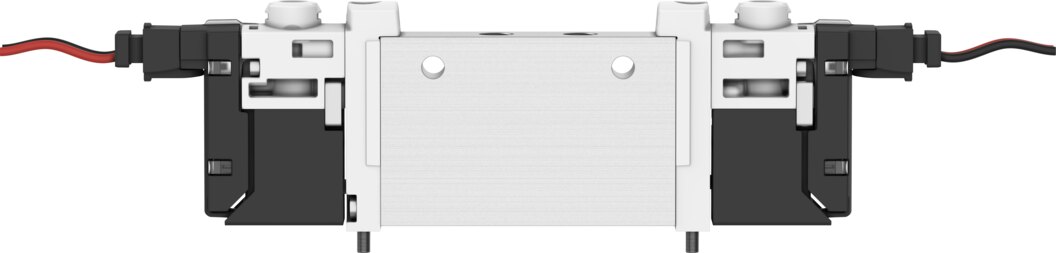

Solenoid valve 5/3-way closed, valve size 10 mm, M5 VUVG-L10-P53C-T-M5-1H2L-W1 - Festo 577318

Festo ✓ Original product Brand new

Switches double-acting cylinders with stops in intermediate positions with 210 l/min standard nominal flow at only 10 mm valve size. Valve function 5/3-way closed, operating pressure 3 to 8 bar, working ports M5, coil 24 V DC with 1.0 W. Switching times 11 ms on and 30 ms off.

Net
€105.28
excl. VAT
Item FES-577318
Manufacturer no. VUVG-L10-P53C-T-M5-1H2L-W1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

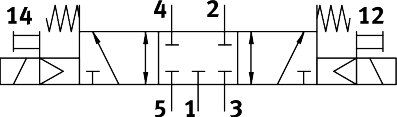

The solenoid valve VUVG-L10-P53C-T-M5-1H2L-W1 from the Festo VUVG series delivers 210 l/min standard nominal flow at 10 mm valve size. The closed mid-position shuts off the cylinder chambers and stops the actuator when neither solenoid is energised.

Benefits

  • Standard nominal flow rate 210 l/min at 10 mm valve size, nominal size 3.2 mm
  • Operating pressure 3 to 8 bar
  • Short switching times: 11 ms on, 30 ms off
  • Coil 24 V DC with 1.0 W, 100 % duty cycle
  • Working ports M5
  • Cleanroom suitable: class 5 to ISO 14644-1

Applications

The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Once lubricated, operation must remain lubricated. Permissible media and ambient temperature of the VUVG-L10-P53C-T-M5-1H2L-W1: -5 to 60 °C, the mounting position is freely selectable. Mounting of the VUVG-L10-P53C-T-M5-1H2L-W1: on manifold rail, with through-hole, electrical connection 2-pin, plug pattern H, horizontal connection, cable with open end.

Technical data

FeatureValue
TypeVUVG-L10-P53C-T-M5-1H2L-W1
Festo part number577318
SeriesVUVG
Valve function5/3-way closed
Type of actuationElectrical
Valve size10 mm
Standard nominal flow rate210 l/min
Pneumatic working portM5
Operating voltage24 V DC
Operating pressure3 to 8 bar
DesignPiston spool
Type of resetMechanical spring
ApprovalRCM mark, c UL us - Recognized (OL)
CE marking (see declaration of conformity)To EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS regulations, to UK electrical equipment regulations
Degree of protectionIP40, with plug socket
Nominal size3.2 mm
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyInternal
OverlapPositive overlap
Pilot pressure3 to 8 bar
Vacuum suitabilityNo
Switching time off30 ms
Switching time on11 ms
Changeover time14 ms
Duty cycle100 %
Maximum positive test pulse at 0 signal700 µs
Maximum negative test pulse at 1 signal900 µs
Coil characteristics24 V DC: 1.0 W
Permissible voltage fluctuation±10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Ambient and media temperature restriction-5 to 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - moderate corrosion stress
PWIS conformity (LABS)VDMA24364-B1/B2-L
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Medium temperature-5 to 60 °C
Ambient temperature-5 to 60 °C
Electrical connection2-pin, plug pattern H, horizontal connection, cable with open end
Type of mountingOn manifold rail, with through-hole
Pneumatic port 1M5
Pneumatic port 2M5
Pneumatic port 3M5
Pneumatic port 4M5
Pneumatic port 5M5
Note on materialsRoHS compliant
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.065 kg
ManufacturerFesto
Hersteller-NrVUVG-L10-P53C-T-M5-1H2L-W1
EAN4052568381493
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadM5
Nominal size DN [mm]3,2
MediumCompressed air
Function5/3 closed
Flow rate [l/min]210
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
Betriebsdruck max [bar]8
Pneumatic connectionM5
Protection ratingIP40
Temperaturbereich-5-60 °C
Temperature (max.)60
