Solenoid valve 2x 3/2 normally closed, monostable, 18 mm, G1/4 VUVG-L18-T32C-M-G14-P1 - Festo 8033550

Festo ✓ Original product Brand new

Festo solenoid valve VUVG-L18-T32C-M-G14-P1, function 2x 3/2 normally closed, monostable for 870 l/min at 3 to 8 bar operating pressure. Port G1/4, valve size 18 mm, pilot interface to ISO 15218.

Net
€76.50
excl. VAT
Item FES-8033550
Manufacturer no. VUVG-L18-T32C-M-G14-P1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

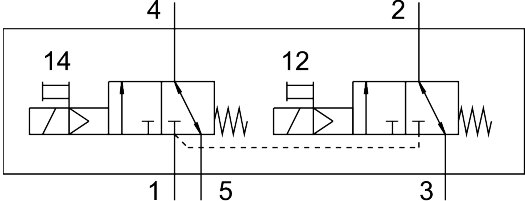

The solenoid valve VUVG-L18-T32C-M-G14-P1 combines two 3/2-way valves (normally closed) in one housing. In valve size 18 mm it reaches 870 l/min standard nominal flow.

Benefits

  • Flow and switching time: 870 l/min at valve size 18 mm, switches on in 16 ms and off in 15 ms.
  • Corrosion protection: CRC 2 - Moderate corrosion stress.
  • Piloting: Interface to ISO 15218.
  • Protection: Degree of protection IP65 with plug socket.
  • Pressure range: 3 to 8 bar operating pressure.
  • Cleanroom: Class 5 to ISO 14644-1.

Application

Use: single-acting cylinders, separate pilot circuits. Pilot air is taken internally from the supply port. Installation on manifold rail, with through-hole, product weight 140 g. Medium: compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 60 °C, ambient -5 to 60 °C. Lubricated operation possible, then always required.

Technical data

TypeVUVG-L18-T32C-M-G14-P1
Festo part number8033550
Valve function2x3/2-way, closed, monostable
Type of actuationElectrical
Valve size18 mm
Standard nominal flow rate (to DIN 1343)870 l/min
Pneumatic working portG1/4
Operating pressure3 to 8 bar
DesignPiston spool
Type of resetMechanical spring
Approvalc UL us - Recognized (OL)
CE marking (see declaration of conformity)To EU EMC Directive, to EU Low Voltage Directive, to EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS regulations, to UK regulations for electrical equipment
Certificate issuing authorityUL MH19482
Degree of protectionIP65, with electric pilot valve and plug socket
Nominal size5.7 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyInternal
OverlapPositive overlap
Pilot pressure2 to 8 bar
Switching time off15 ms
Switching time on16 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Media temperature-5 to 60 °C
Ambient temperature-5 to 60 °C
Product weight140 g
Electrical connectionVia electric pilot valve
Type of mountingOn manifold rail, with through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Pilot control interfaceTo ISO 15218
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Weight0.15 kg
ManufacturerFesto
Hersteller-NrVUVG-L18-T32C-M-G14-P1
EAN4052568429133
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/4
Nominal size DN [mm]5,7
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function2x3/2 closed monostable
Flow rate [l/min]870
Actuation typeElectrical
Medientemperatur [°C]-5 bis 60
NormISO 15218
SeriesVUVG
Betriebsdruck max [bar]8
Pneumatic connectionG1/4
Protection ratingIP65
Temperaturbereich-5-60 °C
Temperature (max.)60
