Solenoid valve 2x3/2-way closed, monostable, valve size 10 mm, sub-base version VUVG-B10-T32C-AZT-F-1H2RL - Festo 572194

Festo ✓ Original product Brand new

The solenoid valve VUVG-B10-T32C-AZT-F-1H2RL with 2x3/2-way closed, monostable function and 10 mm valve size controls two single-acting actuators or separate air circuits. Operating pressure 1.5 to 10 bar, sub-base version for mounting on a manifold rail.

Net
€90.54
excl. VAT
Item FES-572194
Manufacturer no. VUVG-B10-T32C-AZT-F-1H2RL
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

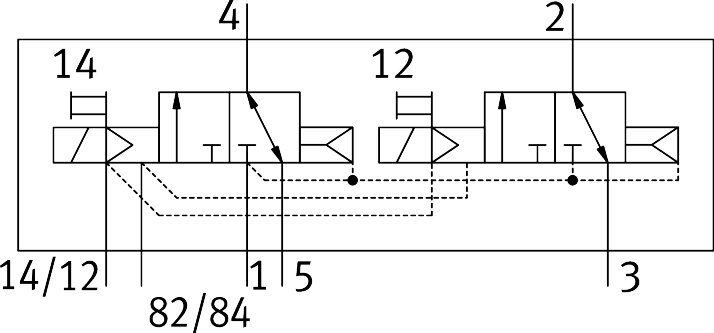

Valve function 2x3/2-way closed, monostable at 10 mm valve size: the Festo solenoid valve VUVG-B10-T32C-AZT-F-1H2RL controls two single-acting actuators or separate air circuits. The housing contains two separately controlled 3/2-way valves, both normally closed.

Benefits

  • Valve size 10 mm for compact valve arrangements
  • Operating pressure 1.5 to 10 bar
  • Sub-base version for mounting on a manifold rail
  • External pilot air at 1.5 to 8 bar

Applications

The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Mounting of the VUVG-B10-T32C-AZT-F-1H2RL: on manifold rail.

Technical data

FeatureValue
TypeVUVG-B10-T32C-AZT-F-1H2RL
Festo part number572194
SeriesVUVG
Valve function2x3/2-way closed, monostable
Type of actuationElectrical
Valve size10 mm
Operating pressure1.5 to 10 bar
DesignPiston spool
Type of resetPneumatic spring
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyExternal
Pilot pressure1.5 to 8 bar
Duty cycle100 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.06 kg
ManufacturerFesto
Hersteller-NrVUVG-B10-T32C-AZT-F-1H2RL
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
MediumCompressed air
Function2x3/2 closed monostable
Actuation typeElectrical
Betriebsdruck max [bar]10
Pneumatic connectionFlange
