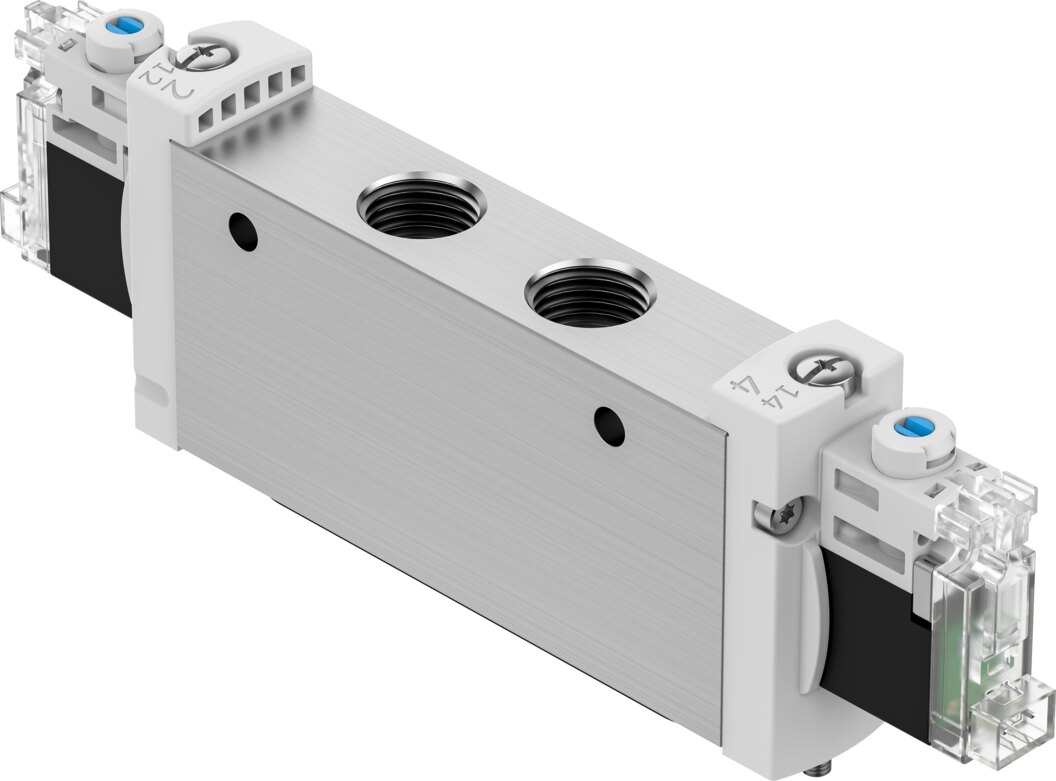

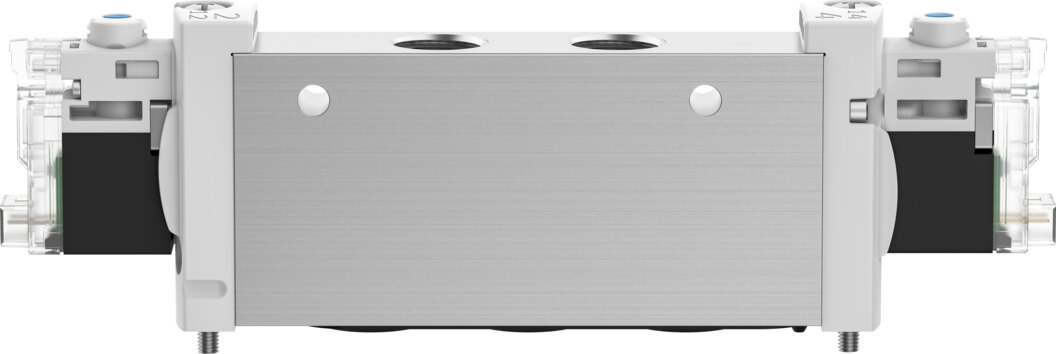

Solenoid valve 5/3 closed centre, 18 mm, G1/4 VUVG-L18-P53C-T-G14-1H3L - Festo 610081

Festo ✓ Original product Brand new

5/3 closed centre solenoid valve from the VUVG series in valve size 18 mm. Port G1/4, 24 V DC coil, reset by mechanical spring, internal pilot air.

Net
€111.74
excl. VAT
Item FES-610081
Manufacturer no. VUVG-L18-P53C-T-G14-1H3L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

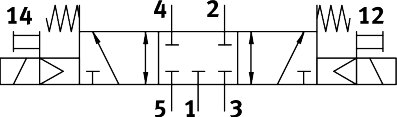

The solenoid valve VUVG-L18-P53C-T-G14-1H3L keeps ports 2 and 4 closed in the mid-position, working as a 5/3-way valve. VUVG series, valve size 18 mm.

Benefits

  • Size: Valve size 18 mm, working port G1/4.
  • Reset: Mechanical spring, internal pilot air.
  • Manual override: Detenting, non-detenting.
  • Voltage: 24 V DC.

Application

This lets a cylinder stop in an intermediate position. Internal pilot air from port 1. Mounting on manifold rail, with through-hole, weight 0.165 kg. The data is derived from order type VUVG-L18-P53C-T-G14-1H3L, see the Festo datasheet for further values.

Technical data

TypeVUVG-L18-P53C-T-G14-1H3L
Festo part number610081
Valve function5/3-way, mid-position closed
Type of actuationElectrical
Valve size18 mm
Pneumatic working portG1/4
Operating voltage24 V DC
Type of resetMechanical spring
Manual overrideDetenting, non-detenting
Pilot air supplyInternal
Type of mountingOn manifold rail, with through-hole
Weight0.165 kg
ManufacturerFesto
Hersteller-NrVUVG-L18-P53C-T-G14-1H3L
Zolltarifnummer90330090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Function5/3 closed
Actuation typeElectrical
SeriesVUVG
Pneumatic connectionG1/4
