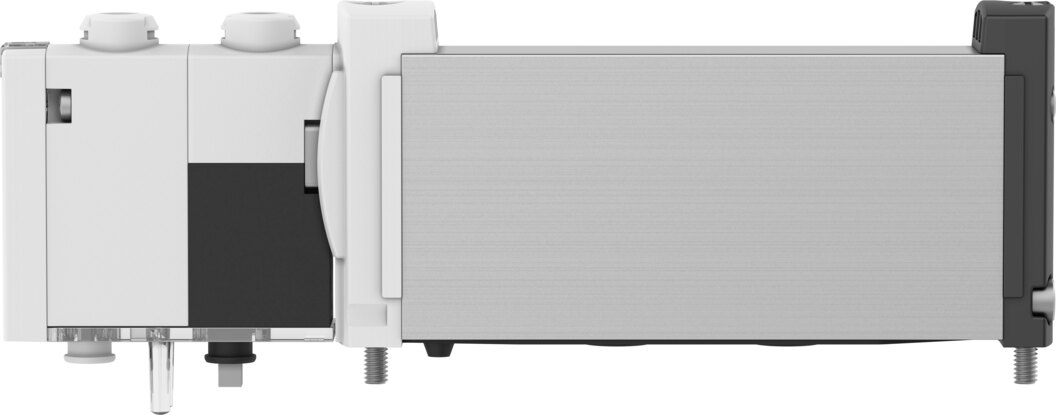

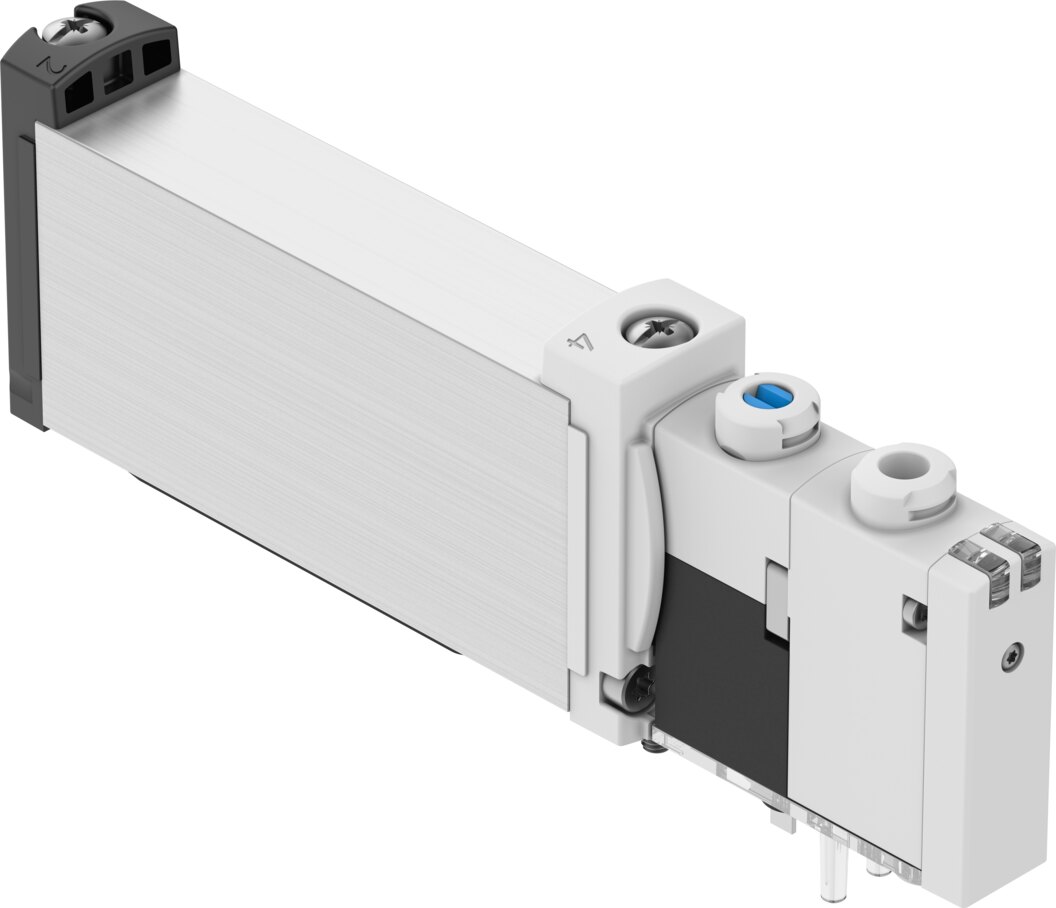

Solenoid valve 5/2-way monostable, valve size 14 mm, sub-base version VUVG-B14-M52-AZT-F-1H2L - Festo 579144

Festo ✓ Original product Brand new

The solenoid valve VUVG-B14-M52-AZT-F-1H2L with 5/2-way monostable function and 14 mm valve size controls double-acting cylinders and actuators. Operating pressure -0.9 to 10 bar, sub-base version for mounting on a manifold rail. Operating medium compressed air to ISO 8573-1:2010 [7:4:4].

Net
€65.48
excl. VAT
Item FES-579144
Manufacturer no. VUVG-B14-M52-AZT-F-1H2L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

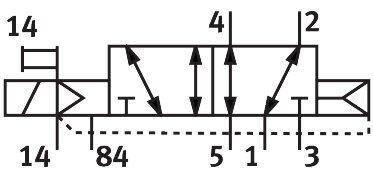

Valve function 5/2-way monostable at 14 mm valve size: the Festo solenoid valve VUVG-B14-M52-AZT-F-1H2L controls double-acting cylinders and actuators. As a monostable 5/2-way valve it controls both chambers of a double-acting cylinder and drops back to its normal position on loss of signal.

Benefits

  • Valve size 14 mm for compact valve arrangements
  • Operating pressure -0.9 to 10 bar, suitable for vacuum
  • Sub-base version for mounting on a manifold rail
  • External pilot air

Applications

The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Festo 579144 is mounted on manifold rail.

Technical data

FeatureValue
TypeVUVG-B14-M52-AZT-F-1H2L
Festo part number579144
SeriesVUVG
Valve function5/2-way monostable
Type of actuationElectrical
Valve size14 mm
Operating pressure-0.9 to 10 bar
DesignPiston spool
Type of resetPneumatic spring
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyExternal
Duty cycle100 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.09 kg
ManufacturerFesto
Hersteller-NrVUVG-B14-M52-AZT-F-1H2L
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
MediumCompressed air
Function5/2 monostable
Actuation typeElectrical
Betriebsdruck max [bar]10
Pneumatic connectionFlange

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
