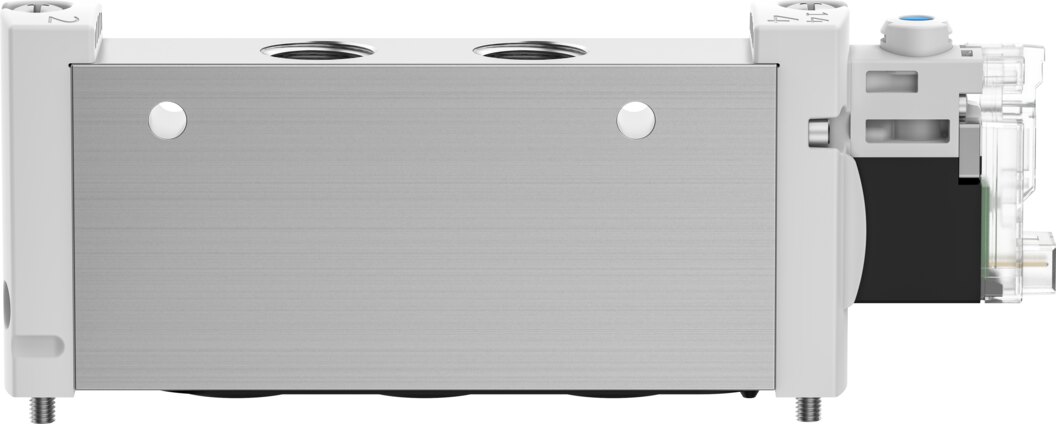

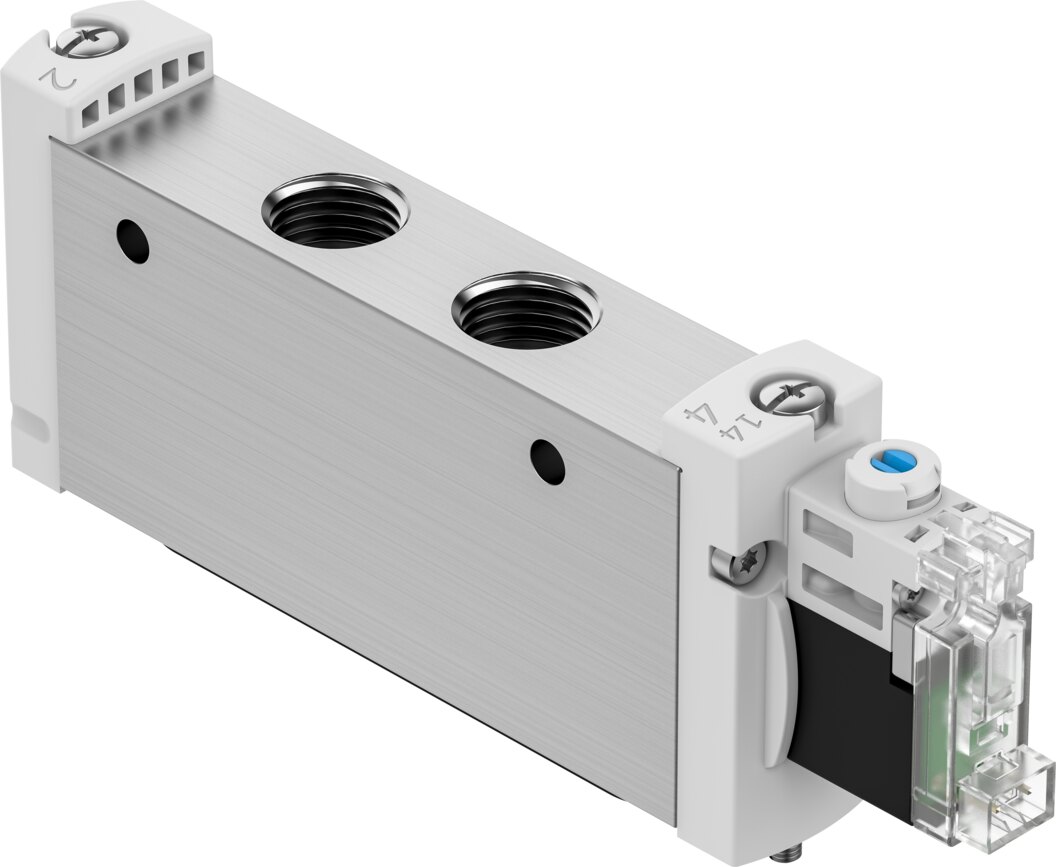

Solenoid valve 5/2-way monostable, valve size 18 mm, G1/4 VUVG-L18-M52-RT-G14-1H2L - Festo 579163

Festo ✓ Original product Brand new

The solenoid valve VUVG-L18-M52-RT-G14-1H2L with 5/2-way monostable function and 18 mm valve size controls double-acting cylinders and actuators. Operating pressure 2.5 to 8 bar, working ports G1/4. Housing in wrought aluminium alloy, seals in HNBR, NBR.

Net
€72.49
excl. VAT
Item FES-579163
Manufacturer no. VUVG-L18-M52-RT-G14-1H2L
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Valve function 5/2-way monostable at 18 mm valve size: the Festo solenoid valve VUVG-L18-M52-RT-G14-1H2L controls double-acting cylinders and actuators. As a monostable 5/2-way valve it controls both chambers of a double-acting cylinder and drops back to its normal position on loss of signal.

Benefits

  • Standard nominal flow rate 1300 l/min at 18 mm valve size, nominal size 6.9 mm
  • Operating pressure 2.5 to 8 bar
  • Working ports G1/4
  • Internal pilot air

Applications

The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Mounting of the VUVG-L18-M52-RT-G14-1H2L: on manifold rail, with through-hole.

Technical data

FeatureValue
TypeVUVG-L18-M52-RT-G14-1H2L
Festo part number579163
SeriesVUVG
Valve function5/2-way monostable
Type of actuationElectrical
Valve size18 mm
Standard nominal flow rate1300 l/min
Operating pressure2.5 to 8 bar
DesignPiston spool
Type of resetMechanical spring, pneumatic spring
Nominal size6.9 mm
Exhaust air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyInternal
Pilot pressure2.5 to 8 bar
Duty cycle100 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Type of mountingOn manifold rail, with through-hole
Pneumatic port 1G1/4
Pneumatic port 2G1/4
Pneumatic port 4G1/4
Pneumatic port 5G1/4
Seal materialHNBR, NBR
Housing materialWrought aluminium alloy
Weight0.16 kg
ManufacturerFesto
Hersteller-NrVUVG-L18-M52-RT-G14-1H2L
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/4
Nominal size DN [mm]6,9
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]1300
Actuation typeElectrical
Betriebsdruck max [bar]8
Pneumatic connectionG1/4
