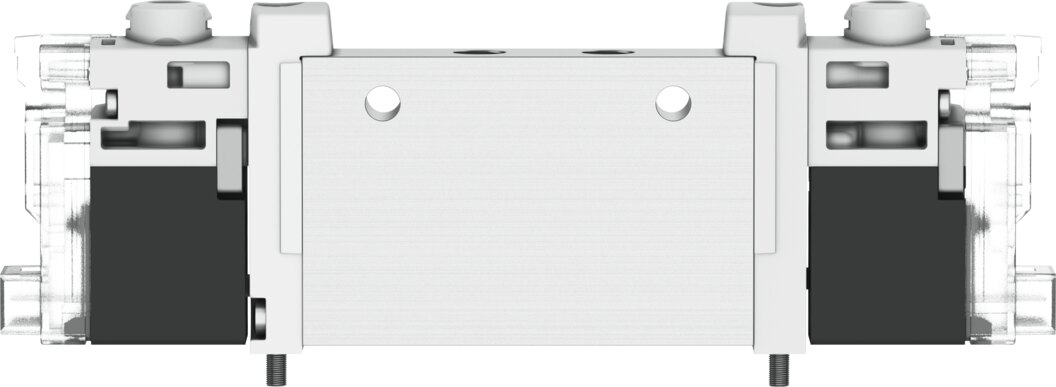

Solenoid valve 5/3-way closed, valve size 10 mm, M5 VUVG-L10-P53C-T-M5-1H2RL - Festo 572177
The solenoid valve VUVG-L10-P53C-T-M5-1H2RL with 5/3-way closed function and 10 mm valve size controls double-acting cylinders with stops in intermediate positions. Operating pressure 3 to 8 bar, working ports M5. Housing in wrought aluminium alloy, seals in HNBR, NBR.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The solenoid valve VUVG-L10-P53C-T-M5-1H2RL from the Festo VUVG series delivers 210 l/min standard nominal flow at 10 mm valve size. The closed mid-position shuts off the cylinder chambers and stops the actuator when neither solenoid is energised.
Benefits
- Standard nominal flow rate 210 l/min at 10 mm valve size, nominal size 3.2 mm
- Operating pressure 3 to 8 bar
- Working ports M5
- Internal pilot air
Applications
The valve runs on compressed air to ISO 8573-1:2010 [7:4:4]. Festo 572177 is mounted on manifold rail, with through-hole.
Technical data
| Feature | Value |
|---|---|
| Type | VUVG-L10-P53C-T-M5-1H2RL |
| Festo part number | 572177 |
| Series | VUVG |
| Valve function | 5/3-way closed |
| Type of actuation | Electrical |
| Valve size | 10 mm |
| Standard nominal flow rate | 210 l/min |
| Operating pressure | 3 to 8 bar |
| Design | Piston spool |
| Type of reset | Mechanical spring |
| Nominal size | 3.2 mm |
| Exhaust air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Piloted |
| Pilot air supply | Internal |
| Pilot pressure | 3 to 8 bar |
| Duty cycle | 100 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Type of mounting | On manifold rail, with through-hole |
| Pneumatic port 1 | M5 |
| Pneumatic port 2 | M5 |
| Pneumatic port 4 | M5 |
| Pneumatic port 5 | M5 |
| Seal material | HNBR, NBR |
| Housing material | Wrought aluminium alloy |
| Weight | 0.065 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VUVG-L10-P53C-T-M5-1H2RL |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Nominal size DN [mm] | 3,2 |
| Medium | Compressed air |
| Function | 5/3 closed |
| Flow rate [l/min] | 210 |
| Actuation type | Electrical |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | M5 |
