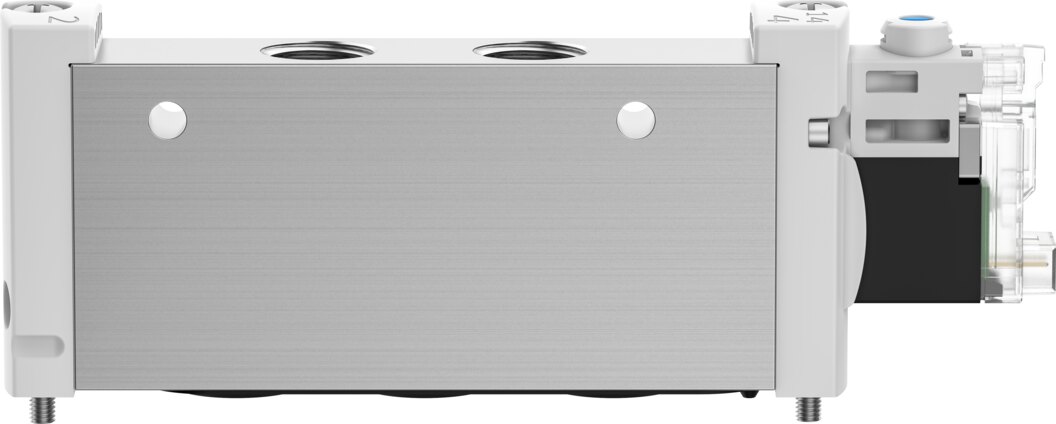

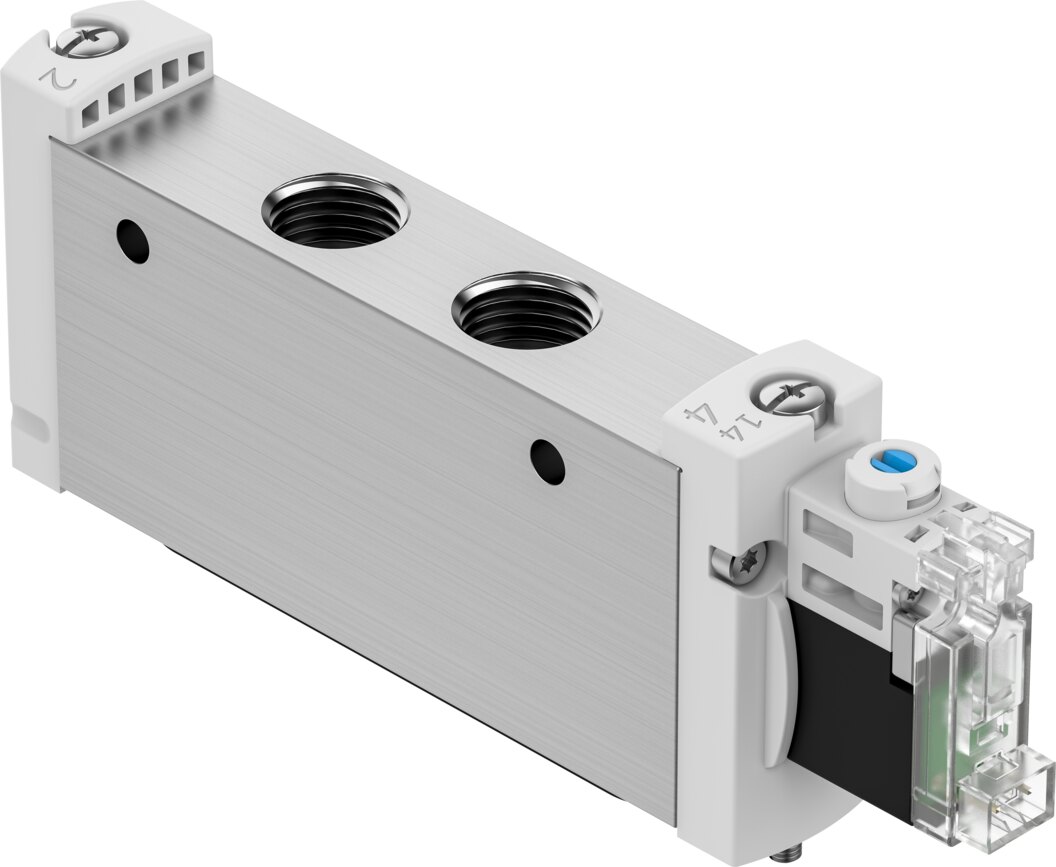

Solenoid valve 5/2 monostable, 18 mm, G1/4 VUVG-L18-M52-MT-G14-1H2L-F1A - Festo 8172836

Festo ✓ Original product Brand new

5/2 monostable solenoid valve from the VUVG series for 1300 l/min at 3 to 8 bar operating pressure. Port G1/4, valve size 18 mm, 24 V DC coil with 0.8 W.

Net
€85.74
excl. VAT
Item FES-8172836
Manufacturer no. VUVG-L18-M52-MT-G14-1H2L-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The solenoid valve VUVG-L18-M52-MT-G14-1H2L-F1A switches as a 5/2-way valve and returns to its normal position via a mechanical spring when the signal drops. At 18 mm valve size it delivers 1300 l/min.

Benefits

  • Flow and switching time: 1300 l/min at valve size 18 mm, switches on in 13 ms and off in 57 ms.
  • Cleanroom: Class 5 to ISO 14644-1.
  • Pressure range: 3 to 8 bar operating pressure.
  • Protection: Degree of protection IP40, ambient -5 to 50 °C.
  • Coil: 24 V DC: 0.8 W, duty cycle 100 %.

Application

Use the VUVG-L18-M52-MT-G14-1H2L-F1A to control double-acting actuators directly. Internal pilot air from port 1. Manual override detenting, non-detenting, concealed. Installation on manifold rail, with through-hole, product weight 154 g. Operating medium compressed air to ISO 8573-1:2010 [7:4:4]. Media temperature -5 to 50 °C, ambient -5 to 50 °C. Once lubricated, lubrication must continue. Suitable for battery production (F1a, low Cu/Zn/Ni).

Technical data

TypeVUVG-L18-M52-MT-G14-1H2L-F1A
Festo part number8172836
Valve function5/2-way, single solenoid
Type of actuationElectrical
Valve size18 mm
Standard nominal flow rate (to DIN 1343)1300 l/min
Pneumatic working portG1/4
Operating voltage24 V DC
Operating pressure3 to 8 bar
DesignPiston spool
Type of resetMechanical spring
ApprovalRCM Mark, c UL us - Recognized (OL)
Certificate issuing authorityUL MH19482
Degree of protectionIP40
Nominal size6.9 mm
Exhaust-air functionCan be throttled
Sealing principleSoft
Mounting positionAny
Manual overrideDetenting, non-detenting, concealed
Type of pilotingPiloted
Pilot air supplyInternal
OverlapIndeterminate overlap
Pilot pressure3 to 8 bar
Suitability for vacuumNo
Switching time off57 ms
Switching time on13 ms
Duty cycle100 %
Maximum positive test pulse with 0 signal700 µs
Maximum negative test pulse with 1 signal900 µs
Characteristic coil data24 V DC: 0.8 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (then required for further operation)
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Restrictions for ambient and media temperature-5 - 50 °C, without holding current reduction
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured to ISO 14644-14Class 5 to ISO 14644-1
Storage temperature-20 to 60 °C
Media temperature-5 to 50 °C
Ambient temperature-5 to 50 °C
Product weight154 g
Electrical connectionPlug
Type of mountingOn manifold rail, with through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material sealsHNBR, NBR
Material housingWrought aluminium alloy
Material screwsCoated steel
Weight0.155 kg
ManufacturerFesto
Hersteller-NrVUVG-L18-M52-MT-G14-1H2L-F1A
EAN4052568617882
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium
ThreadG 1/4
Nominal size DN [mm]6,9
Seal materialHNBR, NBR
Housing materialAluminium
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]1300
Actuation typeElectrical
Medientemperatur [°C]-5 bis 50
SeriesVUVG
Betriebsdruck max [bar]8
Pneumatic connectionG1/4
Protection ratingIP40
Temperature (max.)50
